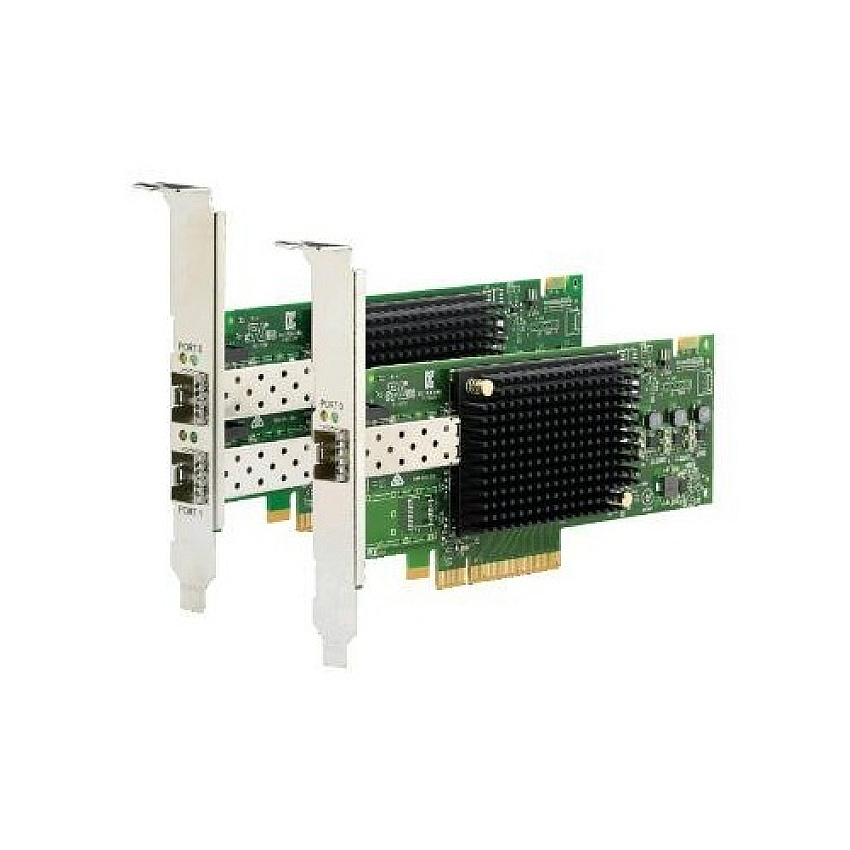

Lenovo Emulex 16gb Fc Single-port Hba (01CV830)
Model: 01CV830
Lenovo Emulex 16gb Fc Single-port Hba (01CV830)
Model: 01CV830
-
EMULEX 16GB FC SINGLE-PORT HBA
-
Special order arrives within 3-7 weeks.
Product Description
Emulex 16Gb FC Single-port HBA
Product Specs
Manufacturer
LenovoManufacturer Stock No.
01CV830MPN
LES01CV830Model#
01CV830UPC Code
889488417339UNSPSC Code
0Information
Product Description: Emulex 16Gb (Gen 6) FC Single-port HBA - host bus adapter - PCIe 3.0 x8 - 16Gb Fibre ChannelDevice Type: Host bus adapter
Form Factor: Plug-in card - low profile
Interface (Bus) Type: PCI Express 3.0 x8
Ports: 16Gb Fibre Channel
Dimensions (WxDxH): 6.6 in x 2.7 in
Data Link Protocol: 4Gb Fibre Channel, 8Gb Fibre Channel, 16Gb Fibre Channel
Data Transfer Rate: 14.025 Gbps
Performance: Maximum IOPS: 1600000
Processor: 1 x Emulex
System Requirements: Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, SuSE Linux Enterprise Server 12, VMware vSphere 5.5 update 2, SuSE Linux Enterprise Server 12 SP1, SuSE Linux Enterprise Server 11 SP4 for AMD64/EM64T, SuSE Linux Enterprise Server 11 SP3 for AMD64/EM64T, VMware vSphere 5.5 update 3, VMware vSphere 6.0 update 1, VMware vSphere 6.0 update 2, Red Hat Enterprise Linux 7 Update 2, Red Hat Enterprise Linux 7 Update 1, Red Hat Linux Enterprise Server 6 Update 7 x64 Edition
Manufacturer Warranty: 1-year warranty
Designed For: NeXtScale nx360 M5; System x3500 M5; x3550 M5; x3650 M5; x3750 M4; x3850 X6; x3950 X6; ThinkSystem SR250; SR530; SR590; SR630; SR630 V2; SR645; SR650; SR650 V2; SR665; SR850 V2; ST250; ST550; ST650 V2
Device Type: Host bus adapter
Form Factor: Plug-in card - low profile
Interface (Bus) Type: PCI Express 3.0 x8
Ports: 16Gb Fibre Channel
Connectivity Technology: Wired
Data Link Protocol: 4Gb Fibre Channel, 8Gb Fibre Channel, 16Gb Fibre Channel
Fibre Channel: FC-DA, FC-FS, FC-GS-2, FC-GS-3, FC-GS-4, FC-MI, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-Tape, FCP-4, FCP-2, FC-PI-2, FC-GS-5, FCP-3, FC-PI-4, FC-FS-3, FC-GS-6, FC-PI-3, FC-HBA, FC-PI-5, FC-LS-2, FC-DA-2, SSC-2, SBC-2, SPC-3, FC-PI-6, SBC-3, SPC-4, SSC-4
Data Transfer Rate: 14.025 Gbps
Performance: Maximum IOPS: 1600000
Features: QoS, SR-IOV, FEC, MSI-X
Processor: 1 x Emulex
Interfaces: 1 x 16Gb Fibre Channel - SFP+
Included Accessories: Low-profile bracket, full-height bracket, 16 Gb shortwave Fibre Channel SFP+ LC transceiver
MTBF: 10,000,000 hour(s)
Compliant Standards: ICES-003 Class A, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07, FCC Part 15 A, BSMI Class A, VCCI Class A, MSIP Class A, China RoHS, RCM, RoHS 2011/65/EU, EN55022: 2010 Class A, AS/NZS CISPR22: 2009+A1 Class A, EN 55024: 2010, EN 55032: 2012, EN60950-1+A11+A1+A12+A2
OS Required: Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, SuSE Linux Enterprise Server 12, VMware vSphere 5.5 update 2, SuSE Linux Enterprise Server 12 SP1, SuSE Linux Enterprise Server 11 SP4 for AMD64/EM64T, SuSE Linux Enterprise Server 11 SP3 for AMD64/EM64T, VMware vSphere 5.5 update 3, VMware vSphere 6.0 update 1, VMware vSphere 6.0 update 2, Red Hat Enterprise Linux 7 Update 2, Red Hat Enterprise Linux 7 Update 1, Red Hat Linux Enterprise Server 6 Update 7 x64 Edition
Depth: 6.6 in
Height: 2.7 in
Service & Support: Limited warranty - 1 year
Min Operating Temperature: 32 °F
Max Operating Temperature: 131 °F
Humidity Range Operating: 5 - 95% (non-condensing)
Designed For: Lenovo NeXtScale nx360 M5 5465 ¦ Lenovo System x3500 M5 5464 ¦ Lenovo System x3550 M5 5463, 8869 ¦ Lenovo System x3650 M5 5462, 8871 ¦ Lenovo System x3750 M4 8753 ¦ Lenovo System x3850 X6 6241 ¦ Lenovo System x3950 X6 6241 ¦ Lenovo ThinkSystem SR250 ¦ Lenovo ThinkSystem SR530 7X08 ¦ Lenovo ThinkSystem SR590 ¦ Lenovo ThinkSystem SR630 7X02 ¦ Lenovo ThinkSystem SR630 V2 7Z71 ¦ Lenovo ThinkSystem SR645 7D2X ¦ Lenovo ThinkSystem SR650 7X06 ¦ Lenovo ThinkSystem SR650 V2 7D15, 7Z73 ¦ Lenovo ThinkSystem SR665 7D2V, 7D2W ¦ Lenovo ThinkSystem SR850 V2 7D32 ¦ Lenovo ThinkSystem ST250 ¦ Lenovo ThinkSystem ST550 7X10 ¦ Lenovo ThinkSystem ST650 V2 7Z74, 7Z75
COO: MEXICO
TAA compliance: Yes
