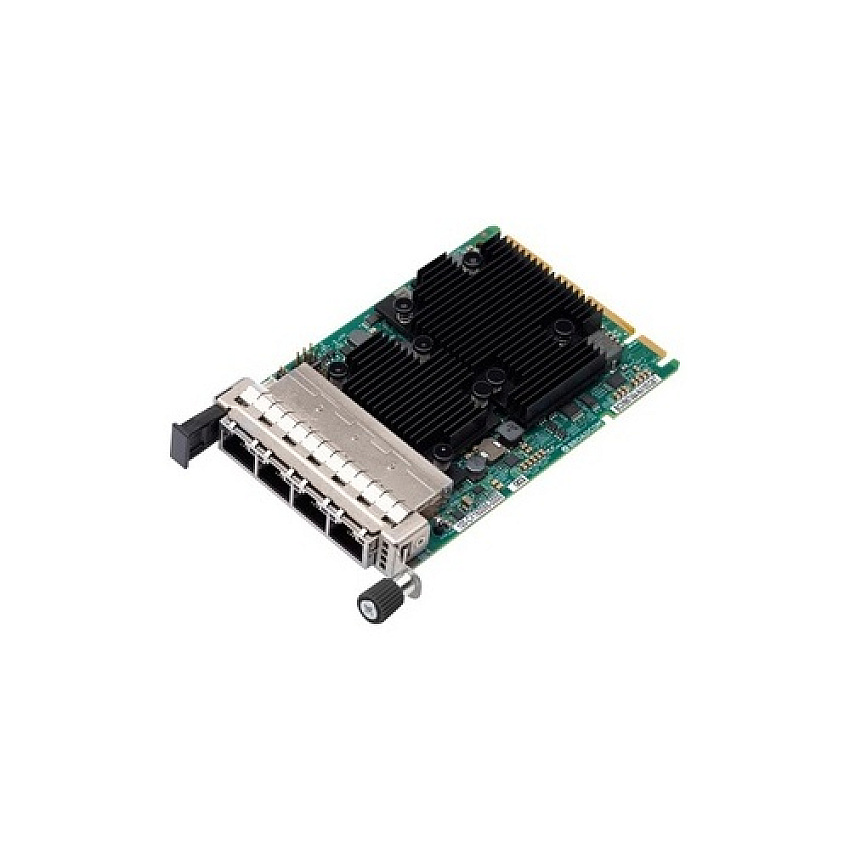

Lenovo 57454 10gb 4port Ocp (4XC7A08240)
Model: 4XC7A08240
Lenovo 57454 10gb 4port Ocp (4XC7A08240)
Model: 4XC7A08240
-
57454 10GB 4PORT OCP
-
Out Of Stock
Product Description
Gigabit Ethernet - Plug-In Card - PCI Express 3.0 x16 - Gigabit Ethernet
Product Specs
Manufacturer
LenovoCategories
Lenovo Computer AccessoriesLenovo Networking, Cables & AccessoriesLenovo Network AdaptersManufacturer Stock No.
4XC7A08240MPN
LES4XC7A08240Model#
4XC7A08240UPC Code
889488497324UNSPSC Code
0Information
Product Description: Lenovo ThinkSystem Broadcom 57454 - network adapter - OCP 3.0 - 10Gb Ethernet x 4Device Type: Network adapter
Interface (Bus) Type: Open Compute Project mezzanine (OCP) 3.0
Ports: 10Gb Ethernet x 4
Dimensions (WxDxH): 4.5 in x 3 in
Cabling Type: Ethernet 1000Base-T, Ethernet 10GBase-T
Data Link Protocol: 1GbE, 10GbE
Data Transfer Rate: 10 Gbps
Capacity: Jumbo frame size: 9600
Network / Transport Protocol: TCP/IP
Processor: 1 x Broadcom BCM57454
Compliant Standards: IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.1Qbg, IEEE 1588-2008
Manufacturer Warranty: 1-year warranty
Designed For: ThinkAgile HX5530 Appliance; HX5531 Certified Node; HX7530 Appliance; HX7531 Certified Node; VX2330 Appliance; VX3330 Appliance; VX3331; VX3530-G Appliance; VX3575-G Integrated System; VX5530 Appliance; VX5575 Integrated System; VX7330-N Appliance; VX7530 Appliance; VX75XX Certified Node
Device Type: Network adapter
Interface (Bus) Type: Open Compute Project mezzanine (OCP) 3.0
Ports: 10Gb Ethernet x 4
Connectivity Technology: Wired
Cabling Type: Ethernet 1000Base-T, Ethernet 10GBase-T
Data Link Protocol: Gigabit Ethernet, 10 Gigabit Ethernet
Data Transfer Rate: 10 Gbps
Capacity: Jumbo frame size: 9600
Network / Transport Protocol: TCP/IP
Features: WOL, PXE support, LSO, LRO, RSS, DCB, TSO, MSI-X, EVB, Accelerated RFS, TSS, RoCE, PFC, NC-SI, Link Aggregation, RoCE v2, FLR, SDN, VLAN Tagging, NFV, TruFlow, ETS, SMBus 2.0, flow acceleration
Compliant Standards: IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.1Qbg, IEEE 1588-2008
Processor: 1 x Broadcom BCM57454
Interfaces: 4 x 10GBase-T - RJ-45
Included Accessories: Low-profile bracket
Compliant Standards: BSMI CNS 13438 Class B, ICES-003, RRL, CSA 22.2 No. 950, ICES-003 Class B, EN55024 Class B, UL 60950-1, EN 60950-1, FCC CFR47 Part 15 B, cTUVus, UL 94, KN22, KN24, EN 55022: 2010+AC: 2011 Class B, UL 1977, UL 796, CNS 14336 Class B
Depth: 4.5 in
Height: 3 in
Service & Support: Limited warranty - 1 year
Min Operating Temperature: 32 °F
Max Operating Temperature: 131 °F
Humidity Range Operating: 5 - 95% (non-condensing)
Designed For: Lenovo ThinkAgile HX5530 Appliance 7Z82 ¦ Lenovo ThinkAgile HX5531 Certified Node 7Z84 ¦ Lenovo ThinkAgile HX7530 Appliance 7Z82 ¦ Lenovo ThinkAgile HX7531 Certified Node 7Z84 ¦ Lenovo ThinkAgile VX2330 Appliance 7Z62 ¦ Lenovo ThinkAgile VX3330 Appliance 7Z62 ¦ Lenovo ThinkAgile VX3331 7Z62 ¦ Lenovo ThinkAgile VX3530-G Appliance 7Z63 ¦ Lenovo ThinkAgile VX3575-G Integrated System 7D43 ¦ Lenovo ThinkAgile VX5530 Appliance 7Z63 ¦ Lenovo ThinkAgile VX5575 Integrated System 7D43 ¦ Lenovo ThinkAgile VX7330-N Appliance 7Z62 ¦ Lenovo ThinkAgile VX7530 Appliance 7Z63 ¦ Lenovo ThinkAgile VX7531 Certified Node 7Z63 ¦ Lenovo ThinkAgile VX7575 Integrated System 7D43 ¦ Lenovo ThinkAgile VX7576 Certified Node 7D43 ¦ Lenovo ThinkSystem SR630 V2 7Z71 ¦ Lenovo ThinkSystem SR645 7D2X, 7D2Y ¦ Lenovo ThinkSystem SR650 V2 7D15, 7Z73 ¦ Lenovo ThinkSystem SR665 7D2V, 7D2W ¦ Lenovo ThinkSystem SR850 V2 7D32
COO: Inquire
TAA compliance: Inquire
Unit of Measure
Item Weight
0.6Ships via UPS
