Lenovo 57454 10gb 4p Pcie (4XC7A08245)
Model: 4XC7A08245
Lenovo 57454 10gb 4p Pcie (4XC7A08245)
Model: 4XC7A08245
-
57454 10GB 4P PCIE
-
Out Of Stock
Product Description
Gigabit Ethernet - Plug-In Card - PCI Express 3.0 x8 - Gigabit Ethernet
Product Specs
Manufacturer
LenovoCategories
Lenovo Computer AccessoriesLenovo Networking, Cables & AccessoriesLenovo Network AdaptersManufacturer Stock No.
4XC7A08245MPN
LES4XC7A08245Model#
4XC7A08245UPC Code
889488497355UNSPSC Code
0Information

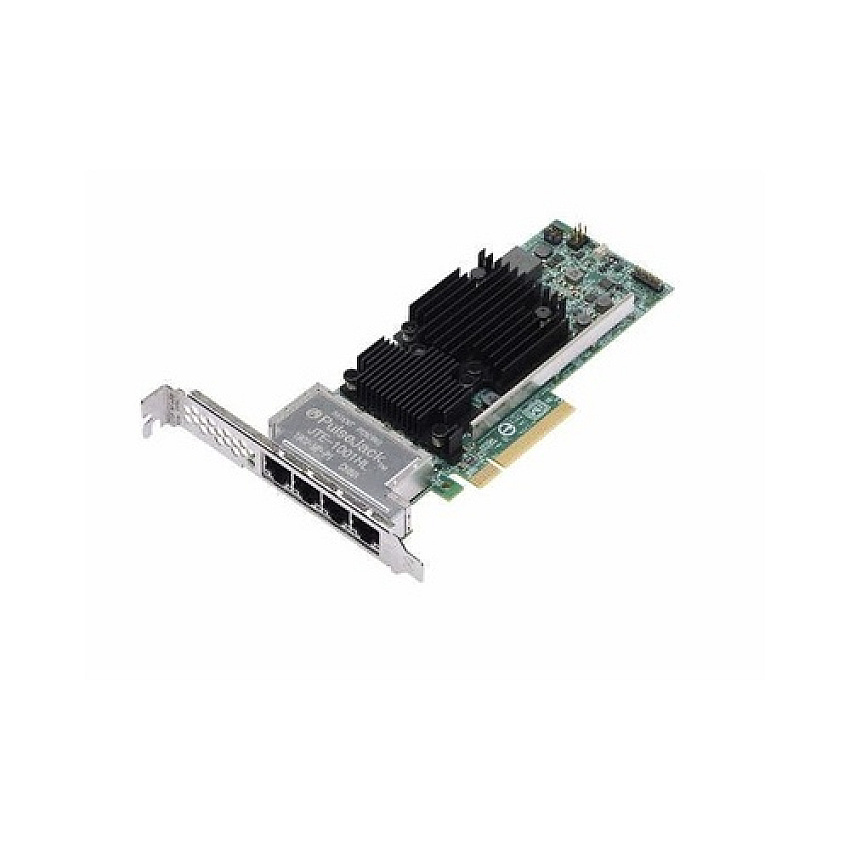

Product Description: Lenovo ThinkSystem Broadcom 57454 - network adapter - PCIe 3.0 x8 - 10Gb Ethernet x 4Device Type: Network adapter
Form Factor: Low profile
Interface (Bus) Type: PCI Express 3.0 x8
PCI Specification Revision: PCIe 3.0
Ports: 10Gb Ethernet x 4
Dimensions (WxDxH): 6.6 in x 2.5 in
Cabling Type: Ethernet 1000Base-T, Ethernet 10GBase-T
Data Link Protocol: GigE, 10 GigE
Data Transfer Rate: 10 Gbps
Capacity: Jumbo frame size: 9600
Network / Transport Protocol: TCP/IP
Processor: 1 x Broadcom BCM57454
Compliant Standards: IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.1Qbg, IEEE 1588-2008
Manufacturer Warranty: 1-year warranty
Designed For: ThinkAgile HX7530 Appliance; HX7531 Certified Node; VX2330 Appliance; VX3330 Appliance; VX3331; VX3530-G Appliance; VX3575-G Integrated System; VX5530 Appliance; VX5575 Integrated System; VX7330-N Appliance; VX7530 Appliance; VX7575 Integrated System; VX7576 Certified Node; ThinkSystem SR650 V2
Device Type: Network adapter
Form Factor: Low profile
Interface (Bus) Type: PCI Express 3.0 x8
PCI Specification Revision: PCIe 3.0
Ports: 10Gb Ethernet x 4
Connectivity Technology: Wired
Cabling Type: Ethernet 1000Base-T, Ethernet 10GBase-T
Data Link Protocol: Gigabit Ethernet, 10 Gigabit Ethernet
Data Transfer Rate: 10 Gbps
Capacity: Jumbo frame size: 9600
Network / Transport Protocol: TCP/IP
Features: PXE support, Large Send Offload (LSO), Large Receive Offload (LRO), Receive Side Scaling (RSS), Data Center Bridging (DCB), TCP Segmentation Offload (TSO), Extended Message-Signaled Interrupts (MSI-X), Edge Virtual Bridging (EVB), Accelerated Receive Flow Steering (RFS), Transmit Side Scaling (TSS), RDMA over Converged Ethernet (RoCE), Priority-Based Flow Control (PFC), Link Aggregation, RDMA over Converged Ethernet (RoCE) v2, Function Level Reset (FLR), Software Defined Networking (SDN), VLAN Tagging, Network Function Virtualization (NFV), TruFlow, Enhanced transmission selection (ETS), SMBus 2.0, flow acceleration
Compliant Standards: IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.1Qbg, IEEE 1588-2008
Processor: 1 x Broadcom BCM57454
Interfaces: 4 x 10GBase-T - RJ-45
Included Accessories: Low-profile bracket
Compliant Standards: BSMI CNS 13438 Class B, ICES-003, RRL, CSA 22.2 No. 950, ICES-003 Class B, EN55024 Class B, UL 60950-1, EN 60950-1, FCC CFR47 Part 15 B, cTUVus, UL 94, KN22, KN24, EN 55022: 2010+AC: 2011 Class B, UL 1977, UL 796, CNS 14336 Class B
Depth: 6.6 in
Height: 2.5 in
Service & Support: Limited warranty - 1 year
Min Operating Temperature: 32 °F
Max Operating Temperature: 131 °F
Humidity Range Operating: 5 - 95% (non-condensing)
Designed For: Lenovo ThinkAgile HX7530 Appliance 7Z82 ¦ Lenovo ThinkAgile HX7531 Certified Node 7Z84 ¦ Lenovo ThinkAgile VX2330 Appliance 7Z62 ¦ Lenovo ThinkAgile VX3330 Appliance 7Z62 ¦ Lenovo ThinkAgile VX3331 7Z62 ¦ Lenovo ThinkAgile VX3530-G Appliance 7Z63 ¦ Lenovo ThinkAgile VX3575-G Integrated System 7D43 ¦ Lenovo ThinkAgile VX5530 Appliance 7Z63 ¦ Lenovo ThinkAgile VX5575 Integrated System 7D43 ¦ Lenovo ThinkAgile VX7330-N Appliance 7Z62 ¦ Lenovo ThinkAgile VX7530 Appliance 7Z63 ¦ Lenovo ThinkAgile VX7575 Integrated System 7D43 ¦ Lenovo ThinkAgile VX7576 Certified Node 7D43 ¦ Lenovo ThinkSystem SR630 V2 7Z71 ¦ Lenovo ThinkSystem SR635 7Y98, 7Y99 ¦ Lenovo ThinkSystem SR645 7D2X, 7D2Y ¦ Lenovo ThinkSystem SR650 V2 7D15, 7Z73 ¦ Lenovo ThinkSystem SR655 7Y00, 7Z01 ¦ Lenovo ThinkSystem SR665 7D2V, 7D2W ¦ Lenovo ThinkSystem SR850 V2 7D31, 7D32, 7D33 ¦ Lenovo ThinkSystem SR860 V2 7D42, 7Z59, 7Z60 ¦ Lenovo ThinkSystem ST650 V2 7Z74, 7Z75
