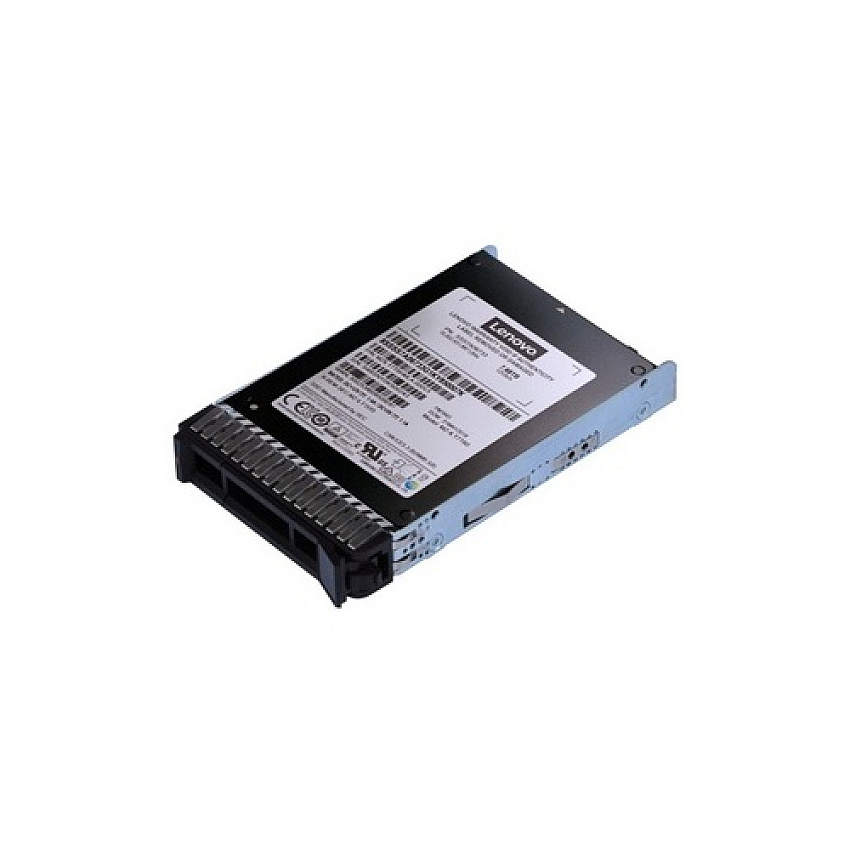

Lenovo 2.5 Pm1643a 7.68tb En Sas Ssd (4XB7A17055)
Model: 4XB7A17055
Lenovo 2.5 Pm1643a 7.68tb En Sas Ssd (4XB7A17055)
Model: 4XB7A17055
-
2.5 PM1643A 7.68TB EN SAS SSD
-
Special order arrives within 3-7 weeks.
Product Description
PM1643a - 7.68TB - SAS 12 Gb/s - 2.5 - 12Gbps - one-year limited warranty
Product Specs
Manufacturer
LenovoManufacturer Stock No.
4XB7A17055MPN
LES4XB7A17055Model#
4XB7A17055UPC Code
889488510924UNSPSC Code
0Information
Product Description: Lenovo ThinkSystem PM1643a Entry - SSD - 7.68 TB - SAS 12Gb/sType: Solid state drive - hot-swap
Capacity: 7.68 TB
NAND Flash Memory Type: Triple-level cell (TLC)
Form Factor: 2.5"
Interface: SAS 12Gb/s
Data Transfer Rate: 1.2 GBps
Features: Tagged Command Queuing (TCQ), End-to-end data protection, V-NAND Technology, power loss data protection, S.M.A.R.T.
Dimensions (WxDxH): 2.8 in x 3.9 in x 0.6 in
Weight: 5.57 oz
Manufacturer Warranty: 1-year warranty
Designed For: ThinkAgile HX1330 Appliance; HX1331 Certified Node; HX2330 Appliance; HX2331 Certified Node; HX33XX Appliance; HX33XX Certified Node; HX5530 Appliance; HX5531 Certified Node; HX7530 Appliance; HX7531 Certified Node; MX3330-F Appliance; MX3331-F Certified Node; ThinkAgile VX Certified Node 7Y94, 7Z12; ThinkAgile VX3331; VX33XX Appliance; VX3530-G Appliance; VX3575-G Integrated System; VX3720 Appliance; VX5575 Integrated System; VX7575 Integrated System; VX75XX Appliance; VX75XX Certified Node; VX7820 Appliance; ThinkSystem SD530; SN550; SN850; SR530; SR550; SR570; SR590; SR630; SR630 V2; SR635; SR650; SR650 V2; SR655; SR665; SR850; SR860; SR950; ST550
Device Type: Solid state drive - hot-swap
Capacity: 7.68 TB
NAND Flash Memory Type: Triple-level cell (TLC)
Form Factor: 2.5"
Interface: SAS 12Gb/s
Features: Tagged Command Queuing (TCQ), End-to-end data protection, V-NAND Technology, power loss data protection, S.M.A.R.T.
Width: 2.8 in
Depth: 3.9 in
Height: 0.6 in
Weight: 5.57 oz
Drive Writes Per Day (DWPD): 1
SSD Endurance: 14016 TB
Drive Transfer Rate: 1.2 GBps (external)
Internal Data Rate: 1000 MBps (read) / 1000 MBps (write)
4KB Random Read: 230000 IOPS
4KB Random Write: 90000 IOPS
Average Latency: 220 us
MTBF: 2,000,000 hours
Non-Recoverable Errors: 1 per 10^17
Interfaces: 1 x SAS 12 Gb/s
Compatible Bay: 2.5"
Power Consumption: 9 Watt (read) ¦ 12 Watt (write)
Compliant Standards: UL, TUV, VCCI, C-Tick, BSMI, CB, IC, FCC, RoHS, KCC
Shipping Width: 5.2 in
Shipping Depth: 6.9 in
Shipping Height: 2.5 in
Service & Support: Limited warranty - replacement - 1 year
Min Operating Temperature: 32 °F
Max Operating Temperature: 158 °F
Humidity Range Operating: 5 - 95% (non-condensing)
Shock Tolerance (non-operating): 1500 g @ 0.5 ms
Vibration Tolerance (non-operating): 20 g @ 10-2000 Hz
Designed For: Lenovo ThinkAgile HX1330 Appliance 7Z85 (2.5") ¦ Lenovo ThinkAgile HX1331 Certified Node 7D52 (2.5") ¦ Lenovo ThinkAgile HX2330 Appliance 7Z85 (2.5") ¦ Lenovo ThinkAgile HX2331 Certified Node 7D52 (2.5") ¦ Lenovo ThinkAgile HX3330 Appliance 7Z85 (2.5") ¦ Lenovo ThinkAgile HX3331 Certified Node 7D52 (2.5") ¦ Lenovo ThinkAgile HX3375 Appliance 7D5U (2.5") ¦ Lenovo ThinkAgile HX3376 Certified Node 7D5U (2.5") ¦ Lenovo ThinkAgile HX5530 Appliance 7Z82 (2.5") ¦ Lenovo ThinkAgile HX5531 Certified Node 7Z84 (2.5") ¦ Lenovo ThinkAgile HX7530 Appliance 7Z82 (2.5") ¦ Lenovo ThinkAgile HX7531 Certified Node 7Z84 (2.5") ¦ Lenovo ThinkAgile MX3330-F Appliance 7D19 (2.5") ¦ Lenovo ThinkAgile MX3331-F Certified Node 7D67 (2.5") ¦ Lenovo ThinkAgile VX Certified Node 7Y94 (2.5"), 7Z12 (2.5") ¦ Lenovo ThinkAgile VX3320 Appliance 7Y93 (2.5") ¦ Lenovo ThinkAgile VX3330 Appliance 7Z62 (2.5") ¦ Lenovo ThinkAgile VX3331 7Z62 (2.5") ¦ Lenovo ThinkAgile VX3530-G Appliance 7Z63 (2.5") ¦ Lenovo ThinkAgile VX3575-G Integrated System 7D43 (2.5") ¦ Lenovo ThinkAgile VX3720 Appliance 7Y92 (2.5") ¦ Lenovo ThinkAgile VX5575 Integrated System 7D43 (2.5") ¦ Lenovo ThinkAgile VX7520 Appliance 7Y94 (2.5") ¦ Lenovo ThinkAgile VX7530 Appliance 7Z63 (2.5") ¦ Lenovo ThinkAgile VX7531 Certified Node 7Z63 (2.5") ¦ Lenovo ThinkAgile VX7575 Integrated System 7D43 (2.5") ¦ Lenovo ThinkAgile VX7576 Certified Node 7D43 (2.5") ¦ Lenovo ThinkAgile VX7820 Appliance 7Z13 (2.5") ¦ Lenovo ThinkSystem SR530 7X08 (2.5") ¦ Lenovo ThinkSystem SR570 7Y02 (2.5") ¦ Lenovo ThinkSystem SR630 V2 7Z71 (2.5") ¦ Lenovo ThinkSystem SR635 7Y98 (2.5"), 7Y99 (2.5") ¦ Lenovo ThinkSystem SR650 V2 7D15 (2.5"), 7Z73 (2.5") ¦ Lenovo ThinkSystem SR655 7Y00 (2.5"), 7Z01 (2.5") ¦ Lenovo ThinkSystem SR665 7D2W (2.5") ¦ Lenovo ThinkSystem SR850P 7D2F (2.5"), 7D2G (2.5"), 7D2H (2.5") ¦ Lenovo ThinkSystem SR950 7X11 (2.5"), 7X12 (2.5"), 7X13 (2.5")
COO: Inquire
TAA compliance: Inquire
