HP e Ib Hdr/en 200gb 2p Qsfp56 Adptr (P31324B21)
Model: P31324B21
HP e Ib Hdr/en 200gb 2p Qsfp56 Adptr (P31324B21)
Model: P31324B21
-

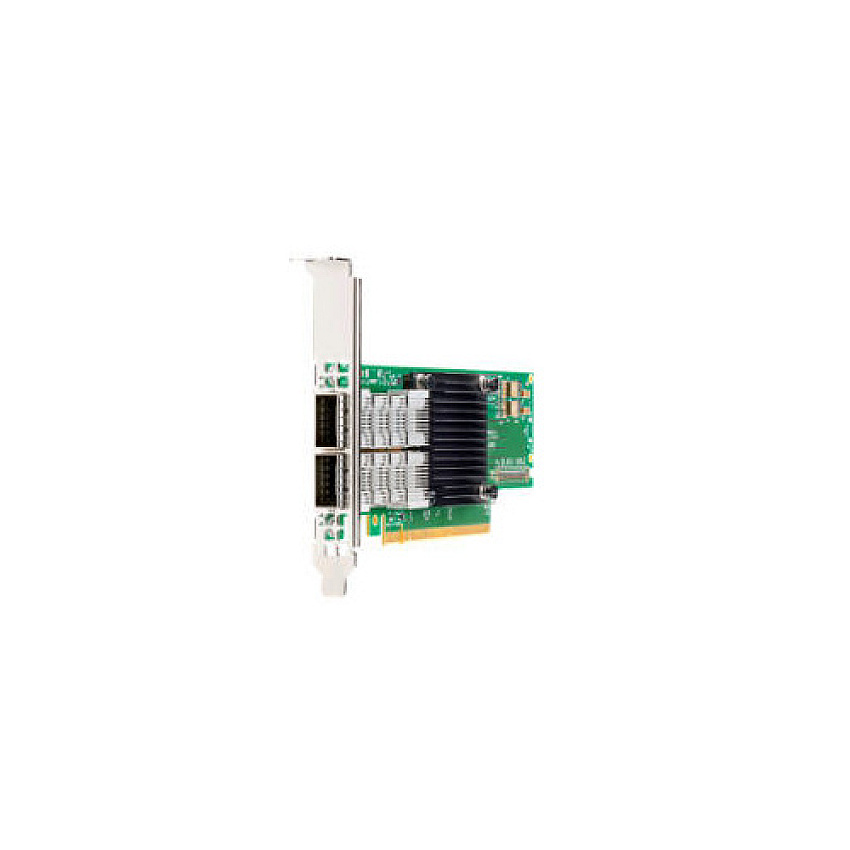

HPE IB HDR/EN 200GB 2P QSFP56 ADPTR
-
Out Of Stock
Product Description
HPE IB HDR/EN 200Gb 2p QSFP56 Adptr
Product Specs
Manufacturer
HPManufacturer Stock No.
P31324-B21MPN
HPEP31324B21Model#
P31324B21UPC Code
190017485621UNSPSC Code
0Information
Product Description: HPE InfiniBand HDR MCX653106A-HDAT - network adapter - PCIe 4.0 x16 - 200Gb Ethernet / 200Gb Infiniband QSFP56 x 2Device Type: Network adapter
Form Factor: Plug-in card - low profile
Interface (Bus) Type: PCI Express 4.0 x16
PCI Specification Revision: PCIe 1.1, PCIe 2.0, PCIe 3.0, PCIe 4.0
Ports: 200Gb Ethernet / 200Gb Infiniband QSFP56 x 2
Data Link Protocol: 1GbE, 10GbE, 40GbE, 100GbE, 25GbE, 50GbE, 100 Gigabit InfiniBand, 200GbE, 200 Gigabit InfiniBand
Data Transfer Rate: 200 Gbps
Compliant Standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IBTA 1.3, IEEE 802.1Qbg, IEEE 1588v2, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by
System Requirements: FreeBSD, Microsoft Windows, Red Hat Enterprise Linux, CentOS
Manufacturer Warranty: 3-year warranty
Designed For: Nimble Storage dHCI Medium Solution with HPE ProLiant DL325 Gen10; ProLiant DL325 Gen10, DL345 Gen10, DL365 Gen10, DL380 Gen10, DL385 Gen10
Device Type: Network adapter
Form Factor: Plug-in card - low profile
Interface (Bus) Type: PCI Express 4.0 x16
PCI Specification Revision: PCIe 1.1, PCIe 2.0, PCIe 3.0, PCIe 4.0
Ports: 200Gb Ethernet / 200Gb Infiniband QSFP56 x 2
Connectivity Technology: Wired
Data Link Protocol: Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet, 100 Gigabit InfiniBand, 200 Gigabit Ethernet, 200 Gigabit InfiniBand
Data Transfer Rate: 200 Gbps
Features: Auto-negotiation, MPLS support, VLAN support, InfiniBand QDR Link support, VPI, QoS, InfiniBand DDR Link support, Jumbo Frames support, PXE support, LSO, LRO, RSS, UEFI support, InfiniBand FDR Link support, congestion control, AER, MSI-X, HDS, TSS, RoCE, InfiniBand EDR Link support, TPH, InfiniBand SDR Link support, XRC transport, DCT, UMR, ODP, MSI, InfiniBand HDR100 Link support
Compliant Standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IBTA 1.3, IEEE 802.1Qbg, IEEE 1588v2, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by
Interfaces: 2 x 200Gb Ethernet / 200Gb Infiniband - QSFP56
Compliant Standards: CISPR 22 Class A, EN55024, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, IEC 60068-2-32, RoHS, IEC 60068-2-29, IEC 60068-2-64, KC, VCCI Class A, AS/NZS CISPR 22, EN 55022 Class A, FCC CFR47 Part 15 A, RCM Class A, CAN/CSA-C22.2 No. 60950-1
OS Required: FreeBSD, Microsoft Windows, Red Hat Enterprise Linux, CentOS
Service & Support: Limited warranty - parts - 3 years
Min Operating Temperature: 32 °F
Max Operating Temperature: 131 °F
Humidity Range Operating: 5 - 95% (non-condensing)
Designed For: HPE Nimble Storage dHCI Medium Solution with HPE ProLiant DL325 Gen10 Plus ¦ HPE ProLiant DL325 Gen10 Plus, DL325 Gen10 Plus All-NVMe Flash Node for Qumulo, DL325 Gen10 Plus All-NVMe Flash Node for Software Defined Storage, DL325 Gen10 Plus for Weka Expansion Tracking, DL325 Gen10 Plus V2, DL325 Gen10 Plus V2 Base, DL325 Gen10 Plus V2 for Weka Base Tracking, DL325 Gen10 Plus V2 Performance, DL345 Gen10 Plus Base, DL365 Gen10 Plus, DL380 Gen10 Plus, DL380 Gen10 Plus Network Choice, DL385 Gen10 Plus, DL385 Gen10 Plus Entry
COO: ISRAEL / TAIWAN
Unit of Measure
Item Weight
0.75Ships via UPS
YBrand
HP
$1,349.49
$1,554.00
$51,925.63
$59,795.00
