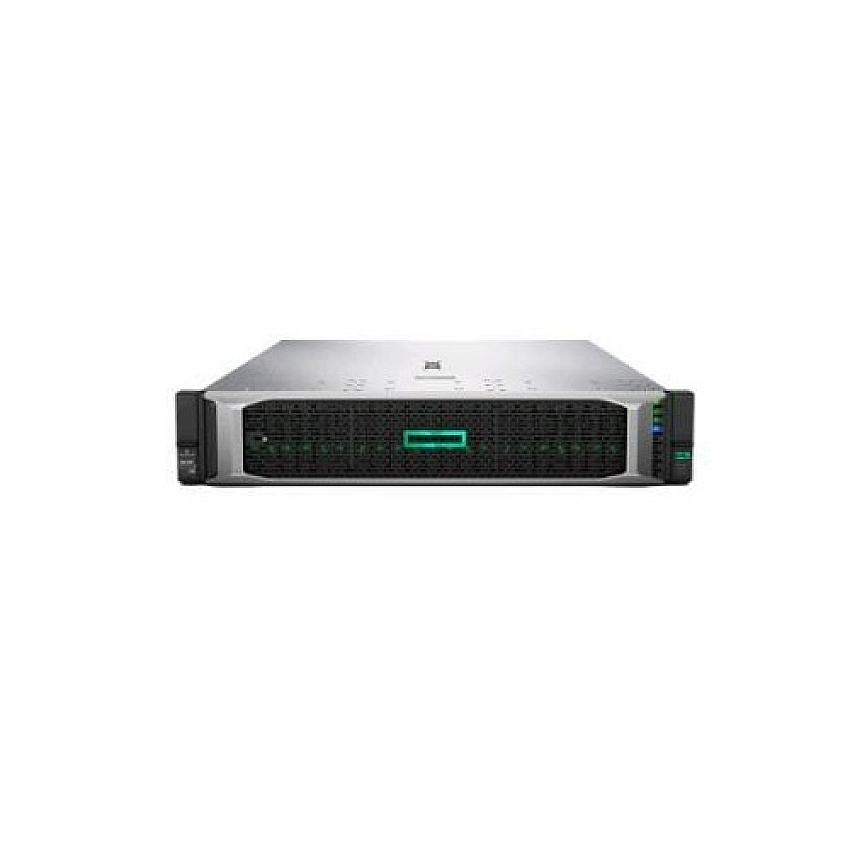

HP e Dl380 Gen10 6226r 1p 32g Nc 8sff Svr (P24846B21)
Model: P24846B21
HP e Dl380 Gen10 6226r 1p 32g Nc 8sff Svr (P24846B21)
Model: P24846B21
-
HPE DL380 GEN10 6226R 1P 32G NC 8SFF SVR
-
Out Of Stock
Product Description
HPE ProLiant DL380 Gen10 server - 2U - Intel Xeon 6226R 2.9GHz 16-Core 22MB - 32GB RDIMM DDR4 - 1 HPE Smart Array S100i - 1 HPE Ethernet 10Gb 2-port 562FLR-SFP+ FlexibleLOM Adapter (665240-B21) plus optional stand-up card NOTE: No embedded networking - 8
Product Specs
Manufacturer
HPManufacturer Stock No.
P24846-B21MPN
HPEP24846B21Model#
P24846B21UPC Code
190017446554UNSPSC Code
0Information
Product Description: HPE ProLiant DL380 Gen10 SMB Networking Choice - rack-mountable - AI Ready - Xeon Gold 6226R 2.9 GHz - 32 GB - no HDDType: Server - rack-mountable AI Ready
Height (Rack Units): 2U
Localization: Region: Worldwide (excluding China, Japan)
Server Scalability: 2-way
Processor: 1 x Intel Xeon Gold 6226R / 2.9 GHz (, up to 3.9 GHz, (16-core)
Processor Socket: FCLGA3647 Socket
Processor Main Features: Hyper-Threading Technology, Intel Turbo Boost Technology 2
Cache Memory: 22 MB L3 cache
Cache Per Processor: 22 MB
RAM: 32 GB (installed) / 1.5 TB (max) - DDR4 SDRAM - Advanced ECC - PC4-23466
Storage Controller: RAID (SATA 6Gb/s) - PCIe 3.0 x4 (HPE Smart Array S100i SR Software RAID)
Server Storage Bays: Hot-swap 2.5"
Hard Drive: No HDD
Optical Storage: No optical drive
Video Memory: 16 MB
Networking: 10GbE
Power: AC 120/230 V (50/60 Hz)
Power Redundancy: Optional
Dimensions (WxDxH): 17.5 in x 28.8 in x 3.4 in
Weight: 32.54 lbs
Environmental Standards: ENERGY STAR Qualified
Manufacturer Warranty: Limited warranty - parts and labor - 3 years - on-site
Type: Server - AI Ready
Product Form Factor: Rack-mountable - 2U
Server Scalability: 2-way
Hot-Swap Bays Qty: 8
Localization: Region: Worldwide (excluding China, Japan)
CPU: Intel Xeon Gold 6226R
Clock Speed: 2.9 GHz
Max Turbo Speed: 3.9 GHz
Number of Cores: 16-core
CPU Qty: 1
Max CPU Qty: 2
CPU Upgradability: Upgradable
Processor Main Features: Hyper-Threading Technology, Intel Turbo Boost Technology 2
CPU Socket: FCLGA3647 Socket
Chipset Type: Intel C621
Installed Size: L3 cache - 22 MB
Cache Per Processor: 22 MB
Installed Size: 32 GB (installed) / 1.5 TB (max)
Technology: DDR4 SDRAM - Advanced ECC
Effective Memory Speed: 2933 MHz
Rated Memory Speed: 2933 MHz
Memory Specification Compliance: PC4-23466
Form Factor: DIMM 288-pin
Slots: 24 (total) / 23 (empty)
Features: Registered, Online Spare Memory, mixing of different types of memory modules is not supported, slots 13 - 24 are available in two-processor configuration only, 6-channel memory architecture
Configuration Features: 1 x 32 GB
RAM Supported: 3 TB Load-Reduced - ECC ¦ 1.5 TB registered - ECC ¦ 192 GB Non-Volatile - ECC ¦ 6 TB - HPE Persistent Memory - Optane DC Persistent
Type: No HDD
Type: 1 x RAID - PCIe 3.0 x4
Controller Interface Type: SATA 6Gb/s
Storage Controller Name: HPE Smart Array S100i SR Software RAID
Channel Qty: 14
RAID Level: RAID 0, RAID 1, RAID 5, RAID 10
Type: No optical drive
Monitor Type: None.
Video Memory: 16 MB
Video Interfaces: VGA
Ethernet Ports: 2 x 10 Gigabit Ethernet
Ethernet Controller: HPE 562FLR-SFP+
Data Link Protocol: 10 Gigabit Ethernet
Remote Management Protocol: SNMP 3, IPMI 2.0, SMASH CLP
Remote Management Controller: Integrated Lights-Out 5
Features: Wake on LAN (WoL), PXE support
Bays: 8 (total) / 8 (free) x hot-swap 2.5" SFF
Slots: 1 (total) / 1 (free) x PCIe 3.0 x8 - full-length, full-height ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - full-length, full-height ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 - half-length, full-height ¦ 1 (total) / 0 (free) x FlexibleLOM ¦ 1 (total) / 1 (free) x microSD Card (internal)
Interfaces: 1 x VGA ¦ 2 x LAN (10Gigabit Ethernet) (SFP+) ¦ 1 x HPE iLO - RJ-45 ¦ 3 x USB 3.0 (1 front, 2 rear)
Included Accessories: Cable management arm, 4 standard fans, SFF Easy install rails
Compliant Standards: AES, TLS v1.2, low halogen, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1
Device Type: Power supply - hot-plug
Power Redundancy: Optional
Power Redundancy Scheme: 1+1 (with optional power supply)
Installed Qty: 1
Max Supported Qty: 2
Voltage Required: AC 120/230 V (50/60 Hz)
Power Provided: 800 Watt
80 PLUS Certification: 80 PLUS Platinum
OS Certified: CentOS, Microsoft Windows Server 2012 R2, VMware vSphere 6.0 (ESXi), SuSE Linux Enterprise Server 11 SP4, Microsoft Windows Server 2016, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 6.9, VMware vSphere 6.5, SuSE Linux Enterprise Server 12 SP2, ClearOS
ENERGY STAR Certified: Yes
ENERGY STAR Version: 3.0
Service & Support: Limited warranty - parts and labor - 3 years - on-site
Width: 17.5 in
Depth: 28.8 in
Height: 3.4 in
Weight: 32.54 lbs
Min Operating Temperature: 50 °F
Max Operating Temperature: 95 °F
Humidity Range Operating: 8 - 90% (non-condensing)
COO: CHINA / CZECHIA / MEXICO / SINGAPORE
