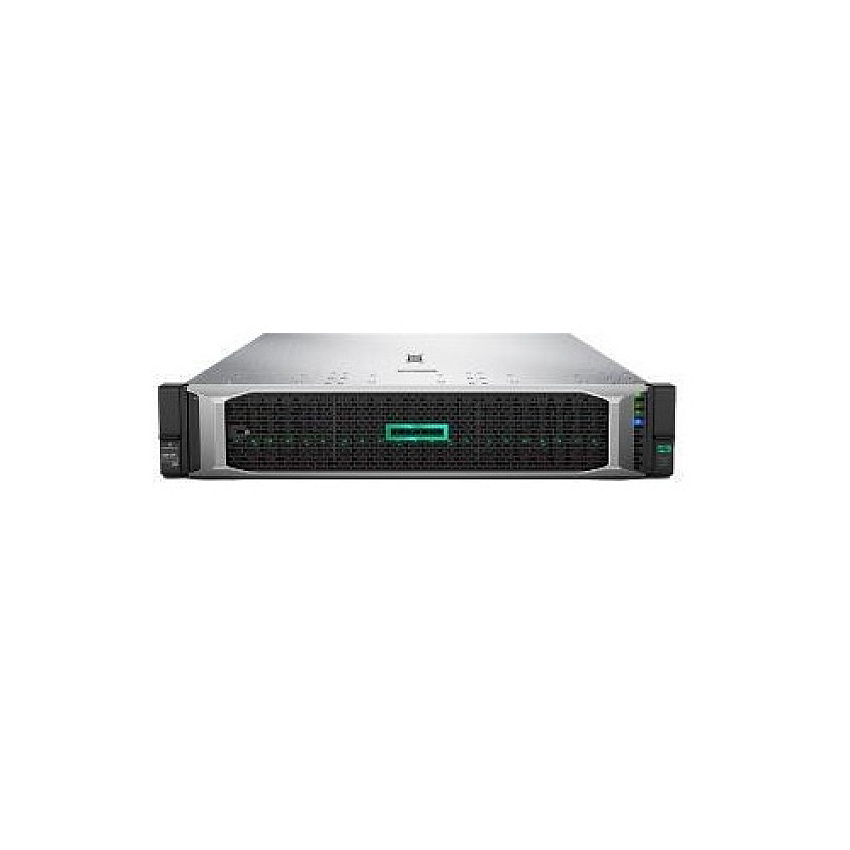

HP e Dl380 Gen10 5218 1p 32g Nc 8sff Svr (P20249B21)
Model: P20249B21
HP e Dl380 Gen10 5218 1p 32g Nc 8sff Svr (P20249B21)
Model: P20249B21
-
HPE DL380 GEN10 5218 1P 32G NC 8SFF SVR
-
Out Of Stock
Product Description
HPE ProLiant DL380 Gen10 server - 2U - Intel Xeon 4210R 2.4GHz 10-Core 13.75MB - 32GB RDIMM DDR4 - 1 HPE Smart Array P408i-a/2GB with Smart Storage Battery and 1 HPE Smart Array S100i - 1 HPE Ethernet 1Gb 4-port 366FLR FlexibleLOM Adapter (665240-B21) plu
Product Specs
Manufacturer
HPManufacturer Stock No.
P20249-B21MPN
HPEP20249B21Model#
P20249B21UPC Code
190017390000UNSPSC Code
0Information
Product Description: HPE ProLiant DL380 Gen10 - rack-mountable - AI Ready - Xeon Gold 5218 2.3 GHz - 32 GB - no HDDType: Server - rack-mountable AI Ready
Height (Rack Units): 2U
Server Scalability: 2-way
Processor: 1 x Intel Xeon Gold 5218 / 2.3 GHz (, up to 3.9 GHz, (16-core)
Processor Socket: FCLGA3647 Socket
Processor Main Features: Hyper-Threading Technology, Intel Turbo Boost Technology 2
Cache Memory: 22 MB L3 cache
Cache Per Processor: 22 MB
RAM: 32 GB (installed) / 1.5 TB (max) - DDR4 SDRAM - Advanced ECC
Storage Controller: RAID (SATA 6Gb/s / SAS 12Gb/s) (HPE Smart Array P408i-a)
Server Storage Bays: Hot-swap 2.5"
Hard Drive: No HDD
Optical Storage: No optical drive
Card Reader: Yes
Video Memory: 16 MB
Networking: 1GbE
Power: AC 120/230 V (50/60 Hz)
Power Redundancy: Optional
Software Included: HPE Server UEFI
Dimensions (WxDxH): 17.5 in x 26.7 in x 3.4 in
Weight: 32.85 lbs
Environmental Standards: ENERGY STAR Qualified
Manufacturer Warranty: Limited warranty - parts and labor - 3 years - on-site
Type: Server - AI Ready
Product Form Factor: Rack-mountable - 2U
Built-in Devices: LED panel
Server Scalability: 2-way
Hot-Swap Bays Qty: 8
CPU: Intel Xeon Gold 5218
Clock Speed: 2.3 GHz
Max Turbo Speed: 3.9 GHz
Number of Cores: 16-core
CPU Qty: 1
Max CPU Qty: 2
CPU Upgradability: Upgradable
Processor Main Features: Hyper-Threading Technology, Intel Turbo Boost Technology 2
CPU Socket: FCLGA3647 Socket
Chipset Type: Intel C621
Installed Size: L3 cache - 22 MB
Cache Per Processor: 22 MB
Installed Size: 32 GB (installed) / 1.5 TB (max)
Technology: DDR4 SDRAM - Advanced ECC
Effective Memory Speed: 2666 MHz
Rated Memory Speed: 2933 MHz
Form Factor: DIMM 288-pin
Slots: 24 (total) / 23 (empty)
Features: Registered, dual rank, slots 13 - 24 are available in two-processor configuration only, HPE SmartMemory
Configuration Features: 1 x 32 GB
RAM Supported: 3 TB Load-Reduced - ECC ¦ 1.5 TB registered - ECC ¦ 192 GB Non-Volatile - ECC
Type: No HDD
Type: 1 x RAID
Controller Interface Type: SATA 6Gb/s / SAS 12Gb/s
Storage Controller Name: HPE Smart Array P408i-a
Channel Qty: 8
RAID Level: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
Buffer Size: 2 GB
Type: No optical drive
Type: Card reader
Supported Flash Memory Cards: microSD
Monitor Type: None.
Video Memory: 16 MB
Video Interfaces: VGA
Ethernet Ports: 4 x Gigabit Ethernet
Ethernet Controller: HPE 366FLR
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol: SNMP 3, IPMI 2.0, SMASH CLP
Remote Management Controller: Integrated Lights-Out 5
Features: Wake on LAN (WoL), PXE support
Bays: 8 (total) / 8 (free) x hot-swap 2.5" SFF
Slots: 1 (total) / 1 (free) x FlexibleLOM ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height ¦ 2 (total) / 2 (free) x PCIe 3.0 x8 - half-length, full-height ¦ 1 (total) / 1 (free) x microSD Card (internal)
Interfaces: 1 x HPE iLO - Type A (1 in front) ¦ 5 x USB 3.0 (1 front, 2 rear, 2 internal) ¦ 1 x HPE iLO - RJ-45 (1 rear) ¦ 4 x LAN (Gigabit Ethernet) - RJ-45 (4 rear) ¦ 1 x VGA (1 rear)
Included Accessories: 4 standard fans
Compliant Standards: AES, FIPS 140-2, IPv6 Ready, PCI DSS, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1
Device Type: Power supply - hot-plug
Power Redundancy: Optional
Power Redundancy Scheme: 1+1 (with optional power supply)
Installed Qty: 1
Max Supported Qty: 2
Voltage Required: AC 120/230 V (50/60 Hz)
Power Provided: 800 Watt
OS Certified: CentOS, Microsoft Windows Server 2012 R2, VMware vSphere 6.0 (ESXi), SuSE Linux Enterprise Server 11 SP4, Microsoft Windows Server 2016, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 6.9, VMware vSphere 6.5, SuSE Linux Enterprise Server 12 SP2, ClearOS
Software: HPE Server UEFI
ENERGY STAR Certified: Yes
ENERGY STAR Version: 2.1
Service & Support: Limited warranty - parts and labor - 3 years - on-site
Width: 17.5 in
Depth: 26.7 in
Height: 3.4 in
Weight: 32.85 lbs
Min Operating Temperature: 50 °F
Max Operating Temperature: 95 °F
Humidity Range Operating: 8 - 90% (non-condensing)
COO: CHINA / CZECHIA / MEXICO / SINGAPORE
