HP e Dl380 Gen10 3204 1p 16g Nc 8lff Svr (P20182B21)
Model: P20182B21
HP e Dl380 Gen10 3204 1p 16g Nc 8lff Svr (P20182B21)
Model: P20182B21
-
HPE DL380 GEN10 3204 1P 16G NC 8LFF SVR
-
Out Of Stock
Product Description

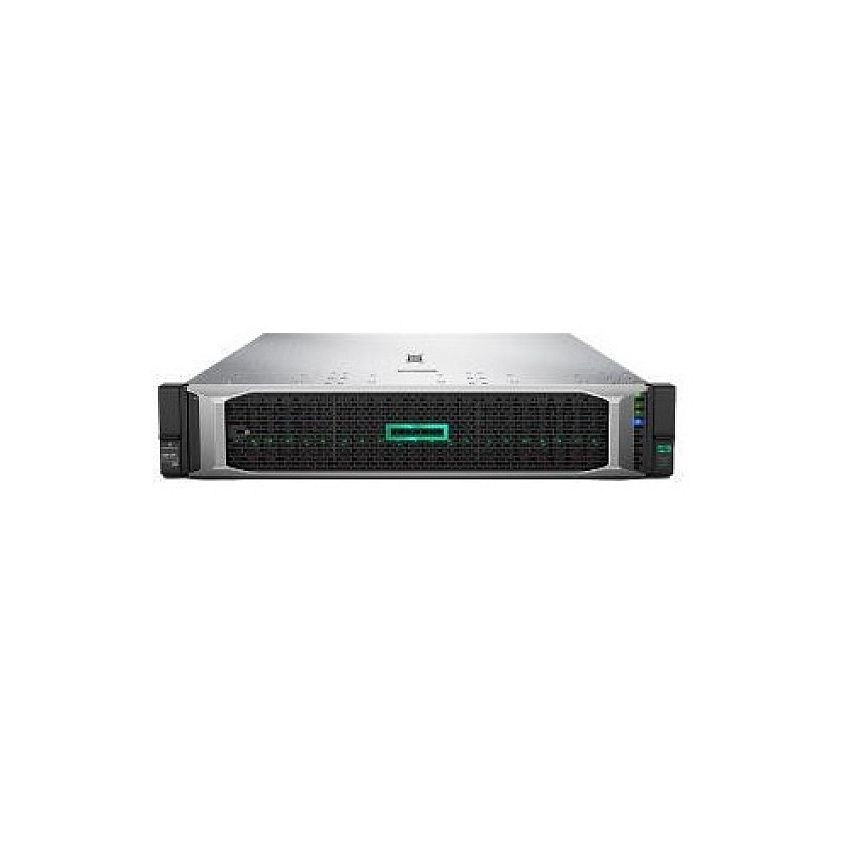

HPE ProLiant DL380 Gen10 server - 2U - Intel Xeon 3204 1.9GHz 6-Core 8.25MB - 16GB RDIMM DDR4 - HPE Smart Array S100i controller - 1 HPE Ethernet 1Gb 4-port 366FLR FlexibleLOM Adapter (665240-B21) plus optional stand-up card NOTE: No embedded networking
Product Specs
Manufacturer
HPManufacturer Stock No.
P20182-B21MPN
HPEP20182B21Model#
P20182B21UPC Code
190017389929UNSPSC Code
0Information
Product Description: HPE ProLiant DL380 Gen10 Network Choice - rack-mountable - AI Ready - Xeon Bronze 3204 1.9 GHz - 16 GB - no HDDType: Server - rack-mountable AI Ready
Height (Rack Units): 2U
Localization: Region: Worldwide
Server Scalability: 2-way
Processor: 1 x Intel Xeon Bronze 3204 / 1.9 GHz (6-core)
Processor Socket: FCLGA3647 Socket
Cache Memory: 8.25 MB L3 cache
Cache Per Processor: 8.25 MB
RAM: 16 GB (installed) / 1.5 TB (max) - DDR4 SDRAM - Advanced ECC
Storage Controller: RAID (SATA 6Gb/s) (HPE Smart Array S100i)
Server Storage Bays: Hot-swap 3.5"
Hard Drive: No HDD
Optical Storage: No optical drive
Video Memory: 16 MB
Networking: 1GbE
Power: AC 120/230 V (50/60 Hz)
Power Redundancy: Yes
Software Included: HPE Server UEFI
Dimensions (WxDxH): 17.5 in x 28.8 in x 3.4 in
Weight: 32.54 lbs
Pricing Type: BTO
Environmental Standards: ENERGY STAR Qualified
Manufacturer Warranty: Limited warranty - parts and labor - 3 years - on-site - response time: next business day
Type: Server - AI Ready
Product Form Factor: Rack-mountable - 2U
Built-in Devices: Battery
Server Scalability: 2-way
Hot-Swap Bays Qty: 8
Localization: Region: Worldwide
CPU: Intel Xeon Bronze 3204
Clock Speed: 1.9 GHz
Number of Cores: 6-core
CPU Qty: 1
Max CPU Qty: 2
CPU Upgradability: Upgradable
CPU Socket: FCLGA3647 Socket
Chipset Type: Intel C621
Installed Size: L3 cache - 8.25 MB
Cache Per Processor: 8.25 MB
Installed Size: 16 GB (installed) / 1.5 TB (max)
Technology: DDR4 SDRAM - Advanced ECC
Effective Memory Speed: 2133 MHz
Rated Memory Speed: 2933 MHz
Form Factor: DIMM 288-pin
Slots: 24 (total) / 23 (empty)
Features: Registered, dual rank, slots 13 - 24 are available in two-processor configuration only, HPE SmartMemory, 6-channel memory architecture
Configuration Features: 1 x 16 GB
RAM Supported: 3 TB Load-Reduced - ECC ¦ 1.5 TB registered - ECC ¦ 192 GB Non-Volatile - ECC
Type: No HDD
Type: 1 x RAID
Controller Interface Type: SATA 6Gb/s
Storage Controller Name: HPE Smart Array S100i
Channel Qty: 14
RAID Level: RAID 0, RAID 1, RAID 5, RAID 10
Type: No optical drive
Monitor Type: None.
Video Memory: 16 MB
Video Interfaces: VGA
Ethernet Ports: 4 x Gigabit Ethernet
Ethernet Controller: HPE 366FLR
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol: SNMP
Remote Management Controller: Integrated Lights-Out 5
Features: PXE support
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.3az
Bays: 8 (total) / 8 (free) x hot-swap 3.5" LFF
Slots: 1 (total) / 1 (free) x FlexibleLOM ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height ¦ 2 (total) / 2 (free) x PCIe 3.0 x8 - half-length, full-height ¦ 1 (total) / 1 (free) x microSD Card (internal)
Interfaces: 4 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x HPE iLO - RJ-45 (1 rear) ¦ 1 x VGA (1 rear) ¦ 8 x SATA-600 / SAS 3.0 ¦ 1 x HPE iLO - Type A (1 in front) ¦ 5 x USB 3.0 (1 front, 2 rear, 2 internal)
Included Accessories: HPE standard heatsink, LFF Easy Install rails, 6 x standard fans
Compliant Standards: AES, FIPS 140-2, IPv6 Ready, PCI DSS, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1
Pricing Type: BTO
Device Type: Power supply - hot-plug
Power Redundancy: Yes
Power Redundancy Scheme: 1+1 (with optional power supply)
Installed Qty: 1
Max Supported Qty: 2
Voltage Required: AC 120/230 V (50/60 Hz)
Power Provided: 500 Watt
80 PLUS Certification: 80 PLUS Platinum
OS Certified: CentOS, Microsoft Windows Server 2012 R2, VMware vSphere 6.0 (ESXi), SuSE Linux Enterprise Server 11 SP4, Microsoft Windows Server 2016, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 6.9, VMware vSphere 6.5, SuSE Linux Enterprise Server 12 SP2, ClearOS
Software: HPE Server UEFI
ENERGY STAR Certified: Yes
ENERGY STAR Version: 3.0
Service & Support: Limited warranty - parts and labor - 3 years - on-site - response time: next business day
Width: 17.5 in
Depth: 28.8 in
Height: 3.4 in
Weight: 32.54 lbs
Min Operating Temperature: 50 °F
Max Operating Temperature: 95 °F
Humidity Range Operating: 8 - 90% (non-condensing)
COO: CHINA / CZECHIA / MEXICO / SINGAPORE
