HP e Dl360 Gen10 4208 1p 32g 8sff Bc Svr (P56955B21)
Model: P56955B21
HP e Dl360 Gen10 4208 1p 32g 8sff Bc Svr (P56955B21)
Model: P56955B21
-

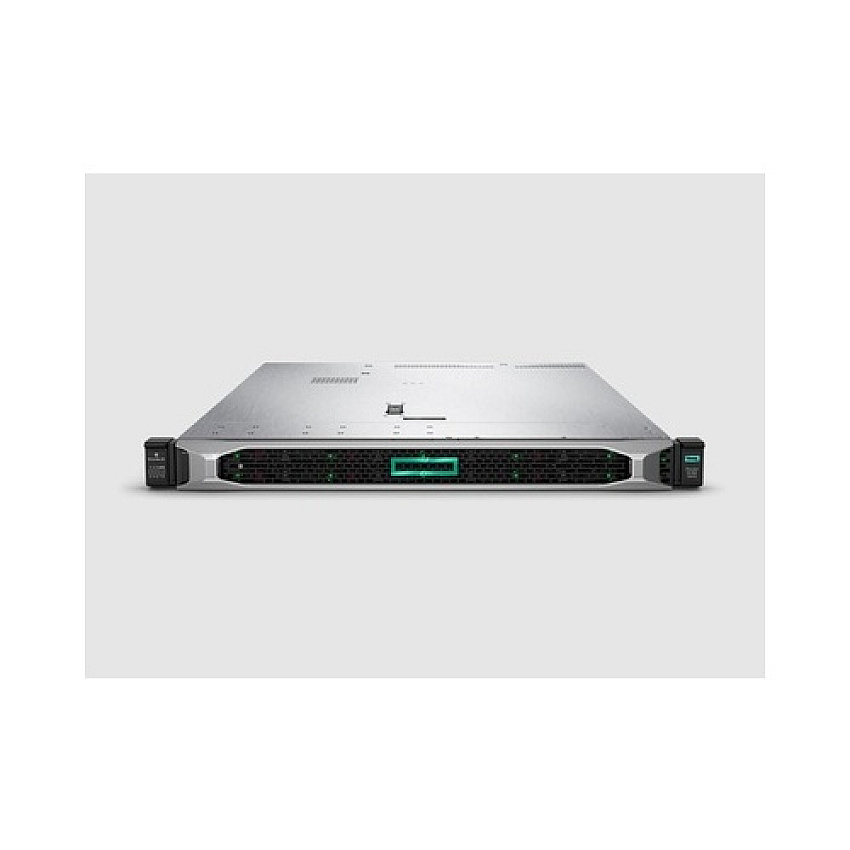

HPE DL360 GEN10 4208 1P 32G 8SFF BC SVR
-
Out Of Stock
Product Description
HPE ProLiant DL360 Gen10 server - 1U - Intel Xeon 4208 2.1GHz 8-Core 11MB - 32GB RDIMM DDR4 - Broadcom MegaRAID MR416i-a x16 Lanes 4GB Cache NVMe/SAS 12G Controller for HPE Gen10 Plus - 1 Embedded 4 x 1GbE Ethernet Adapter - 2 PCIe 3.0, for detailed descr
Product Specs
Manufacturer
HPManufacturer Stock No.
P56955-B21MPN
HPEP56955B21Model#
P56955B21UPC Code
190017616971UNSPSC Code
0Information
Product Description: HPE ProLiant DL360 Gen10 - rack-mountable - AI Ready - Xeon Silver 4208 2.1 GHz - 32 GB - no HDDType: Server - rack-mountable AI Ready
Height (Rack Units): 1U
Localization: Region: Worldwide
Server Scalability: 2-way
Processor: 1 x Intel Xeon Silver 4208 / 2.1 GHz (, up to 3.2 GHz, (8-core)
Processor Socket: FCLGA3647 Socket
Processor Main Features: Hyper-Threading Technology, Intel Turbo Boost Technology 2
Cache Memory: 11 MB L3 cache
Cache Per Processor: 11 MB
RAM: 32 GB (installed) / 1.5 TB (max) - DDR4 SDRAM - Advanced ECC - PC4-23466
Storage Controller: RAID (SAS 12Gb/s) (Broadcom MegaRAID MR416i-a)
Server Storage Bays: Hot-swap 2.5"
Hard Drive: No HDD
Optical Storage: No optical drive
Card Reader: Yes
Video Memory: 16 MB
Networking: 1GbE
Power: (50/60 Hz)
Power Redundancy: Optional
Software Included: HPE Server UEFI
Dimensions (WxDxH): 17.1 in x 27.8 in x 1.7 in
Weight: 28.75 lbs
Environmental Standards: ENERGY STAR Qualified
Manufacturer Warranty: Limited warranty - parts and labor - 3 years - on-site - response time: next business day
Type: Server - AI Ready
Product Form Factor: Rack-mountable - 1U
Built-in Devices: LED panel
Server Scalability: 2-way
Hot-Swap Bays Qty: 8
Localization: Region: Worldwide
CPU: Intel Xeon Silver 4208
Clock Speed: 2.1 GHz
Max Turbo Speed: 3.2 GHz
Number of Cores: 8-core
CPU Qty: 1
Max CPU Qty: 2
CPU Upgradability: Upgradable
Processor Main Features: Hyper-Threading Technology, Intel Turbo Boost Technology 2
CPU Socket: FCLGA3647 Socket
Chipset Type: Intel C621
Installed Size: L3 cache - 11 MB
Cache Per Processor: 11 MB
Installed Size: 32 GB (installed) / 1.5 TB (max)
Technology: DDR4 SDRAM - Advanced ECC
Effective Memory Speed: 2400 MHz
Rated Memory Speed: 2933 MHz
Memory Specification Compliance: PC4-23466
Form Factor: DIMM 288-pin
Slots: 24 (total) / 23 (empty)
Features: Registered, Online Spare Memory, dual rank, mixing of different types of memory modules is not supported, slots 13 - 24 are available in two-processor configuration only, 6-channel memory architecture
Configuration Features: 1 x 32 GB
RAM Supported: 3 TB Load-Reduced - ECC ¦ 1.5 TB registered - ECC ¦ 192 GB Non-Volatile - ECC
Type: No HDD
Type: 1 x RAID
Controller Interface Type: SAS 12Gb/s
Storage Controller Name: Broadcom MegaRAID MR416i-a
Buffer Size: 4 GB
Type: No optical drive
Type: Card reader
Supported Flash Memory Cards: microSD
Monitor Type: None.
Video Memory: 16 MB
Video Interfaces: VGA
Ethernet Ports: 4 x Gigabit Ethernet
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol: SNMP 3, IPMI 2.0, SMASH CLP
Remote Management Controller: Integrated Lights-Out 5
Features: Wake on LAN (WoL), PXE support
Bays: 1 (total) / 1 (free) x external Universal Media Bay ¦ 8 (total) / 8 (free) x hot-swap 2.5" SFF
Slots: 1 (total) / 1 (free) x PCIe 3.0 x16 - three-quarter-length, full-height ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 - low-profile ¦ 1 (total) / 1 (free) x FlexibleLOM - three-quarter-length, full-height (low-profile) ¦ 1 (total) / 1 (free) x microSD Card (internal) ¦ 1 (total) / 1 (free) x PCIe x16 - full-height
Interfaces: 1 x HPE iLO - Type A (1 in front) ¦ 1 x HPE iLO - RJ-45 (1 rear) ¦ 5 x USB 3.0 (1 front, 2 rear, 2 internal) ¦ 1 x VGA (1 rear) ¦ 4 x LAN (Gigabit Ethernet) - RJ-45 (4 rear)
Included Accessories: CPU standard heatsink, 5 x standard fans, SFF Easy install rails
Compliant Standards: AES, FIPS 140-2, IPv6 Ready, PCI DSS, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1
Device Type: Power supply - hot-plug
Power Redundancy: Optional
Power Redundancy Scheme: 1+1 (with optional power supply)
Installed Qty: 1
Max Supported Qty: 2
Voltage Required: AC 100-240 V (50/60 Hz)
Power Provided: 800 Watt
Software: HPE Server UEFI
ENERGY STAR Certified: Yes
ENERGY STAR Version: 3.0
Service & Support: Limited warranty - parts and labor - 3 years - on-site - response time: next business day
Width: 17.1 in
Depth: 27.8 in
Height: 1.7 in
Weight: 28.75 lbs
Min Operating Temperature: 50 °F
Max Operating Temperature: 95 °F
Humidity Range Operating: 8 - 90% (non-condensing)
COO: BRAZIL
TAA compliance: No
