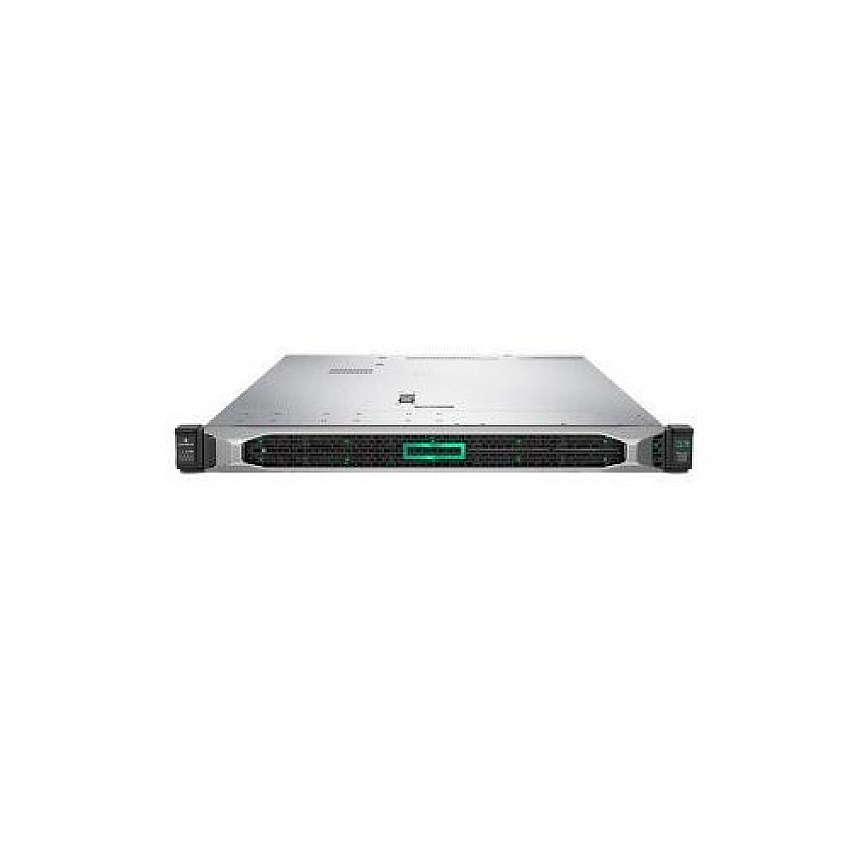

HP e Dl360 Gen10 4208 1p 16g Nc 4lff Svr (P19776B21)
Model: P19776B21
HP e Dl360 Gen10 4208 1p 16g Nc 4lff Svr (P19776B21)
Model: P19776B21
-
HPE DL360 GEN10 4208 1P 16G NC 4LFF SVR
-
Out Of Stock
Product Description
HPE ProLiant DL360 Gen10 server - 1U - Intel Xeon 4208 2.1GHz 8-Core 11MB - 16GB RDIMM DDR4 - HPE Smart Array S100i - HPE Ethernet 1Gb 4-port 366FLR Adapter - 2 PCIe 3.0, for detailed descriptions reference the QuickSpecs - 500Watt Power Supply - 3/3/3 -
Product Specs
Manufacturer
HPManufacturer Stock No.
P19776-B21MPN
HPEP19776B21Model#
P19776B21UPC Code
190017391632UNSPSC Code
0Information
Product Description: HPE ProLiant DL360 Gen10 - rack-mountable - AI Ready - Xeon Silver 4208 2.1 GHz - 16 GB - no HDDType: Server - rack-mountable AI Ready
Height (Rack Units): 1U
Server Scalability: 2-way
Processor: 1 x Intel Xeon Silver 4208 / 2.1 GHz (, up to 3.2 GHz, (8-core)
Processor Socket: FCLGA3647 Socket
Processor Main Features: Hyper-Threading Technology, Intel Turbo Boost Technology 2
Cache Memory: 11 MB L3 cache
Cache Per Processor: 11 MB
RAM: 16 GB (installed) / 1.5 TB (max) - DDR4 SDRAM - Advanced ECC
Storage Controller: SATA (SATA 6Gb/s) (HPE Smart Array S100i SR Software)
Server Storage Bays: Hot-swap 3.5"
Hard Drive: No HDD
Optical Storage: No optical drive
Card Reader: Yes
Video Memory: 16 MB
Networking: 1GbE
Power: AC 120/230 V (50/60 Hz)
Power Redundancy: Optional
OS Provided: No operating system
Software Included: HPE Server UEFI
Dimensions (WxDxH): 17.1 in x 27.8 in x 1.7 in
Weight: 28.75 lbs
Environmental Standards: ENERGY STAR Qualified
Manufacturer Warranty: Limited warranty - parts and labor - 3 years - on-site
Type: Server - AI Ready
Product Form Factor: Rack-mountable - 1U
Built-in Devices: LED panel
Server Scalability: 2-way
Hot-Swap Bays Qty: 4
CPU: Intel Xeon Silver 4208
Clock Speed: 2.1 GHz
Max Turbo Speed: 3.2 GHz
Number of Cores: 8-core
CPU Qty: 1
Max CPU Qty: 2
CPU Upgradability: Upgradable
Processor Main Features: Hyper-Threading Technology, Intel Turbo Boost Technology 2
CPU Socket: FCLGA3647 Socket
Chipset Type: Intel C621
Installed Size: L3 cache - 11 MB
Cache Per Processor: 11 MB
Installed Size: 16 GB (installed) / 1.5 TB (max)
Technology: DDR4 SDRAM - Advanced ECC
Effective Memory Speed: 2400 MHz
Rated Memory Speed: 2933 MHz
Form Factor: DIMM 288-pin
Slots: 24 (total) / 23 (empty)
Features: Registered, dual rank, slots 13 - 24 are available in two-processor configuration only, HPE SmartMemory
Configuration Features: 1 x 16 GB
RAM Supported: 3 TB Load-Reduced - ECC ¦ 1.5 TB registered - ECC ¦ 192 GB Non-Volatile - ECC
Type: No HDD
Type: 1 x SATA
Controller Interface Type: SATA 6Gb/s
Storage Controller Name: HPE Smart Array S100i SR Software
Channel Qty: 14
Type: No optical drive
Type: Card reader
Supported Flash Memory Cards: microSD
Monitor Type: None.
Video Memory: 16 MB
Video Interfaces: VGA
Ethernet Ports: 4 x Gigabit Ethernet
Ethernet Controller: HPE 366FLR
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol: SNMP 3, IPMI 2.0, SMASH CLP
Remote Management Controller: Integrated Lights-Out 5
Features: Wake on LAN (WoL), PXE support
Bays: 1 (total) / 1 (free) x external Universal Media Bay ¦ 4 (total) / 4 (free) x hot-swap 3.5" LFF
Slots: 1 (total) / 1 (free) x PCIe 3.0 x16 - three-quarter-length, full-height ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 - low-profile ¦ 1 (total) / 1 (free) x FlexibleLOM - three-quarter-length, full-height (low-profile) ¦ 1 (total) / 1 (free) x microSD Card (internal) ¦ 1 (total) / 1 (free) x PCIe x16 - full-height
Interfaces: 1 x HPE iLO - Type A (1 in front) ¦ 1 x HPE iLO - RJ-45 (1 rear) ¦ 5 x USB 3.0 (1 front, 2 rear, 2 internal) ¦ 1 x VGA (1 rear) ¦ 4 x LAN (Gigabit Ethernet) - RJ-45 (4 rear)
Included Accessories: 5 x standard hot plug fans
Compliant Standards: AES, FIPS 140-2, IPv6 Ready, PCI DSS, TLS v1.2, FIPS 201 PIV, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1
Device Type: Power supply - hot-plug
Power Redundancy: Optional
Power Redundancy Scheme: 1+1 (with optional power supply)
Installed Qty: 1
Max Supported Qty: 2
Voltage Required: AC 120/230 V (50/60 Hz)
Power Provided: 500 Watt
80 PLUS Certification: 80 PLUS Platinum
OS Provided: No operating system
OS Certified: CentOS, Microsoft Windows Server 2012 R2, VMware vSphere 6.0 (ESXi), SuSE Linux Enterprise Server 11 SP4, Microsoft Windows Server 2016, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 6.9, VMware vSphere 6.5 (ESXi), SuSE Linux Enterprise Server 12 SP2, ClearOS
Software: HPE Server UEFI
ENERGY STAR Certified: Yes
ENERGY STAR Version: 2.1
Service & Support: Limited warranty - parts and labor - 3 years - on-site
Width: 17.1 in
Depth: 27.8 in
Height: 1.7 in
Weight: 28.75 lbs
Min Operating Temperature: 50 °F
Max Operating Temperature: 95 °F
Humidity Range Operating: 8 - 90% (non-condensing)
Sound Emission: 38.1 dBA
COO: CHINA / CZECHIA / MEXICO / SINGAPORE
Unit of Measure
Item Weight
50Ships via UPS
YBrand
HP
