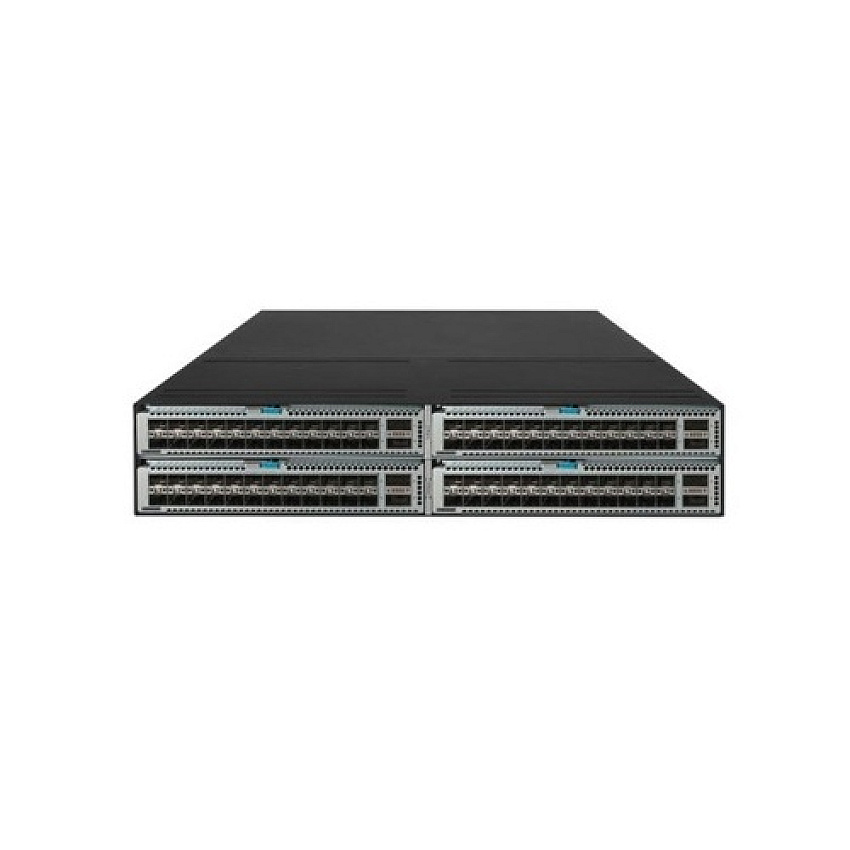

HP e 5945 4-slot Switch (JQ076A)
Model: JQ076A
HP e 5945 4-slot Switch (JQ076A)
Model: JQ076A
-
HPE 5945 4-slot Switch
-
Special order arrives within 3-7 weeks.
Product Description
HPE 5945 4-slot Switch
Product Specs
Manufacturer
HPManufacturer Stock No.
JQ076AMPN
HPEJQ076AModel#
JQ076AUPC Code
190017209685UNSPSC Code
0Information
Product Description: HPE FlexFabric 5945 4-slot - switch - 96 ports - managed - rack-mountableDevice Type: Switch - 96 ports - L3 - managed
Enclosure Type: Rack-mountable 2U
Subtype: 100 Gigabit Ethernet
Ports: 96 x 10/25 Gigabit SFP28 + 8 x 100 Gigabit QSFP28 + 2 x Gigabit SFP
Performance: Latency (64-byte packets): 1 µs ¦ Throughput: 3.2 Tbps ¦ Routing/switching capacity: 2024 Mpps
Capacity: IPv4 routing table entries: 128000 ¦ IPv6 routing table entries: 84000 ¦ Virtual interfaces (VLANs): 4096
MAC Address Table Size: 288K entries
Jumbo Frame Support: 9416 bytes
Routing Protocol: OSPF, BGP-4, IS-IS, RIP-1, RIP-2, BGP, IGMP, VRRP, OSPFv2, IGMPv3, OSPFv3, static IPv6 routing, ECMP, RIPng, IS-ISv6, MPLS, Bidirectional Forwarding Detection (BFD), BGP+
Remote Management Protocol: SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI
Features: Flow control, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, packet filtering, port mirroring, DiffServ support, WRR queuing, IPv6 support, SNTP support, WFQ, sFlow, PIM snooping, STP support, RSTP support, VRRP support, MSTP support, tunneling, DCBX support, DHCP snooping, QoS, CAR, Jumbo Frames support, DLDP support, ECMP, IPv4 support, LLDP support, DHCP relay, LACP, Port Security, DCB, MIB, NTP time synchronization, FCoE forwarding, Ingress Layer 2 MAC ACLs, CoS, SP, IRF technology, FCoE support, ISSU, 32MB packet buffer, UDP shaping, NTP, WDRR, ToR, 2 fan tray slots
Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.1Qaz, IEEE 802.3ag
Power Redundancy: Optional
Dimensions (WxDxH): 17.3 in x 26 in x 3.5 in
Weight: 39.9 lbs
System Requirements: Comware v7
Device Type: Switch - 96 ports - L3 - managed
Enclosure Type: Rack-mountable 2U
Subtype: 100 Gigabit Ethernet
Ports: 96 x 10/25 Gigabit SFP28 + 8 x 100 Gigabit QSFP28 + 2 x Gigabit SFP
Performance: Latency (64-byte packets): 1 µs ¦ Throughput: 3.2 Tbps ¦ Routing/switching capacity: 2024 Mpps
Capacity: IPv4 routing table entries: 128000 ¦ IPv6 routing table entries: 84000 ¦ Virtual interfaces (VLANs): 4096
MAC Address Table Size: 288K entries
Jumbo Frame Support: 9416 bytes
Routing Protocol: OSPF, BGP-4, IS-IS, RIP-1, RIP-2, BGP, IGMP, VRRP, OSPFv2, IGMPv3, OSPFv3, static IPv6 routing, ECMP, RIPng, IS-ISv6, MPLS, Bidirectional Forwarding Detection (BFD), BGP+
Remote Management Protocol: SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI
Authentication Method: Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2)
Features: Flow control, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, packet filtering, port mirroring, DiffServ support, WRR queuing, IPv6 support, SNTP support, WFQ, sFlow, PIM snooping, STP support, RSTP support, VRRP support, MSTP support, tunneling, DCBX support, DHCP snooping, QoS, CAR, Jumbo Frames support, DLDP support, ECMP, IPv4 support, LLDP support, DHCP relay, LACP, Port Security, DCB, MIB, NTP time synchronization, FCoE forwarding, Ingress Layer 2 MAC ACLs, CoS, SP, IRF technology, FCoE support, ISSU, 32MB packet buffer, UDP shaping, NTP, WDRR, ToR, 2 fan tray slots
Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.1Qaz, IEEE 802.3ag
RAM: 8 GB SDRAM
Flash Memory: 1 GB
Interfaces: 2 x 1000Base-LX SFP ¦ 1 x console ¦ 1 x management RJ-45 ¦ 1 x console (mini-USB) RJ-45 ¦ 1 x USB ¦ 1 x management SFP
Expansion Slots: 4 (total) / 4 (free) x expansion slot
Power Device: Internal power supply (not installed) - hot-plug
Max Supported Qty: 4
Power Redundancy: Optional
Compliant Standards: CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, VCCI Class A, FCC CFR47 Part 15 A, FDA 21 CFR, AS/NZS CISPR 32 Class A, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, ETSI EN 300 386
OS Required: Comware v7
Width: 17.3 in
Depth: 26 in
Height: 3.5 in
Weight: 39.9 lbs
Shipping Weight: 59.52 lbs
Min Operating Temperature: 32 °F
Max Operating Temperature: 113 °F
Humidity Range Operating: 5 - 95% (non-condensing)
COO: Inquire
TAA compliance: Inquire
Unit of Measure
Item Weight
42Ships via UPS
YBrand
HP
$7,041.81
$8,109.00
$31,544.41
$36,325.00
$41,303.44
$47,563.00
