HP e 5140 24g Sfp 4sfp+ Ei Sw (JL826A)
Model: JL826A
HP e 5140 24g Sfp 4sfp+ Ei Sw (JL826A)
Model: JL826A
-
HPE 5140 24G SFP 4SFP+ EI SW
-
Special order arrives within 3-7 weeks.
Product Description
HPE 5140 24G SFP 4SFP+ EI Sw
Product Specs
Manufacturer
HPManufacturer Stock No.
JL826AMPN
HPEJL826AModel#
JL826AUPC Code
190017497297UNSPSC Code
0Information

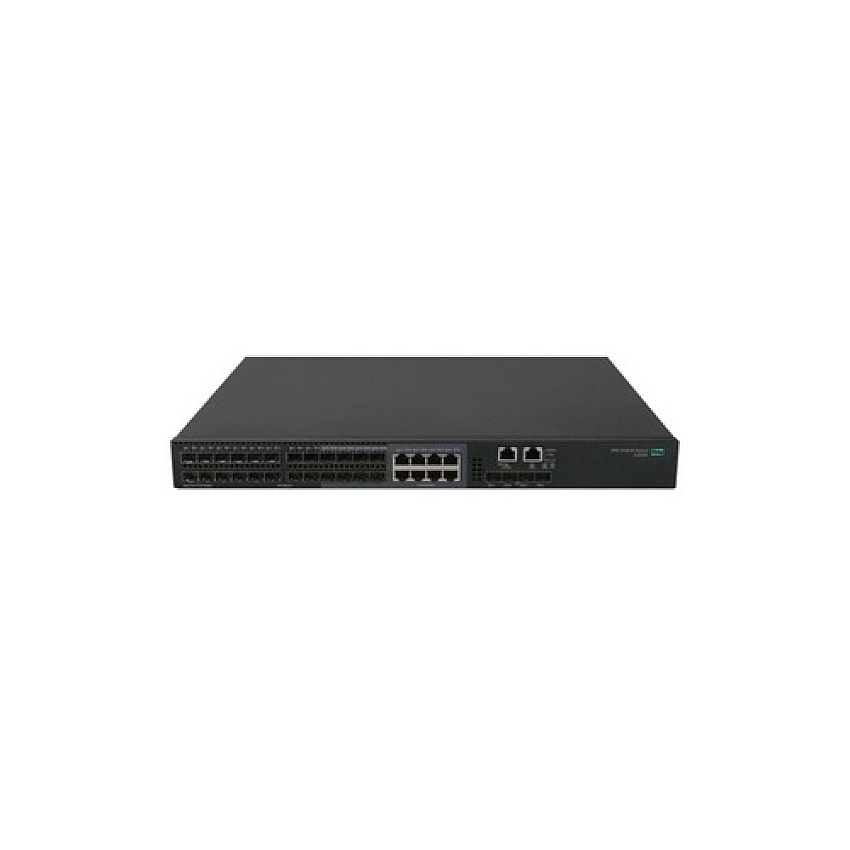

Product Description: HPE FlexNetwork 5140 24G SFP w/8G Combo 4SFP+ EI - switch - 28 ports - smart - rack-mountableDevice Type: Switch - 28 ports - L3 - smart
Enclosure Type: Rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 24 x Gigabit SFP + 8 x combo Gigabit Ethernet/Gigabit SFP + 4 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+
Performance: Latency (1000 Mbps): 5 µs ¦ Latency (10 Gbps): 3 µs ¦ Throughput: 96 Mpps ¦ Routing/switching capacity: 128 Gbps
Capacity: IPv4 routing table entries: 512 ¦ IPv6 routing table entries: 256 ¦ VLAN IDs: 4094
MAC Address Table Size: 16384 entries
Jumbo Frame Support: 9216 bytes
Routing Protocol: OSPF, RIP-1, RIP-2, IGMP, OSPFv2, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, CIDR
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, CLI, NTP, ICMP, RADIUS
Features: Flow control, BOOTP support, ARP support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DiffServ support, High Availability, half duplex mode, full duplex mode, sFlow, STP support, RSTP support, VRRP support, MSTP support, ACL support, QoS, CAR, DHCP server, MLD snooping, DLDP support, STP Root Guard, DHCP relay, LACP, Port Security, Energy Efficient Ethernet, dynamic ARP protection, DHCP protection, MVRP, SPQ, port isolation, GARP, OpenFlow support, IP source guard, ICMP Router Discovery Protocol (IRDP), Link Aggregation, VLAN Double Tagging (Q-in-Q), LLDP-MED, Smart Link, Guest VLAN, Ethernet OAM, proxy ARP, WRR, IRF Technology, BPDU protection, UDP support, MRP
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, ANSI/TIA-1057, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1r
Power: AC 100-240 V (50/60 Hz) - power supply not installed
Dimensions (WxDxH): 17.3 in x 14.2 in x 1.7 in
Weight: 13.23 lbs
Manufacturer Warranty: Limited lifetime warranty
Device Type: Switch - 28 ports - L3 - smart
Enclosure Type: Rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 24 x Gigabit SFP + 8 x combo Gigabit Ethernet/Gigabit SFP + 4 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+
Performance: Latency (1000 Mbps): 5 µs ¦ Latency (10 Gbps): 3 µs ¦ Throughput: 96 Mpps ¦ Routing/switching capacity: 128 Gbps
Capacity: IPv4 routing table entries: 512 ¦ IPv6 routing table entries: 256 ¦ VLAN IDs: 4094
MAC Address Table Size: 16384 entries
Jumbo Frame Support: 9216 bytes
Routing Protocol: OSPF, RIP-1, RIP-2, IGMP, OSPFv2, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, CIDR
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, CLI, NTP, ICMP, RADIUS
Encryption Algorithm: SSL
Authentication Method: RADIUS, TACACS+, Secure Shell v.2 (SSH2), HWTACACS
Features: Flow control, BOOTP support, ARP support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DiffServ support, High Availability, half duplex mode, full duplex mode, sFlow, STP support, RSTP support, VRRP support, MSTP support, ACL support, QoS, CAR, DHCP server, MLD snooping, DLDP support, STP Root Guard, DHCP relay, LACP, Port Security, Energy Efficient Ethernet, dynamic ARP protection, DHCP protection, MVRP, SPQ, port isolation, GARP, OpenFlow support, IP source guard, ICMP Router Discovery Protocol (IRDP), Link Aggregation, VLAN Double Tagging (Q-in-Q), LLDP-MED, Smart Link, Guest VLAN, Ethernet OAM, proxy ARP, WRR, IRF Technology, BPDU protection, UDP support, MRP
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, ANSI/TIA-1057, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1r
RAM: 512 MB SDRAM
Flash Memory: 256 MB
Status Indicators: Port status, system, link/activity, power 1, power 2
Interfaces: 24 x 1000Base-X SFP ¦ 8 x 1000Base-T RJ-45 ¦ 4 x 1000Base-X/10GBase-X SFP+ ¦ 1 x console RJ-45 management ¦ 1 x micro-USB 5 pin USB header management ¦ 1 x management RJ-45
Power Device: Internal power supply (not installed)
Max Supported Qty: 2
Voltage Required: AC 100-240 V (50/60 Hz)
Rack Mounting Kit: Included
Compliant Standards: Plug and Play, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, ICES-003 Class A, RoHS, UL 60950-1, IEC 60950-1, WEEE, EN 60825-1, FCC Part 15 B Class A, EN 60825-2, IPv6 Ready, EN 300 386, FDA 21 CFR, AS/NZS CISPR 32 Class A, YD/T993, IEC 62368-1, EN 55032, CAN/CSA-C22.2 No. 60950-1, VCCI-CISPR 32: 2016 Class A, ETSI EN 300 386, EN 62368-1: 2014/A11: 2017, GB/T9254
Width: 17.3 in
Depth: 14.2 in
Height: 1.7 in
Weight: 13.23 lbs
Service & Support: Limited warranty - lifetime
Min Operating Temperature: 23 °F
Max Operating Temperature: 113 °F
Humidity Range Operating: 10 - 90% (non-condensing)
Min Storage Temperature: -40 °F
Max Storage Temperature: 158 °F
Humidity Range Storage: 5 - 95% (non-condensing)
COO: CHINA
TAA compliance: No
