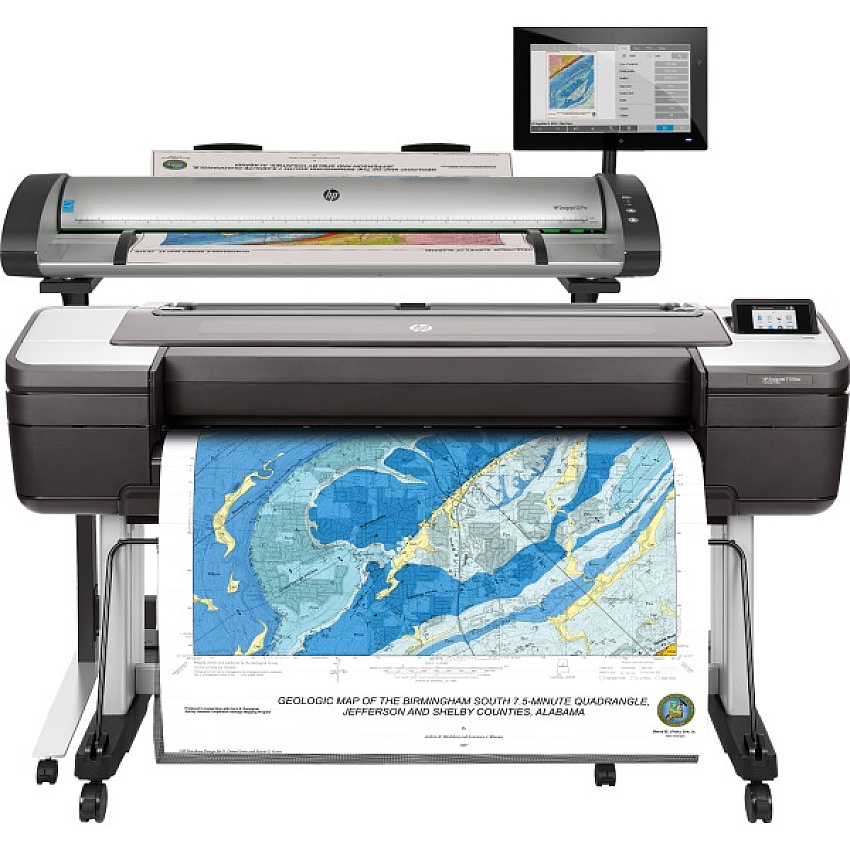

HP Designjet T1700dr 44 Ps Sd Pro Mfp (1GY94A#B1K)

Model: 1GY94A#B1K
Large or Heavy Package; Not Eligible for UPS Shipping
HP
HP Designjet T1700dr 44 Ps Sd Pro Mfp (1GY94A#B1K)

HP Designjet T1700dr 44 Ps Sd Pro Mfp (1GY94A#B1K)

Model: 1GY94A#B1K
Large or Heavy Package; Not Eligible for UPS Shipping
HP

Product Description

DesignJet SD Pro - Multifunction - Thermal Inkjet - Print, Copy, Scan - 2400 x 1200 optimized dpi - Ethernet;Fast Ethernet;Gigabit Ethernet;USB 3.0

Product Features

  • Media size maximum, imperial: 44

  • Media size maximum, metric: 1118

  • Monthly printed pages: Very frequently

Product Specs

Manufacturer

HP

Manufacturer Stock No.

1GY94A#B1K

MPN

HEW1GY94A#B1K

Model#

1GY94A#B1K

UPC Code

191628968251

UNSPSC Code

0

Environmental Certification

Printer: ENERGY STAR; WEEE; EU RoHS; China RoHS; REACH; FEMP; Scanner: ENERGY STAR; WEEE; RoHS (EU, China, Korea, India); REACH; EPEAT Bronze

Functions

Print, copy, scan

Ink Types

Dye-based (C, M, Y, PK, G); pigment-based (MK)

Maximum Memory

Printer: 32 GB (virtual); Scanner: 4 GB

Media Thickness

0.08 in
Up to 0.8 mm
Up to 31.5 mil

Memory

Printer: 128 GB (virtual)[4]; Scanner: 4 GB

Network Ready

Standard

Power

Printer: Input voltage (auto ranging) 100-240 V (±10%), 50/60 Hz (±3 Hz), 2 A max; Scanner: Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz, 5 A max

Power Consumption

Printer: < 100 W (printing); < 24 W (ready); < 1 W (< 6.5 W with embedded Digital Front End) (sleep); 0.35 W (off); Scanner: 47 W (scanning); 32 W (ready); 1.8 W (sleep)

Print Technology

HP Thermal Inkjet
Ink

Scanner Type

Sheetfed

Software Included

HP Click, HP Utility for Mac and Windows, HP WebJet Admin, HP Embedded Web Server, HP JetAdvantage Security Manager, HP Partner Link, HP MPS, integrated software with scan and copy enhancement features

Weight

Printer: 163 lb; Scanner: 187 lb
Printer: 74 kg; Scanner: 85 kg

Accessories

HP DesignJet 44-in Spindle Q6709A; HP DesignJet 3-in Core Adapter CN538A; HP USB 3.0 to Gigabit LAN Adapter N7P47AA

Acoustic power emissions (active, printing)

Printer: 6.1 B(A) (operating), 5.0 B(A) (idle), <3.1 B(A)(sleep); Scanner: 6.4 B(A) (operating), 3.3 B(A) (idle), 3.3 B(A) (sleep)

Acoustic pressure emissions

Printer: 45 dB(A) (operating), 32 dB(A) (idle), <15 dB(A)(sleep); Scanner: 62 dB(A) (operating), 30 dB(A) (idle), 30 dB(A) (sleep)

Bit depth

48-bit/16-bit

Code name

Juno bundle

Color(s) of printing supplies

Cyan, magenta, yellow, photo black, matte black, gray

Connectivity, optional

Printer: HP USB 3.0 to Gigabit LAN Adapter

Connectivity, standard

Printer: Ethernet, Fast Ethernet, Gigabit Ethernet, 10/100/1000Base-T Ethernet (802.3, 802.3u, 802.3ab); USB Type-A host port; Scanner: Gigabit Ethernet (1000Base-T); Hi-Speed USB 3.0 certified

Copier settings

Type of original; image crop and align preview; lightness; saturation and RGB controls; white point and black point adjust; sharpen/blur; mirror copy; enlarge/reduce; paneling; tiling; nesting; accounting; batch; multipage PDF generation

Copies, maximum

1000

Copy reduce / enlarge settings

1 to 10000%

Eco label

ENERGY STAR® certified; EPEAT® Bronze registered

Electromagnetic compatibility

Printer: Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC), South Africa (SABS); Scanner: Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), Japan (VCCI), Korea (KCC), China (CCC)

Energy star certified

No

Enhanced scanning resolution

9600 dpi

Finished output handling

Printer: Sheet feed; two automatic roll feeds; automatic roll-switching; automatic cutter; Scanner: Straight-through scan paper path for sheet and cardboard originals

Guaranteed minimum line width

0.0024 in (ISO/IEC 13660:2001(E))[3]
0.06 mm (ISO/IEC 13660:2001(E))[3]

HP ePrint capability

Yes

Image legal disclaimer

Product image may differ from actual product

Ink drop

6 pl

Internal Storage

Printer: 500 GB self-encrypting; Scanner: 500 GB

Line accuracy

±0.1%[2]

Linear scan speed

Up to 15 cm/sec (color, 200 dpi); up to 33 cm/sec (black-and-white, 200 dpi)
Up to 6 in/sec (color, 200 dpi); up to 13 in/sec (black-and-white, 200 dpi)

Maximum media thickness

2 mm

Maximum optical density (black)

2.15 maximum black optical density (6 L*min)

Media sizes standard (metric rolls)

279 to 1118 mm

Media sizes standard (sheets, rolls)

11 to 44 in

Media sizes supported

A, B, C, D, E
A4; A3; A2; A1; A0

Media sizes, custom

210 x 279 to 1118 x 1676 mm
8.3 x 11 to 44 x 66 in

Media types

Printer: Bond and coated paper, technical paper, film, photographic paper, backlit, self-adhesive; Scanner: Non-abrasive paper, vellum, Mylar, sepia, blueprints, plastic, film, plastic laminate, foam board, cardboard, newspaper, tracing paper (no plywood, stone plates, metal plates or abrasive, dirty, rough, sharp edged, metal clamped, or burned surfaces or transparencies)

Media weight, recommended

60 to 328 g/m²

Media width, maximum

1118 mm
44 in

Minimum dimensions (W x D x H)

Printer: 1802 x 695 x 998 mm; Scanner: 1530 x 930 x 1660 mm
Printer: 70.9 x 27.4 x 39.3 in; Scanner: 60 x 37 x 65 in

Mobile printing capability

Direct print from mobile apps on iOS, Android and Chrome OS; email printing with HP ePrint and HP Smart app for iOS and Android

Model size

1118 mm
44 in

Non-Operating Humidity Range

0 to 90% RH

Non-printable area (cut-sheet)

0.12 x 0.67 x 0.12 x 0.12 in
3 x 17 x 3 x 3 mm

Non-printable area (roll media)

0.12 x 0.12 x 0.12 x 0.12 in
3 x 3 x 3 x 3 mm

Number of print cartridges

6 (cyan, magenta, yellow, photo black, matte black, gray)

Operating humidity range

20 to 80% RH

Operating temperature range

41 to 104ºF
5 to 40ºC

Package dimensions (W x D x H)

1950 x 766 x 1260 mm
77.8 x 30.2 x 49.6 in

Package weight

213 kg
470 lb

Print cartridge volume delivered

Cyan, magenta, yellow, photo black, matte black, gray (300 ml); Cyan, magenta, yellow, photo black, matte black, gray (130 ml)

Print head nozzles

2112 each color

Print heads

3 universal printheads, 2 colors each

Print languages

Adobe PostScript 3, Adobe PDF 1.7 ext 3, HP-GL/2, TIFF, JPEG, URF, CALS G4

Print quality color (best)

Up to 2400 x 1200 optimized dpi

Printer drivers included

Printer: Raster drivers for Windows and macOS; PostScript and PDF Windows drivers and macOS PostScript driver; Scanner: Windows drivers for compatible HP DesignJet Printers

Product logos

Adobe PDF Print Engine 4; Adobe PostScript 3; ENERGY STAR; EPEAT Silver; Gold IPv6 Ready; PANTONE* Digital Color; Windows 10 Compatible

Recommended installation method

Professional installation is recommended

Recommended media

C6810A HP Bright White Inkjet Paper (FSC® certified) (Recyclable) 914 mm x 91.4 m (36 in x 300 ft);C6569C HP Heavyweight Coated Paper (Recyclable) 1067 mm x 30.5 m (42 in x 100 ft);Q6581A HP Universal Instant-dry Satin Photo Paper (FSC® certified) (Recyclable) 1067 mm x 30.5 m (42 in x 100 ft);Q1406B HP Universal Coated Paper (FSC® certified) (Recyclable) 1067 mm x 45.7 m (42 in x 150 ft)

Roll external diameter

135 mm
5.3 in

Roll maximum input

2

Roll maximum weight

11.9 kg
26.3 lb

Safety

Printer: USA and Canada (CSA certified); EU (LVD and EN 60950-1 compliant); Russia, Belarus, Khazakstan (EAC); Singapore (PSB); China (CCC); Argentina (IRAM); India (BIS); Scanner: USA and Canada (CSA certified); EU (LVD and EN 60950-1 compliant); Russia, Belarus, Khazakstan (EAC); China (CCC)

Scan file format

TIFF, JPEG, JPEG2000, PDF (24-bit); TIFF, PDF (8-bit); TIFF, DWF, CALS (B&W), and Multipage PDF

Scan input modes

On the touchscreen: scan preview, scan to file, scan to email, scan to USB, scan to print, scan to FTP, copy, batch scanning, batch copying, collate copy, copy to simultaneous printers

Scan resolution, optical

1200 dpi

Scan size, maximum

1118 mm
44 in

Scan size, minimum

152 x 114 mm
6 x 4.5 in

Security features

HP Secure Boot, HTTPS, Secure-IPP, IPsec/Firewall, Certificates management, 802.1X, TLS 1.0/1.1/1.2, HP Web Jetadmin compatible, HP JetAdvantage Security Manager compatible, self-encrypting HDD, PIN printing

Services (Care Pack)

U7UM9E HP 3 year Next Business Day plus Defective Media Retention Support;U7UN1E HP 5 year Next Business Day plus Defective Media Retention Support;U7UN2PE HP 1 year Post Warranty, Next Business Day plus Defective Media Retention Support;U7UN3PE HP 2 year Post Warranty, Next Business Day plus Defective Media Retention Support;H4518E HP Network Installation DesignJet High-end and Midrange Service;U1XV4E HP Preventive Maintenance Service

Storage temperature range

-13 to 131ºF
-25 to 55ºC

Supported Primary Applications

Line drawings; Maps; Orthophotos; Presentations; Renderings

Theoretical minimum line width

0.0008 in (PDF addressable @ 1200 dpi)
0.02 mm (PDF addressable @ 1200 dpi)

UPC number

191628968251

Warranty

One-year limited hardware warranty

What's in the box

Printer: HP DesignJet T1700dr 44-in PostScript Printer, printheads, ink cartridges, printer stand, spindles (x2), setup poster, introductory information, warranty, power cords, label kits; Scanner: HP SD Pro Scanner, stand, touchscreen (panel PC), quick reference guide, setup poster, copy/scan software, documentation software, Ethernet cables (x2), power cords

Line accuracy note

±0.1% of the specified vector length or ±0.2 mm (whichever greater) at 23ºC (73ºF), 50-60% relative humidity, on A0/E HP Matte Film in Best or Normal mode with Original HP inks

Memory Note

Based on 4 GB DDR3 RAM

Print speed line drawing (economode, A1 plain paper)

116 pages per hour[1]

Print speed line drawing (economode, D plain paper)

116 pages per hour[1]

Print time line drawing (economode, A1 plain paper)

26 sec/page[1]

Print time line drawing (economode, D plain paper)

26 sec/page[1]

Unit of Measure

Item Weight

381

Ships via UPS

N

Brand

HP
