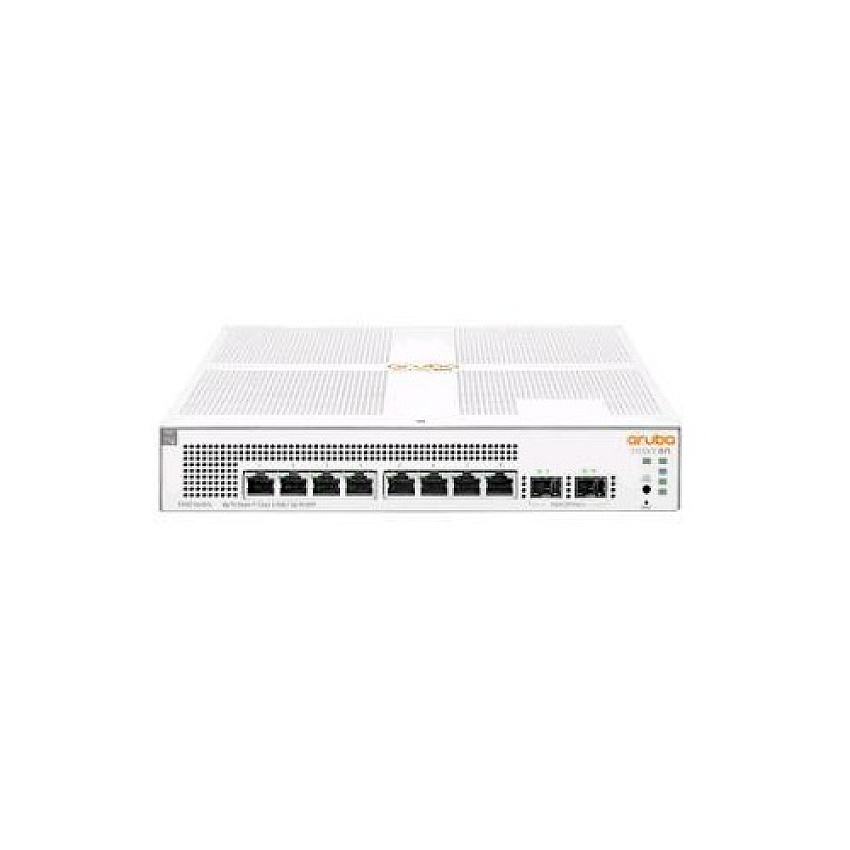

HP e Networking Instant On 1930 8g 2sfp 124w Switch Us (JL681A#ABA)
Model: JL681A#ABA
HP e Networking Instant On 1930 8g 2sfp 124w Switch Us (JL681A#ABA)
Model: JL681A#ABA
-
HPE Networking Instant On 1930 8G 2SFP 124W Switch US
-
Out Of Stock
Product Description
HPE Networking Instant On 1930 8G 2SFP 124W Switch US
Product Specs
Manufacturer
HPManufacturer Stock No.
JL681A#ABAMPN
HPEJL681AABAModel#
JL681A#ABAUPC Code
190017355221UNSPSC Code
0Information
Product Description: HPE Networking Instant On 1930 8G Class4 PoE 2SFP 124W Switch - switch - 10 ports - managed - rack-mountableDevice Type: Switch - 10 ports - L3 - managed
Enclosure Type: Rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 8 x 10/100/1000 (PoE) + 2 x Gigabit SFP
Power Over Ethernet (PoE): PoE
PoE Budget: 124 W
Performance: Switching capacity: 20 Gbps ¦ Throughput: 14.88 Mpps ¦ Latency (100 Mbps): 5.2 µs ¦ Latency (1 Gbps): 3 µs
Capacity: Link aggregation ports: 8 ¦ IPv4 routes (static): 32 ¦ VLANs supported: 256 ¦ Access Control Entries (ACEs) per ACL: 480 ¦ Packet buffer size: 1.5 MB
MAC Address Table Size: 8000 entries
Jumbo Frame Support: 9216 bytes
Routing Protocol: Static IP routing
Remote Management Protocol: SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, RADIUS
Features: Flow control, DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, IPv6 support, half duplex mode, full duplex mode, STP support, MSTP support, ACL support, QoS, TPM, LLDP support, LACP, Energy Efficient Ethernet, CoS, BPDU Filter, PoE Class 4
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.2af
Power: AC 120/230 V (50/60 Hz)
Dimensions (WxDxH): 10 in x 10 in x 1.7 in
Weight: 2.56 lbs
Localization: English / United States
Manufacturer Warranty: Limited lifetime warranty
Device Type: Switch - 10 ports - L3 - managed
Enclosure Type: Rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 8 x 10/100/1000 (PoE) + 2 x Gigabit SFP
Power Over Ethernet (PoE): PoE
PoE Budget: 124 W
Performance: Switching capacity: 20 Gbps ¦ Throughput: 14.88 Mpps ¦ Latency (100 Mbps): 5.2 µs ¦ Latency (1 Gbps): 3 µs
Capacity: Link aggregation ports: 8 ¦ IPv4 routes (static): 32 ¦ VLANs supported: 256 ¦ Access Control Entries (ACEs) per ACL: 480 ¦ Packet buffer size: 1.5 MB
MAC Address Table Size: 8000 entries
Jumbo Frame Support: 9216 bytes
Routing Protocol: Static IP routing
Remote Management Protocol: SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, RADIUS
Encryption Algorithm: SSL
Authentication Method: RADIUS
Features: Flow control, DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, IPv6 support, half duplex mode, full duplex mode, STP support, MSTP support, ACL support, QoS, TPM, LLDP support, LACP, Energy Efficient Ethernet, CoS, BPDU Filter, PoE Class 4
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.2af
Processor: 1 x ARM Cortex-A9: 800 MHz
RAM: 512 MB SDRAM
Flash Memory: 256 MB
Status Indicators: Port status, power, PoE
Interfaces: 8 x 10/100/1000 Base-T RJ-45 ¦ 2 x Gigabit LAN SFP
Power Device: Internal power supply
Voltage Required: AC 120/230 V (50/60 Hz)
Power Consumption Operational: 150 Watt
MTBF: 95 years
Compliant Standards: VCCI, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1, EN 60825-1, CNS 13438, EN 55024: 2010, FCC CFR47 Part 15 A, ICES-003 issue 6 Class A, UL 62368-1 Second Edition, CISPR 32 Class A, EN 62368-1: 2014, EN 55032: 2015+AC: 2016, CISPR 35, SSL, IEC 62368-1: 2014 Second Edition, EN 55035: 2017
Localization: English / United States
Width: 10 in
Depth: 10 in
Height: 1.7 in
Weight: 2.56 lbs
Service & Support: Limited warranty - lifetime
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 15 - 95% (40 °C)
Min Storage Temperature: -40 °F
Max Storage Temperature: 158 °F
Humidity Range Storage: 15 - 95% (60 °C)
COO: Inquire
TAA compliance: Inquire
