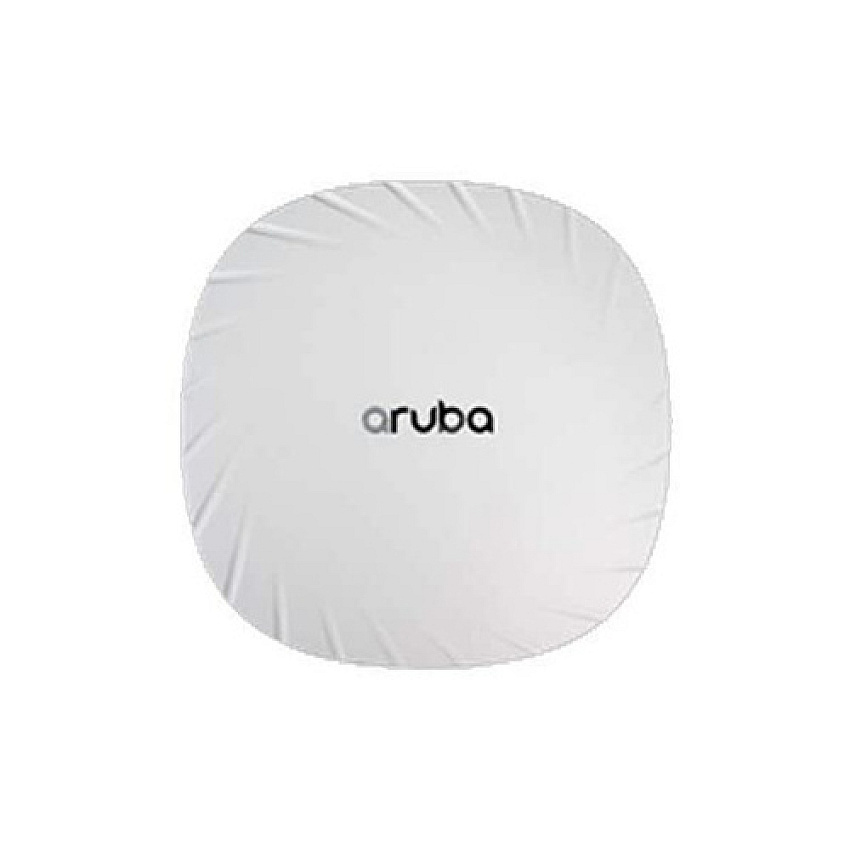

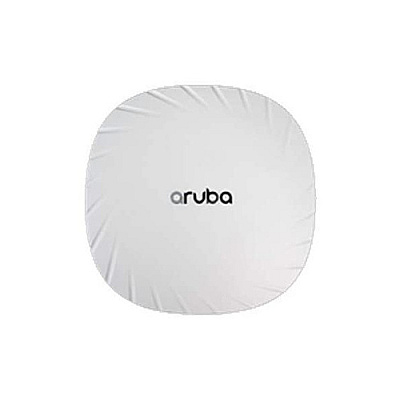

ARUBA AP-514 (US) UNIFIED AP
-
In Stock
Product Description
Aruba 510 Series Campus Access Points - 2.4 GHz;5 GHz - Dual Radio - Wireless - WLAN Access Points - (1) HPE SmartRate RJ-45 port (maximum negotiated speed 2.5Gbps), (1) 10/100/1000BASE-T Ethernet - PoE/PoE+ or direct DC power (via optional power supply)
Product Specs
Manufacturer
HPManufacturer Stock No.
Q9H58AMPN
HPEQ9H58AModel#
Q9H58AUPC Code
190017273587UNSPSC Code
0Information
Product Description: HPE Aruba AP-514 (US) - Campus - wireless access point - Wi-Fi 5Device Type: Wireless access point
Form Factor: In-ceiling - indoor
Data Link Protocol: IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Frequency Band: 2.4 GHz, 5 GHz
Performance: Maximum data rate (2.4 GHz): 575 Mbps ¦ Maximum data rate (5 GHz): 4.8 Gbps ¦ Peak data rate: 5.4 Gbps
Capacity: Wireless clients per Wi-Fi radio: 256 ¦ BSSIDs per radio: 16
OS Required: ArubaOS, InstantOS
Power Over Ethernet (PoE) Supported: PoE
Dimensions (WxDxH): 7.9 in x 7.9 in x 1.8 in
Weight: 28.57 oz
Manufacturer Warranty: Limited lifetime warranty
Device Type: Wireless access point
Ruggedized Design: Indoor
Width: 7.9 in
Depth: 7.9 in
Height: 1.8 in
Weight: 28.57 oz
Form Factor: In-ceiling
Connectivity Technology: Wireless
Line Coding Format: CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM
Data Link Protocol: IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Spread Spectrum Method: OFDM, DSSS
Frequency Band: 2.4 GHz, 5 GHz
Performance: Maximum data rate (2.4 GHz): 575 Mbps ¦ Maximum data rate (5 GHz): 4.8 Gbps ¦ Peak data rate: 5.4 Gbps
Capacity: Wireless clients per Wi-Fi radio: 256 ¦ BSSIDs per radio: 16
Status Indicators: System, status
Features: MDI/MDI-X switch, auto-uplink (auto MDI/MDI-X), DFS support, Quality of Service (QoS), Trusted Platform Module (TPM), reset button, Link Aggregation Control Protocol (LACP), Adaptive Radio Management (ARM), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), security lock slot (cable lock sold separately), Advanced Cellular Coexistence (ACC), ClientMatch, cyclic shift diversity (CSD), AppRF technology, MU-MIMO technology, enhanced ClientMatch, packet aggregation A-MPDU, packet aggregation A-MSDU, wireless intrusion protection, Air Monitor (AM), Space-Time Block Code, Intelligent Power Monitoring (IPM), SecureJack, Secure Core Technology (SCT), 4x4 MU-MIMO technology, Aruba AirMatch, spectrum analyzer, Target Wait Time (TWT)
Compliant Standards: IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, Wi-Fi CERTIFIED, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.3bz, IEEE 802.3bt
Antenna: External
Antenna Qty: 4
Directivity: Omni-directional
Interfaces: 1 x HPE Smart Rate - RJ-45 ¦ 1 x 1000Base-T (PoE+) - RJ-45 ¦ 1 x USB 2.0 - Type A ¦ 4 x antenna - RP-SMA ¦ 1 x serial / console - micro-USB
MTBF: 560,000 years
Compliant Standards: UL 2043, FCC, EN 60601-1-1, EMC 2014/30/EU, LVD 2014/35/EU, ISED, IEC/EN/UL 60950, EN60601-1-2, ETS 300 019-1-2, ETS 300 019 Class 2.3
Power Over Ethernet (PoE) Supported: PoE
Power Consumption Operational: 20.8 Watt
OS Required: ArubaOS, InstantOS
Shipping Width: 9.1 in
Shipping Depth: 8.7 in
Shipping Height: 2.8 in
Shipping Weight: 2.23 lbs
Service & Support: Limited warranty - lifetime
Min Operating Temperature: 32 °F
Max Operating Temperature: 122 °F
Humidity Range Operating: 5 - 93% (non-condensing)
COO: CHINA
TAA compliance: No
Unit of Measure
Item Weight
2.4Ships via UPS
YBrand
HP
