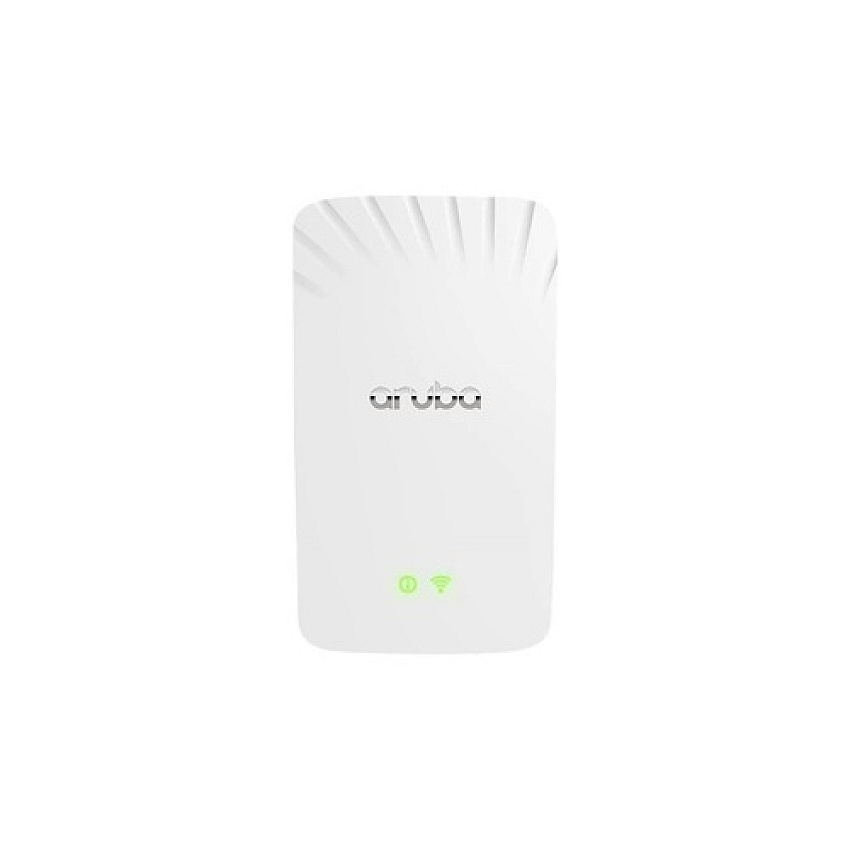

HP Aruba Ap-503hr (us) Remote Ap Bundle (R7G97A)
Model: R7G97A
HP Aruba Ap-503hr (us) Remote Ap Bundle (R7G97A)
Model: R7G97A
-
ARUBA AP-503HR (US) REMOTE AP BUNDLE
-
Special order arrives within 3-7 weeks.
Product Description
Aruba 500H Series Unified Hospitality Access Points - 2.4 GHz;5 GHz - Wireless - WLAN Access Points - AP-505H models: (1) HPE SmartRate RJ-45 port, auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX. 2.5 Gbps speed complies with NBASE-T and 802.3bz
Product Specs
Manufacturer
HPManufacturer Stock No.
R7G97AMPN
HPER7G97AModel#
R7G97AUPC Code
190017491950UNSPSC Code
0Information
Product Description: HPE Aruba AP-503HR (US) Unified Remote - wireless access point - Bluetooth, Wi-Fi 6Device Type: Wireless access point
Form Factor: External
Data Link Protocol: IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6)
Frequency Band: 2.4 GHz, 5 GHz
Performance: Maximum data rate (5 GHz): 1.2 Gbps ¦ Maximum data rate (2.4 GHz): 287 Mbps ¦ VPN throughput (IPSec): 100 Mbps ¦ Aggregate throughput: 1.5 Gbps
Capacity: Wireless clients per Wi-Fi radio: 256 ¦ BSSIDs per radio: 16 ¦ OFDMA units: 8
Included Accessories: Desk mount kit
OS Required: ArubaOS, InstantOS
Power Over Ethernet (PoE) Supported: PoE Class 3
Pricing Type: BTO
Dimensions (WxDxH): 3.4 in x 1.9 in x 5.9 in
Weight: 12.7 oz
Manufacturer Warranty: Limited lifetime warranty
Device Type: Wireless access point
Width: 3.4 in
Depth: 1.9 in
Height: 5.9 in
Weight: 12.7 oz
Form Factor: External
Connectivity Technology: Wireless
Data Transfer Rate: 1.2 Gbps
Line Coding Format: CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA
Data Link Protocol: IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6)
Spread Spectrum Method: OFDM, DSSS, OFDMA
Network / Transport Protocol: IPSec
Frequency Band: 2.4 GHz, 5 GHz
Performance: Maximum data rate (5 GHz): 1.2 Gbps ¦ Maximum data rate (2.4 GHz): 287 Mbps ¦ VPN throughput (IPSec): 100 Mbps ¦ Aggregate throughput: 1.5 Gbps
Capacity: Wireless clients per Wi-Fi radio: 256 ¦ BSSIDs per radio: 16 ¦ OFDMA units: 8
Status Indicators: Port status, power, system, status, PoE, radio
Features: Auto-uplink (auto MDI/MDI-X), DFS support, Deep Packet Inspection (DPI), IPSec Virtual Private Network (VPN), Wi-Fi Multimedia (WMM) support, Trusted Platform Module (TPM), 2T2R MIMO technology, Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Direct Sequence Spread Spectrum (DSSS), Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Advanced Cellular Coexistence (ACC), ClientMatch, cyclic shift diversity (CSD), Green AP technology, MU-MIMO technology, packet aggregation A-MPDU, packet aggregation A-MSDU, SU-MIMO technology, Intelligent Power Monitoring (IPM), Dynamic Frequency Selection (DFS), High-Throughput (HT) support, Energy-Efficient Ethernet (EEE), Orthogonal Frequency Division Multiplexing (OFDM), 2x2 MIMO technology, Very High Throughput (VHT) support, security slot (Kensington security lock compatible), Orthogonal Frequency Division Multiple Access (OFDMA), High Efficiency (HE) support, Target Wait Time (TWT), HPE SmartRate, Advanced IoT Coexistence (AIC), Policy Enforcement Firewall (PEF)
Encryption Algorithm: SSL, WPA, WPA2, WPA3, WPA3-Enterprise, Opportunistic Wireless Encryption (OWE), WPA3-Enhanced Open, Simultaneous Authentication of Equals (SAE), WPA2-MPSK
Compliant Standards: IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.11ac Wave 2, IEEE 802.3bz, IEEE 802.11ax, Wi-Fi CERTIFIED 6
Antenna: Internal
Antenna Qty: 2
Directivity: Directional
Gain Level: 5 dBi
Internet of Things (IoT) Compatible: Yes
Communications Technology: Bluetooth Low Energy (LE), Zigbee
Interfaces: 2 x 1000Base-T - RJ-45 ¦ 1 x 1000Base-T (PoE+) - RJ-45 ¦ 1 x console - micro-USB
Included Accessories: Desk mount kit
Cables Included: Power adapter
Compliant Standards: EN 60950, IEC 60950, FCC, EN 60601-1-2, EN 60601-1-1, EMC 2014/30/EU, LVD 2014/35/EU, EN 62368-1, IEC 62368-1, ETS 300-019, ISED, RED 2014/53/EU
Pricing Type: BTO
Power Over Ethernet (PoE) Supported: PoE Class 3
Power Consumption Operational: 6.2 Watt
OS Required: ArubaOS, InstantOS
Shipping Width: 4.4 in
Shipping Depth: 2.1 in
Shipping Height: 6.6 in
Shipping Weight: 15.87 oz
Service & Support: Limited warranty - lifetime
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 5 - 93% (non-condensing)
COO: CHINA
TAA compliance: No
Unit of Measure
Item Weight
2Ships via UPS
YBrand
HP
$13,571.26
$15,628.00
