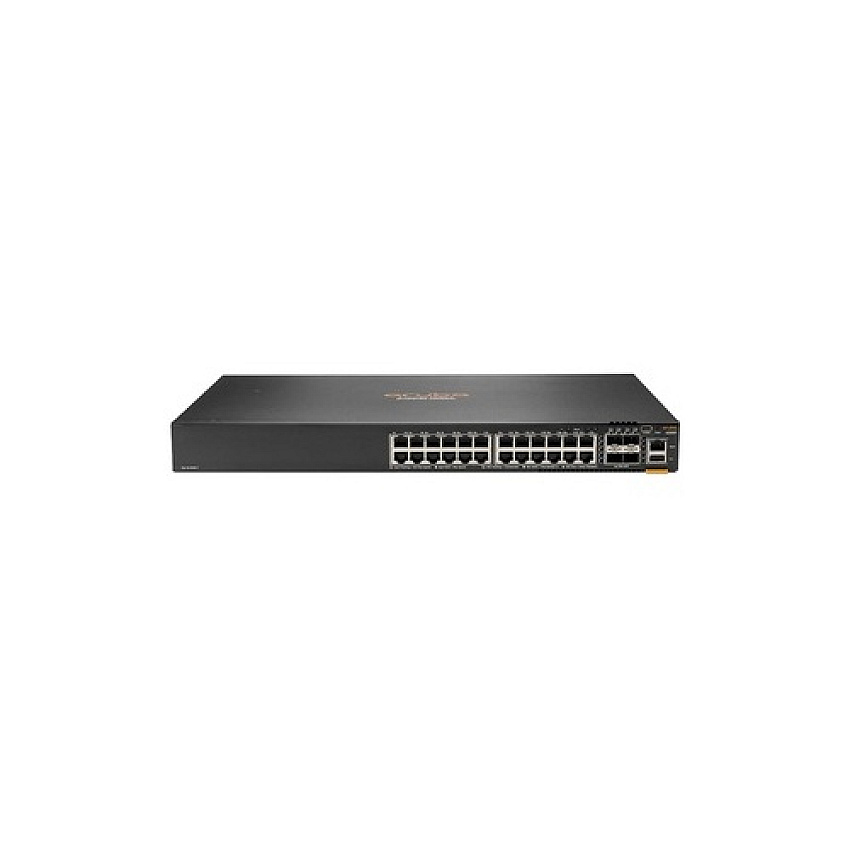

HP Aruba 6300f 24g 4sfp56 (JL668A#ABA)
Model: JL668A#ABA
HP Aruba 6300f 24g 4sfp56 (JL668A#ABA)
Model: JL668A#ABA
-
ARUBA 6300F 24G 4SFP56
-
Special order arrives within 3-7 weeks.
Product Description
Aruba CX 6300 Switch Series - Quad Core ARM Cortex A72 1.8GHz - 8 GB DDR4 32 GB eMMC 8 MB Shared Packet Buffer Memory - (24) 10/100/1000 BASE-T ports, (4) 1/10/25/50G SFP ports - 1Gbps: 2.28Sec, 10Gbps: 1.46Sec, 25Gbps: 1.90Sec, 50Gbps: 3.49Sec - 100-120/
Product Specs
Manufacturer
HPManufacturer Stock No.
JL668A#ABAMPN
HPEJL668AABAModel#
JL668A#ABAUPC Code
190017340951UNSPSC Code
0Information
Product Description: HPE Aruba 6300F - switch - 24 ports - managed - rack-mountableDevice Type: Switch - 24 ports - L3 - managed - stackable
Enclosure Type: Front and side to back rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 24 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking)
Performance: Switching capacity: 448 Gbps ¦ Throughput: 334 Mpps ¦ Latency (1 Gbps): 2.28 µs ¦ Latency (10 Gbps): 1.46 µs ¦ Latency (25 Gbps): 1.9 µs ¦ Latency (50 Gbps): 3.49 µs ¦ Stacking bandwidth: 200 Gbps
Capacity: Switched virtual interfaces (SVIs): 1000 ¦ IPv4 host table capacity: 32000 ¦ IPv6 host table capacity: 32000 ¦ IPv4 routes (Unicast): 64000 ¦ IPv6 routes (Unicast): 32000 ¦ IPv4 routes (Multicast): 8000 ¦ IPv6 routes (Multicast): 8000 ¦ IGMP groups: 8000 ¦ MLD groups: 4000 ¦ IPv4 ACL entries (ingress): 5000 ¦ IPv6 ACL entries (ingress): 1250 ¦ MAC ACL entries (ingress): 5000 ¦ IPv4 ACL entries (egress): 2000 ¦ IPv6 ACL entries (egress): 500 ¦ MAC ACL entries (egress): 2000
MAC Address Table Size: 32000 entries
Jumbo Frame Support: 9198 bytes
Routing Protocol: EGP, BGP-4, IGMPv2, IGMP, VRRP, OSPFv2, IGMPv3, OSPFv3, MSDP, static IPv6 routing, ECMP, MLD, Bidirectional Forwarding Detection (BFD)
Remote Management Protocol: RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH, CLI, XRMON, SFTP
Features: DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, High Availability, PVST, MSTP support, ACL support, QoS, Jumbo Frames support, MLD snooping, UDLD, Rapid PVST+, DWRR, LLDP support, MIB, DHCP protection, dual firmware images, MVRP, packet storm protection, CoS, SP, broadcast storm protection, ToS, BPDU, VXLAN, Multicast Storm Protection, NTP, RA guard, ZTP, PIM, VLAN Tagging, RSTP, IPv4 and IPv6 dual stack, IP multicast, Aruba VSF, dynamic IPv6 lockdown, ND snooping, Unicast Storm protection, Microsoft NLB
Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX
Dimensions (WxDxH): 17.4 in x 15.2 in x 1.7 in
Weight: 11.97 lbs
Localization: English / United States
Manufacturer Warranty: Limited lifetime warranty
Device Type: Switch - 24 ports - L3 - managed - stackable
Enclosure Type: Front and side to back rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 24 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking)
Performance: Switching capacity: 448 Gbps ¦ Throughput: 334 Mpps ¦ Latency (1 Gbps): 2.28 µs ¦ Latency (10 Gbps): 1.46 µs ¦ Latency (25 Gbps): 1.9 µs ¦ Latency (50 Gbps): 3.49 µs ¦ Stacking bandwidth: 200 Gbps
Capacity: Switched virtual interfaces (SVIs): 1000 ¦ IPv4 host table capacity: 32000 ¦ IPv6 host table capacity: 32000 ¦ IPv4 routes (Unicast): 64000 ¦ IPv6 routes (Unicast): 32000 ¦ IPv4 routes (Multicast): 8000 ¦ IPv6 routes (Multicast): 8000 ¦ IGMP groups: 8000 ¦ MLD groups: 4000 ¦ IPv4 ACL entries (ingress): 5000 ¦ IPv6 ACL entries (ingress): 1250 ¦ MAC ACL entries (ingress): 5000 ¦ IPv4 ACL entries (egress): 2000 ¦ IPv6 ACL entries (egress): 500 ¦ MAC ACL entries (egress): 2000
MAC Address Table Size: 32000 entries
Jumbo Frame Support: 9198 bytes
Routing Protocol: EGP, BGP-4, IGMPv2, IGMP, VRRP, OSPFv2, IGMPv3, OSPFv3, MSDP, static IPv6 routing, ECMP, MLD, Bidirectional Forwarding Detection (BFD)
Remote Management Protocol: RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH, CLI, XRMON, SFTP
Authentication Method: Secure Shell (SSH), RADIUS, TACACS+
Features: DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, High Availability, PVST, MSTP support, ACL support, QoS, Jumbo Frames support, MLD snooping, UDLD, Rapid PVST+, DWRR, LLDP support, MIB, DHCP protection, dual firmware images, MVRP, packet storm protection, CoS, SP, broadcast storm protection, ToS, BPDU, VXLAN, Multicast Storm Protection, NTP, RA guard, ZTP, PIM, VLAN Tagging, RSTP, IPv4 and IPv6 dual stack, IP multicast, Aruba VSF, dynamic IPv6 lockdown, ND snooping, Unicast Storm protection, Microsoft NLB
Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX
Processor: 1 x ARM Cortex-A72: 1.78 GHz
RAM: 8 GB DDR4 SDRAM
Flash Memory: 32 GB
Interfaces: 24 x 10/100/1000 Base-T RJ-45 PoE+ ¦ 4 x 1Gbit/10Gbit/25Gbit/50Gbit SFP56 ¦ 1 x USB-C console ¦ 1 x management ¦ 1 x USB Type A
Rack Mounting Kit: Included
Compliant Standards: FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, FCC Part 15, ICES-003 Class A, RoHS, WEEE, CAN/CSA C22.2 No. 60950-1-07, VCCI Class A, EN 50581: 2012, IEC 60950-1: 2005, EN 61000-3-3: 2013, CISPR 24: 2010, EN 55022: 2010, EN 61000-3-2: 2014, EN 60825-1: 2007, IEC 60825-1: 2007 Class 1, EN 55032: 2012 Class A, CISPR 32 Class A, UL/CSA60950-1 (2nd Edition), CISPR 35, EN 55024: 2010 Class A, EN 55035: 2017, EN 60950-1: 2006+A11: 2009+A1: 2010+A12: 2011+A2: 2013
Localization: English / United States
Width: 17.4 in
Depth: 15.2 in
Height: 1.7 in
Weight: 11.97 lbs
Service & Support: Limited warranty - lifetime
Min Operating Temperature: 32 °F
Max Operating Temperature: 113 °F
Humidity Range Operating: 15 - 95% (non-condensing)
Min Storage Temperature: -40 °F
Max Storage Temperature: 158 °F
Humidity Range Storage: 15 - 95% (non-condensing)
COO: SINGAPORE
TAA compliance: Yes
Unit of Measure
Item Weight
14.34Ships via UPS
YBrand
HP
$7,509.00
$8,647.00
$5,878.16
$6,769.00
