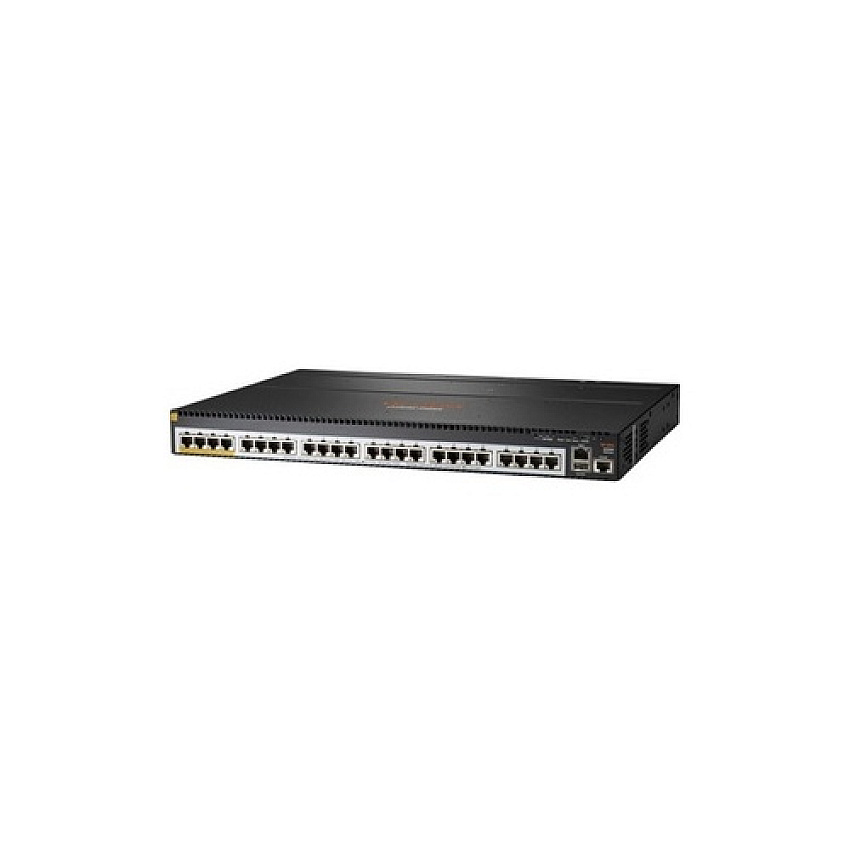

HP Aruba 2930m 24sr Poe Class 6 1s Swch (R0M68A)
Model: R0M68A
HP Aruba 2930m 24sr Poe Class 6 1s Swch (R0M68A)
Model: R0M68A
-
ARUBA 2930M 24SR POE CLASS 6 1S SWCH
-
Special order arrives within 3-7 weeks.
Product Description
Aruba 2930M Switch Series - Dual Core ARM Coretex A9 1016 MHz - 1 GB DDR3 SDRAM - 4 GB eMMC - (24) RJ-45 autosensing 1/2.5/5GBASE-T PoE Class 6 ports (1) Uplink module slot, (1) stacking module slot - 1000 Mb Latency: less 3.1 us 10 Gbps Latency: less 3.4
Product Specs
Manufacturer
HPManufacturer Stock No.
R0M68AMPN
HPER0M68AModel#
R0M68AUPC Code
190017311395UNSPSC Code
0Information
Product Description: HPE Aruba 2930M 24 Smart Rate POE+ 1-Slot - switch - 24 ports - managed - rack-mountableDevice Type: Switch - 24 ports - L3 - managed - stackable
Enclosure Type: Rack-mountable 1U
Subtype: 5 Gigabit Ethernet
Ports: 24 x 1/2.5/5GBase-T POE+
Power Over Ethernet (PoE): PoE+
PoE Budget: 860 W
Performance: Latency (1 Gbps): 3.1 µs ¦ Latency (2.5 Gbps): 6.5 µs ¦ Latency (5 Gbps): 4.2 µs ¦ Latency (10 Gbps): 3.4 µs ¦ Throughput: 112 Mpps ¦ Stacking bandwidth: 100 Gbps ¦ Switching capacity: 320 Gbps
Capacity: IPv4 routing table entries: 2000 ¦ IPv6 routing table entries: 1000 ¦ OSPF routes: 200 ¦ RIP routes: 10000 ¦ Static routes: 256
MAC Address Table Size: 32768 entries
Jumbo Frame Support: 9220 bytes
Routing Protocol: OSPF, RIP, RIP-1, RIP-2, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, ECMP, RIPng, MLD, CIDR
Remote Management Protocol: SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, SSH-2, CLI, XRMON
Features: Flow control, full duplex capability, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, SNTP support, sFlow, STP support, MSTP support, ACL support, QoS, Jumbo Frames support, DHCP server, MLD snooping, STP Root Guard, UDLD, LLDP support, LACP, MIB, MAC address lockout, dynamic ARP protection, DHCP protection, GVRP, MVRP, NDP, CoS, ToS, OpenFlow support, CPU protection, ICMP, ICMP Router Discovery Protocol (IRDP), VXLAN, MIB II, LLDP-MED, STP BPDU Guard
Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.3bz
Power: AC 120/230 V (50/60 Hz) - power supply not installed
Dimensions (WxDxH): 17.4 in x 12.8 in x 1.7 in
Weight: 9.92 lbs
Manufacturer Warranty: Limited lifetime warranty
Device Type: Switch - 24 ports - L3 - managed - stackable
Enclosure Type: Rack-mountable 1U
Subtype: 5 Gigabit Ethernet
Ports: 24 x 1/2.5/5GBase-T POE+
Power Over Ethernet (PoE): PoE+
PoE Budget: 860 W
Performance: Latency (1 Gbps): 3.1 µs ¦ Latency (2.5 Gbps): 6.5 µs ¦ Latency (5 Gbps): 4.2 µs ¦ Latency (10 Gbps): 3.4 µs ¦ Throughput: 112 Mpps ¦ Stacking bandwidth: 100 Gbps ¦ Switching capacity: 320 Gbps
Capacity: IPv4 routing table entries: 2000 ¦ IPv6 routing table entries: 1000 ¦ OSPF routes: 200 ¦ RIP routes: 10000 ¦ Static routes: 256
MAC Address Table Size: 32768 entries
Jumbo Frame Support: 9220 bytes
Routing Protocol: OSPF, RIP, RIP-1, RIP-2, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, ECMP, RIPng, MLD, CIDR
Remote Management Protocol: SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, SSH-2, CLI, XRMON
Encryption Algorithm: MD5, SSL, TLS
Authentication Method: RADIUS, PAP, CHAP, TACACS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Features: Flow control, full duplex capability, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, SNTP support, sFlow, STP support, MSTP support, ACL support, QoS, Jumbo Frames support, DHCP server, MLD snooping, STP Root Guard, UDLD, LLDP support, LACP, MIB, MAC address lockout, dynamic ARP protection, DHCP protection, GVRP, MVRP, NDP, CoS, ToS, OpenFlow support, CPU protection, ICMP, ICMP Router Discovery Protocol (IRDP), VXLAN, MIB II, LLDP-MED, STP BPDU Guard
Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.3bz
Processor: 1 x ARM Cortex-A9: 1.016 GHz
RAM: 1 GB DDR3 SDRAM
Flash Memory: 4 GB
Interfaces: 24 x 1/2.5/5GBase-T PoE+ ¦ 1 x serial (console) ¦ 1 x USB Type B ¦ 1 x 1000Base-T management
Expansion Slots: 1 (total) / 1 (free) x Stacking Module slot ¦ 1 (total) / 1 (free) x expansion slot
Power Device: Internal power supply (not installed)
Max Supported Qty: 2
Voltage Required: AC 120/230 V (50/60 Hz)
Compliant Standards: CISPR 22 Class A, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, ICES-003 Class A, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07 Second Edition, VCCI Class A, IEC 60825-1: 2007, CNS 13438, EN 55024: 2010, EN 55022: 2010, IEC 60950-1: 2005 + A1: 2009 + A2: 2013, EN 60825-1: 2007, FCC CFR47 Part 15 A, EN 60950-1: 2006+A11: 2009+A1: 2010+A12: 2011+A2: 2013
Width: 17.4 in
Depth: 12.8 in
Height: 1.7 in
Weight: 9.92 lbs
Service & Support: Limited warranty - lifetime
Min Operating Temperature: 32 °F
Max Operating Temperature: 131 °F
Humidity Range Operating: 15 - 95% (non-condensing)
Min Storage Temperature: -40 °F
Max Storage Temperature: 158 °F
Humidity Range Storage: 90% (non-condensing)
COO: SINGAPORE
TAA compliance: Yes
