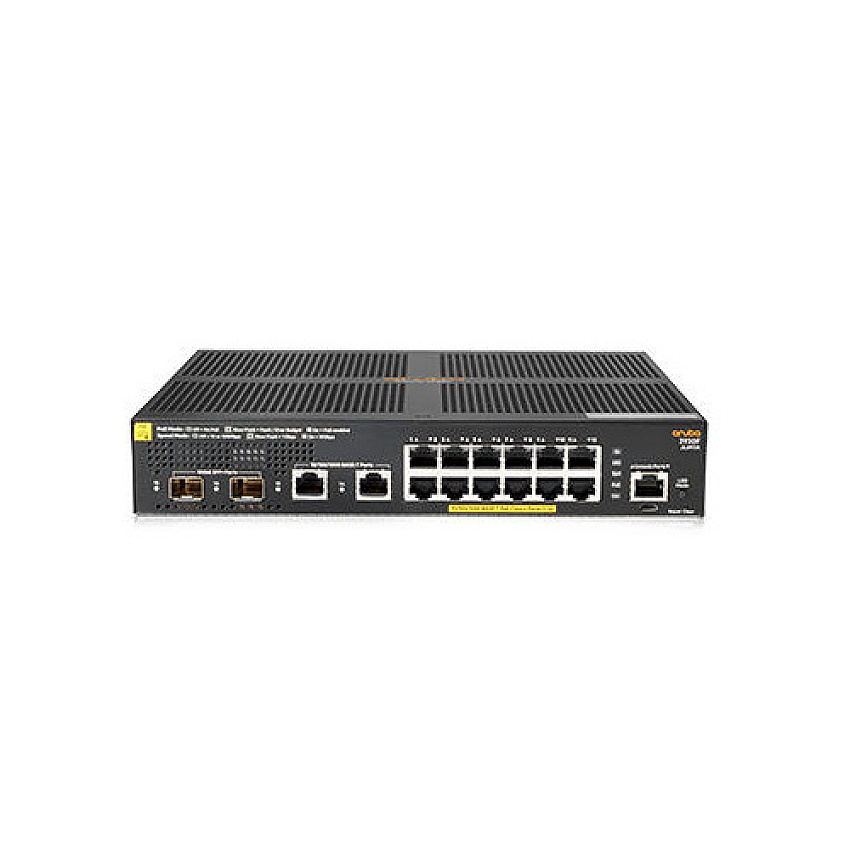

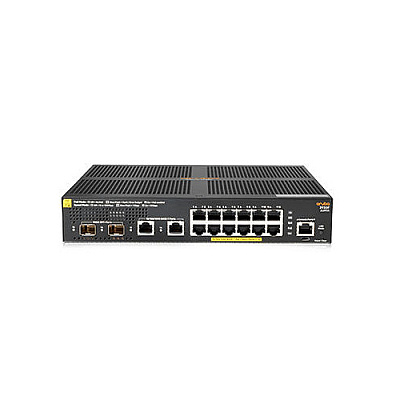

HP Aruba 2930f 12g Poe+ Swch U.s. (JL693A#ABA)
Model: JL693A#ABA
HP Aruba 2930f 12g Poe+ Swch U.s. (JL693A#ABA)
Model: JL693A#ABA
-
ARUBA 2930F 12G POE+ SWCH U.S.
-
In Stock
Product Description
Aruba 2930F Switch Series - Dual Core ARM Cortex A9 1016 MHz - 1 GB DDR3 SDRAM - 4 GB eMMC - (12) RJ-45 autosensing 10/100/1000 PoE+ ports (2) SFP+ 1/10GbE ports (2) 1GbE ports PHY-less - 1,000 Mb latency: less 3.8 us 10Gbps latency: less 2.9 us - 90 - 26
Product Specs
Manufacturer
HPManufacturer Stock No.
JL693A#ABAMPN
HPEJL693AABAModel#
JL693A#ABAUPC Code
190017368207UNSPSC Code
0Information
Product Description: HPE Aruba 2930F 12G PoE+ 2G/2SFP+ - switch - 12 ports - managed - rack-mountableDevice Type: Switch - 12 ports - L3 - managed - stackable
Enclosure Type: Rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 12 x 10/100/1000 (PoE+) + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink) + 2 x 10/100/1000
Power Over Ethernet (PoE): PoE+
PoE Budget: 139 W
Performance: Throughput: 41.7 Mpps ¦ Switching capacity: 68 Gbps ¦ Latency (1 Gbps): 3.8 µs ¦ Latency (10 Gbps): 1.6 µs
Capacity: Jumbo frame size: 9220 ¦ IPv4 routing table entries: 2000 ¦ IPv6 routing table entries: 1000
MAC Address Table Size: 32K entries
Routing Protocol: OSPF, RIP, RIP-1, RIP-2, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, CIDR
Remote Management Protocol: SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SSH, SSH-2, CLI, XRMON
Features: Flow control, full duplex capability, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, SNTP support, sFlow, STP support, MSTP support, TFTP support, ACL support, QoS, Jumbo Frames support, DHCP server, MLD snooping, STP Root Guard, UDLD, LLDP support, DHCP relay, LACP, MIB, MAC address lockout, dynamic ARP protection, DHCP protection, GVRP, MVRP, NDP, CoS, SNMP support, ToS, OpenFlow support, CPU protection, ICMP, ICMP Router Discovery Protocol (IRDP), VXLAN, MIB II
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
Power: AC 120/230 V (50/60 Hz)
Dimensions (WxDxH): 10 in x 10 in x 1.7 in
Weight: 4.85 lbs
Localization: English / United States
Manufacturer Warranty: Limited lifetime warranty
Device Type: Switch - 12 ports - L3 - managed - stackable
Enclosure Type: Rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 12 x 10/100/1000 (PoE+) + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink) + 2 x 10/100/1000
Power Over Ethernet (PoE): PoE+
PoE Budget: 139 W
Performance: Throughput: 41.7 Mpps ¦ Switching capacity: 68 Gbps ¦ Latency (1 Gbps): 3.8 µs ¦ Latency (10 Gbps): 1.6 µs
Capacity: Jumbo frame size: 9220 ¦ IPv4 routing table entries: 2000 ¦ IPv6 routing table entries: 1000
MAC Address Table Size: 32K entries
Routing Protocol: OSPF, RIP, RIP-1, RIP-2, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, CIDR
Remote Management Protocol: SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SSH, SSH-2, CLI, XRMON
Encryption Algorithm: MD5, SSL
Authentication Method: RADIUS, PAP, CHAP, TACACS, TACACS+
Features: Flow control, full duplex capability, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, SNTP support, sFlow, STP support, MSTP support, TFTP support, ACL support, QoS, Jumbo Frames support, DHCP server, MLD snooping, STP Root Guard, UDLD, LLDP support, DHCP relay, LACP, MIB, MAC address lockout, dynamic ARP protection, DHCP protection, GVRP, MVRP, NDP, CoS, SNMP support, ToS, OpenFlow support, CPU protection, ICMP, ICMP Router Discovery Protocol (IRDP), VXLAN, MIB II
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
Processor: 1 x ARM Cortex-A9: 1.016 GHz
RAM: 1 GB DDR3 SDRAM
Flash Memory: 4 GB
Interfaces: 12 x 1000Base-T RJ-45 PoE+ ¦ 2 x Gigabit / 10Gbit LAN SFP+ ¦ 1 x serial (console) ¦ 2 x 1000Base-T RJ-45
Expansion Slots: 1 (total) / 1 (free) x expansion slot
Installed Modules Qty (Max): 0 (installed) / 2 (max)
Power Device: Internal power supply
Installed Qty: 1
Voltage Required: AC 120/230 V (50/60 Hz)
Compliant Standards: CISPR 22 Class A, CISPR 24, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, ICES-003 Class A, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07 Second Edition, VCCI Class A, IEC 60825-1: 2007, CNS 13438, EN 55024: 2010, EN 55022: 2010, IEC 60950-1: 2005 + A1: 2009 + A2: 2013, EN 60825-1: 2007, FCC CFR47 Part 15 A, EN 60950-1: 2006+A11: 2009+A1: 2010+A12: 2011+A2: 2013
Localization: English / United States
Software Included: Command Line Interface (CLI), HP Web browser, HP Intelligent Management Center
Width: 10 in
Depth: 10 in
Height: 1.7 in
Weight: 4.85 lbs
Service & Support: Limited warranty - lifetime
Min Operating Temperature: 32 °F
Max Operating Temperature: 113 °F
Humidity Range Operating: 15 - 95% (non-condensing)
Min Storage Temperature: -40 °F
Max Storage Temperature: 158 °F
Humidity Range Storage: 15 - 95% (non-condensing)
COO: CHINA / TAIWAN
Unit of Measure
Item Weight
8.35Ships via UPS
YBrand
HP
$10,406.84
$11,984.00
$14,688.89
$16,915.00
$88,513.69
$101,928.00
$41,303.44
$47,563.00
