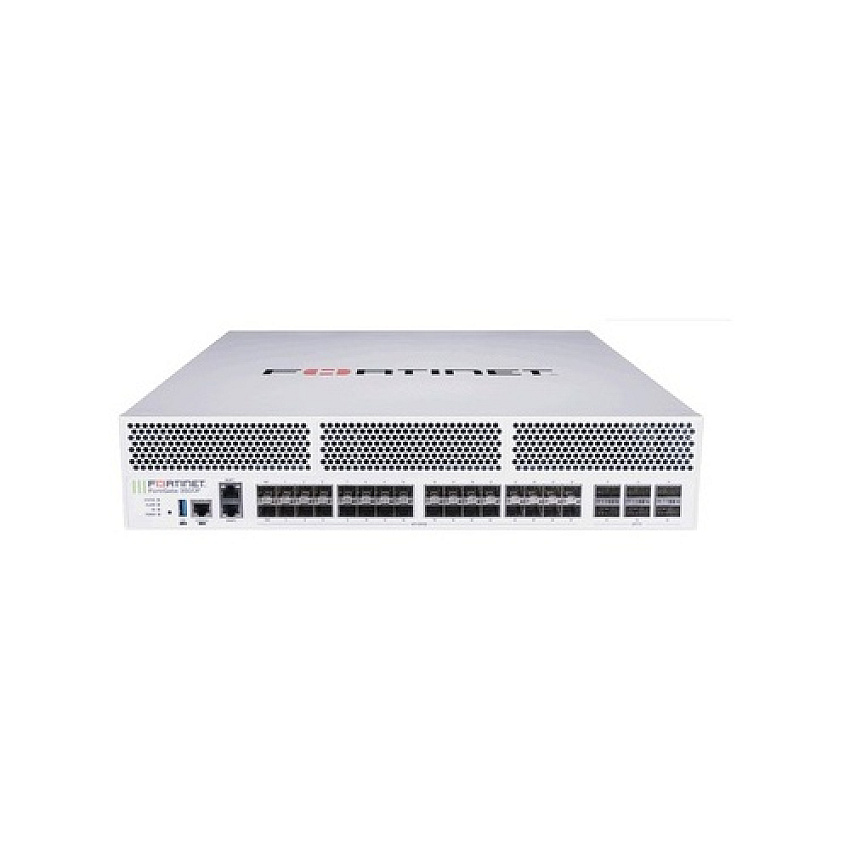

Fortinet Hw Fg-3501f (FG3501F)
Model: FG3501F
Fortinet Hw Fg-3501f (FG3501F)
Model: FG3501F
-
HW FG-3501F
-
Out Of Stock
Product Description
6x 100GE/ 40GE QSFP28 slots and 32x 25GE/ 10GE SFP28 slots, 2x 10GE RJ45 Management Ports, SPU NP7 and CP9 hardware accelerated, 4 TB SSD onboard storage, and 2 AC power supplies
Product Specs
Manufacturer
FortinetCategories
Fortinet Computer AccessoriesFortinet Networking, Cables & AccessoriesFortinet Network DevicesManufacturer Stock No.
FG-3501FMPN
FTNFG3501FModel#
FG3501FUNSPSC Code
0Information
Product Description: Fortinet FortiGate 3501F - security applianceDevice Type: Security appliance
Form Factor: Front to back airflow rack-mountable - 2U
Processor: Fortinet FortiASIC CP9/NP7
Hard Drive: 2 TB x 2
Data Link Protocol: Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet
Performance: IPS throughput (enterprise traffic mix): 72 Gbps ¦ NGFW throughput (enterprise traffic mix): 65 Gbps ¦ Threat protection throughput (enterprise traffic mix): 63 Gbps ¦ Firewall throughput (1518-byte UDP): 595 Gbps ¦ Firewall throughput (512-byte UDP): 590 Gbps ¦ Firewall throughput (64-byte UDP): 420 Gbps ¦ IPv6 firewall throughput (1518-byte UDP): 595 Gbps ¦ IPv6 firewall throughput (512-byte UDP): 590 Gbps ¦ IPv6 firewall throughput (86-byte UDP): 420 Gbps ¦ Firewall latency (64-byte UDP): 2.98 µs ¦ Firewall throughput: 630 Mpps ¦ VPN throughput (512-bit IPSec): 165 Gbps ¦ VPN throughput (SSL): 16 Gbps ¦ SSL inspection throughput: 55 Gbps ¦ Application control throughput: 135 Gbps ¦ CAPWAP throughput: 65 Gbps
Capacity: Concurrent TCP sessions: 140000000 ¦ New TCP sessions per second: 1000000 ¦ Firewall policies: 200000 ¦ Gateway to gateway IPSec VPN Tunnels: 40000 ¦ Client to gateway IPSec VPN tunnels: 200000 ¦ Concurrent SSL VPN users: 30000 ¦ SSL inspection CPS: 60000 ¦ SSL inspection concurrent sessions: 15000000 ¦ Virtual domains: 10 ¦ Maximum virtual domains: 500 ¦ Number of FortiSwitches: 300 ¦ Number of FortiAP devices: 4096 ¦ Number of FortiAP devices (tunnel): 2048 ¦ Number of FortiToken devices: 20000
Included Accessories: 2 x SR 10Gbps SFP+ transceivers
Power: AC 100-240 V (50/60 Hz)
Power Redundancy: Yes
Dimensions (WxDxH): 17.4 in x 21.9 in x 3.5 in
Weight: 45.41 lbs
Device Type: Security appliance
Height (Rack Units): 2U
Width: 17.4 in
Depth: 21.9 in
Height: 3.5 in
Weight: 45.41 lbs
Processors Installed: Fortinet FortiASIC CP9/NP7
Hard Drive: SSD 2 TB x 2
Form Factor: Rack-mountable
Airflow Direction: Front to back airflow
Connectivity Technology: Wired
Data Link Protocol: Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet
Network / Transport Protocol: TCP/IP, UDP/IP, IPSec, SCTP, HTTP, HTTPs, IPv4, IPv6
Remote Management Protocol: HTTP, HTTPS
Performance: IPS throughput (enterprise traffic mix): 72 Gbps ¦ NGFW throughput (enterprise traffic mix): 65 Gbps ¦ Threat protection throughput (enterprise traffic mix): 63 Gbps ¦ Firewall throughput (1518-byte UDP): 595 Gbps ¦ Firewall throughput (512-byte UDP): 590 Gbps ¦ Firewall throughput (64-byte UDP): 420 Gbps ¦ IPv6 firewall throughput (1518-byte UDP): 595 Gbps ¦ IPv6 firewall throughput (512-byte UDP): 590 Gbps ¦ IPv6 firewall throughput (86-byte UDP): 420 Gbps ¦ Firewall latency (64-byte UDP): 2.98 µs ¦ Firewall throughput: 630 Mpps ¦ VPN throughput (512-bit IPSec): 165 Gbps ¦ VPN throughput (SSL): 16 Gbps ¦ SSL inspection throughput: 55 Gbps ¦ Application control throughput: 135 Gbps ¦ CAPWAP throughput: 65 Gbps
Capacity: Concurrent TCP sessions: 140000000 ¦ New TCP sessions per second: 1000000 ¦ Firewall policies: 200000 ¦ Gateway to gateway IPSec VPN Tunnels: 40000 ¦ Client to gateway IPSec VPN tunnels: 200000 ¦ Concurrent SSL VPN users: 30000 ¦ SSL inspection CPS: 60000 ¦ SSL inspection concurrent sessions: 15000000 ¦ Virtual domains: 10 ¦ Maximum virtual domains: 500 ¦ Number of FortiSwitches: 300 ¦ Number of FortiAP devices: 4096 ¦ Number of FortiAP devices (tunnel): 2048 ¦ Number of FortiToken devices: 20000
Status Indicators: Power, status, alarm, HA
Features: VPN support, Trusted Platform Module (TPM), CAPWAP support, SSL inspection, IP tunnel acceleration
Encryption Algorithm: SSL, 256-bit AES, 256-bit SHA, TLS 1.3
Interfaces: 1 x USB 3.0 ¦ 1 x console - RJ-45 ¦ 2 x 1 Gigabit Ethernet/10Gb Ethernet (management) - RJ-45 (WAN) ¦ 2 x 10Gb Ethernet/25Gb Ethernet (HA) - SFP+/SFP28 ¦ 30 x 1 Gigabit Ethernet/10Gb Ethernet/25Gb Ethernet - SFP/SFP+/SFP28 ¦ 6 x 40Gb Ethernet/100Gb Ethernet - QSFP+/QSFP28
Included Accessories: 2 x SR 10Gbps SFP+ transceivers
Compliant Standards: UL, VCCI, ICSA IPSec certified, ICSA Firewall certified, cUL, ICSA Antivirus, CB, FCC Part 15 A, RCM, ICSA SSL-VPN, ICSA IPS, ICSA IPv6, ICSA USGv6
Power Device: Internal power supply - hot-plug
Installed Qty: 2
Max Supported Qty: 2
Power Redundancy: Yes
Voltage Required: AC 100-240 V (50/60 Hz)
Power Consumption Operational: 765 Watt
OS Provided: FortiOS
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 20 - 90% (non-condensing)
COO: TAIWAN
TAA compliance: Yes
