HW FANT-08ABGN-1213-D-R
-
Special order arrives within 3-7 weeks.
Product Description

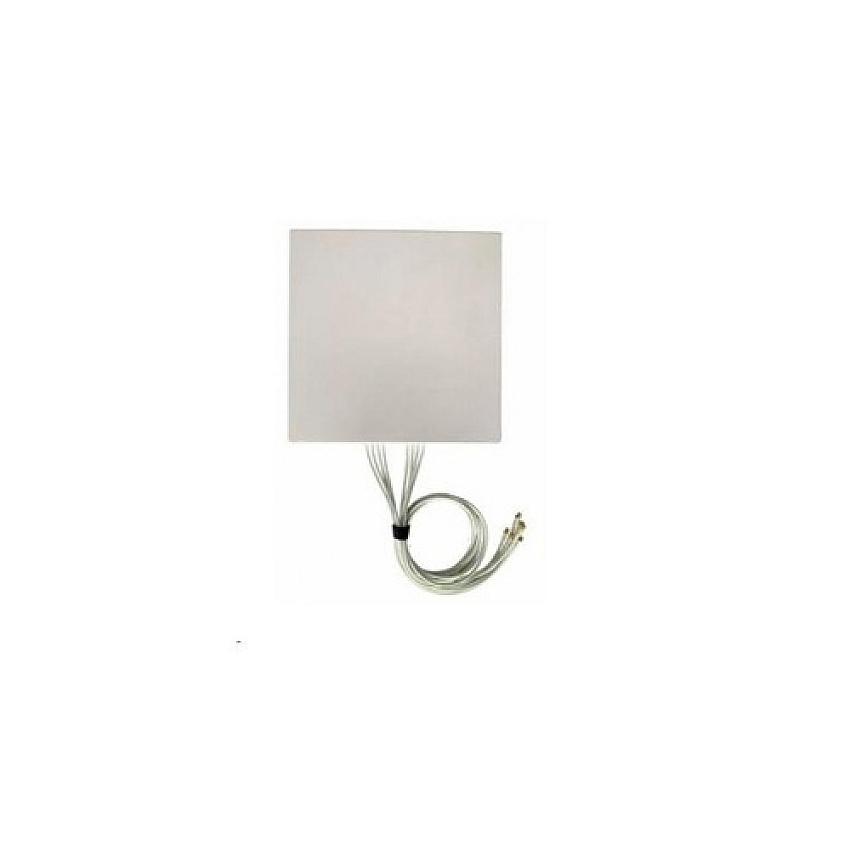

2.4/5 GHz 12/13 dBi Directional Antenna (H:50/40/V:45/28) with 8 RPSMA Plugs
Product Specs
Manufacturer
FortinetCategories
Fortinet Computer AccessoriesFortinet Networking, Cables & AccessoriesFortinet Network AccessoriesManufacturer Stock No.
FANT-08ABGN-1213-D-RMPN
FTNFANT08ABGN1213DRModel#
FANT08ABGN1213DRUNSPSC Code
0Information
Product Description: Fortinet FANT-08ABGN-1213-D-R - antennaDimensions (WxDxH): 12 in x 12 in x 1.5 in
Weight: 33.51 oz
Product Type: Antenna
Compliant Standards: IP54
Directivity: Directional
Intended For: Wi-Fi
Gain: 12 dBi (for 2.4 GHz), 13 dBi (for 5 GHz)
Frequency Range: 5.150 - 5.850 GHz, 2400 - 2500 MHz
Designed For: FortiAP 221E, 223E, 231F, 234F, 23JF, 431F, 432F, 433F, 831F, C24JE, U231F, U234F, U24JEV, U321EV, U323EV, U421EV, U423EV, U431F, U432F, U433F; FortiAP Universal Series U24JEV, U421EV, U422EV, U423EV, U431F, U433F
Antenna Placing / Mounting: Outdoor, indoor
Width: 12 in
Depth: 12 in
Height: 1.5 in
Weight: 33.51 oz
Product Type: Antenna
Cable Length: 36 in
Features: 4 x horizontal polarization, 4 x vertical polarization, front-to-back ratio 19 dB, port-to-port isolation 18 dB (for 2.4 GHz), port-to-port isolation 25 dB (for 5 GHz), max power 50 Watts, wind load 100 mph (160 km/h)
Compliant Standards: IP54
Min Operating Temperature: -40 °F
Max Operating Temperature: 140 °F
Connector Provided: 8 x RP-SMA
Impedance: 50 Ohm
Directivity: Directional
Frequency Range: 5.150 - 5.850 GHz, 2400 - 2500 MHz
Gain: 12 dBi (for 2.4 GHz), 13 dBi (for 5 GHz)
Intended For: Wi-Fi
Horizontal Beamwidth: 40°, 50°, 28°, 45°
Vertical Beamwidth: 40°, 50°, 28°, 45°
Antenna Placing / Mounting: Outdoor, indoor
Designed For: Fortinet FortiAP 221E, 223E, 231F, 234F, 23JF, 431F, 432F, 433F, 831F, C24JE, U231F, U234F, U24JEV, U321EV, U323EV, U421EV, U423EV, U431F, U432F, U433F ¦ Fortinet FortiAP Universal Series U24JEV, U421EV, U422EV, U423EV, U431F, U433F
COO: TAIWAN
TAA compliance: Yes
