Fortinet Hw Fant-04abgn-8065-p-n (FANT04ABGN8065PN)
Fortinet Hw Fant-04abgn-8065-p-n (FANT04ABGN8065PN)
-
HW FANT-04ABGN-8065-P-N
-
Out Of Stock
Product Description

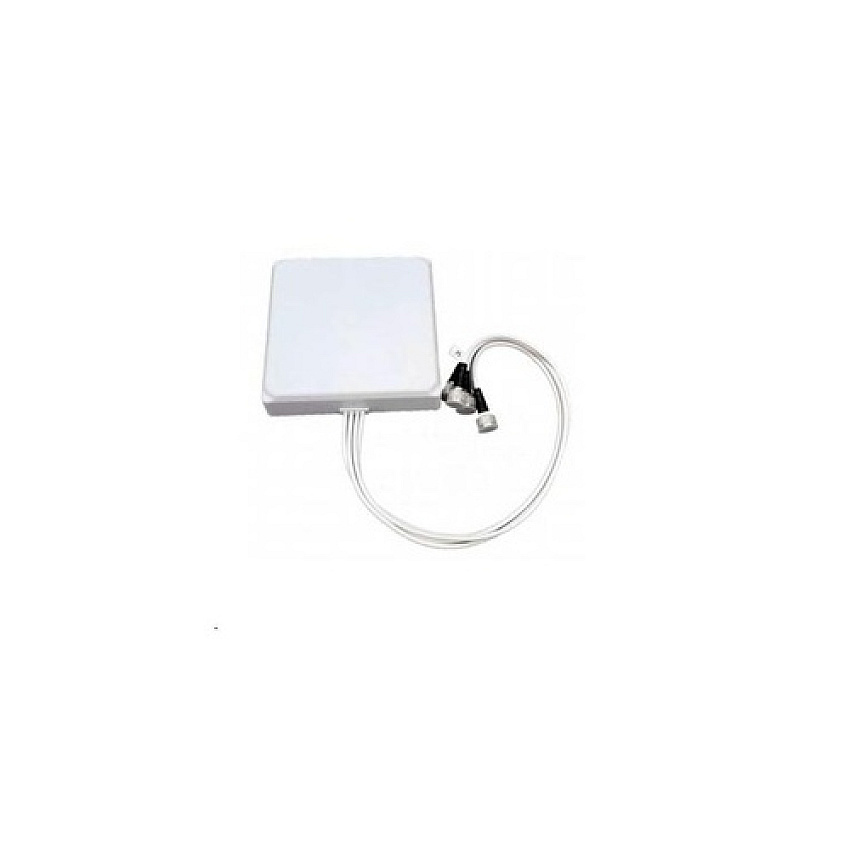

DIRECTIONAL 2.4/5GHz 8/6.5dBi Wi-Fi Patch (H:60/65/V:65/70) Antenna with 4 N-Style Connector
Product Specs
Manufacturer
FortinetCategories
Fortinet Computer AccessoriesFortinet Networking, Cables & AccessoriesFortinet Network AccessoriesManufacturer Stock No.
FANT-04ABGN-8065-P-NMPN
FTNFANT04ABGN8065PNModel#
FANT04ABGN8065PNUNSPSC Code
0Information
Product Description: Fortinet FANT-04ABGN-8065-P-N - antennaForm Factor: Patch
Dimensions (WxDxH): 7.5 in x 7.5 in x 1.5 in
Weight: 2.5 lbs
Product Type: Antenna
Compliant Standards: IP66
Package Content: Articulating bracket
Intended For: Wi-Fi
Gain: 8 dBi (for 2.4 - 2.5 GHz), 6.5 dBi (for 5.1 - 5.9 GHz)
Frequency Range: 5.1 - 5.9 GHz, 2400 - 2500 MHz
Designed For: FortiAP 221E, 223E, 231F, 234F, 23JF, 431F, 432F, 433F, 831F, C24JE, U231F, U234F, U24JEV, U321EV, U323EV, U421EV, U423EV, U431F, U432F, U433F; FortiAP Universal Series U24JEV, U421EV, U422EV, U423EV, U431F, U433F
Antenna Placing / Mounting: Outdoor, indoor
Width: 7.5 in
Depth: 7.5 in
Height: 1.5 in
Weight: 2.5 lbs
Product Type: Antenna
Package Content: Articulating bracket
Cable Length: 24 in
Features: Port-to-port isolation 30 dB (for 5 GHz), front-to-back ratio 13 dB (for 2.4 GHz), port-to-port isolation 25 dB (for 2.4 GHz), front-to-back ratio 15 dB (for 5 GHz)
Compliant Standards: IP66
Min Operating Temperature: -40 °F
Max Operating Temperature: 140 °F
Connector Provided: 4 x N-Series connector male
Form Factor: Patch
Impedance: 50 Ohm
Frequency Range: 5.1 - 5.9 GHz, 2400 - 2500 MHz
Gain: 8 dBi (for 2.4 - 2.5 GHz), 6.5 dBi (for 5.1 - 5.9 GHz)
Intended For: Wi-Fi
Voltage Standing Wave Ratio (VSWR): 2.0: 1
Horizontal Beamwidth: 60°, 65°
Vertical Beamwidth: 70°, 65°
Antenna Placing / Mounting: Outdoor, indoor
Designed For: Fortinet FortiAP 221E, 223E, 231F, 234F, 23JF, 431F, 432F, 433F, 831F, C24JE, U231F, U234F, U24JEV, U321EV, U323EV, U421EV, U423EV, U431F, U432F, U433F ¦ Fortinet FortiAP Universal Series U24JEV, U421EV, U422EV, U423EV, U431F, U433F
COO: TAIWAN
TAA compliance: Yes
