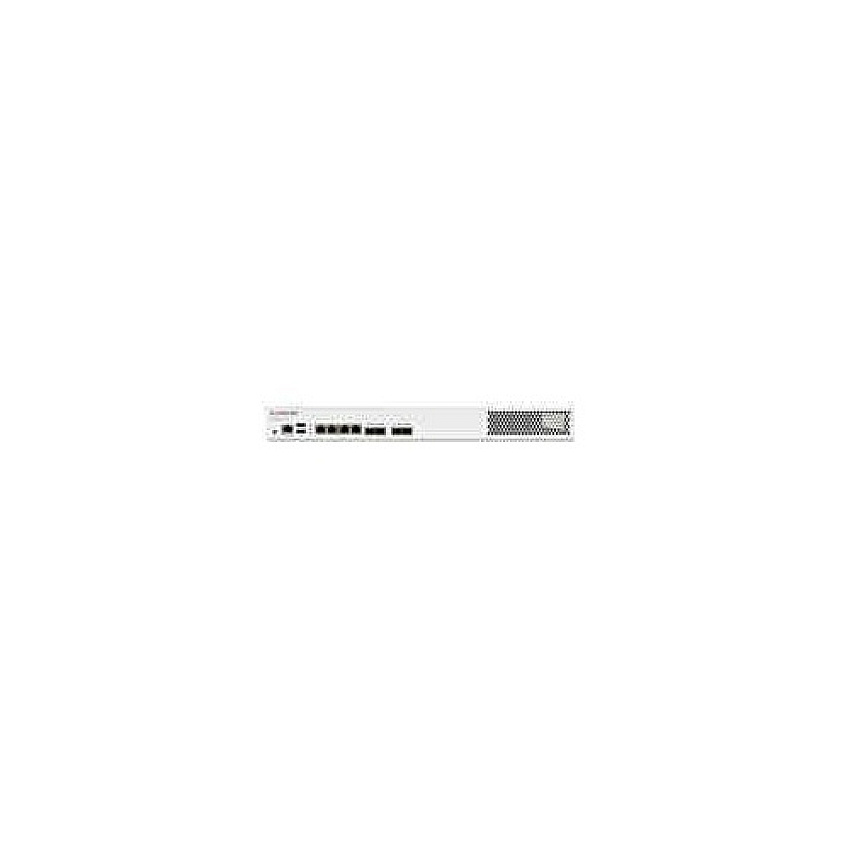

HW FAD-220F
-
Special order arrives within 3-7 weeks.
Product Description
Application Delivery Controller - 4x RJ45 and 4x SFP. 1 x GE RJ45 management port, 1x console port. single power supply.
Product Specs
Manufacturer
FortinetCategories
Fortinet Computer AccessoriesFortinet Networking, Cables & AccessoriesFortinet Network DevicesManufacturer Stock No.
FAD-220FMPN
FTNFA220FModel#
FA220FUNSPSC Code
0Information
Product Description: Fortinet FortiADC 220F - application acceleratorDevice Type: Application accelerator
Form Factor: Rack-mountable - 1U
RAM: 8 GB
Hard Drive: 120 GB x 1
Data Link Protocol: Gigabit Ethernet
Performance: Layer 4 throughput: 5 Gbps ¦ Layer 7 throughput: 4 Gbps ¦ Layer 4 throughput: 160000 connections per second ¦ Layer 4 HTTP throughput: 500000 requests per second ¦ Layer 7 throughput: 40000 connections per second ¦ SSL (1: 1) 2K keys: 1200 connections per second ¦ SSL bulk encryption throughput: 1.2 Gbps ¦ Compression throughput: 2 Gbps
Capacity: Concurrent Layer 4 connections: 6000000 ¦ Virtual domains: 10
VoIP Protocols: SIP
Power: AC 100-240 V (50/60 Hz)
Dimensions (WxDxH): 17.2 in x 16.4 in x 1.7 in
Weight: 20 lbs
Device Type: Application accelerator
Height (Rack Units): 1U
Width: 17.2 in
Depth: 16.4 in
Height: 1.7 in
Weight: 20 lbs
RAM: 8 GB
Hard Drive: SSD 120 GB x 1
Form Factor: Rack-mountable
Connectivity Technology: Wired
Data Link Protocol: Gigabit Ethernet
Network / Transport Protocol: TCP/IP, UDP/IP, FTP, DNS, RTMP, RTSP, HTTP, HTTPs, IPv4, IPv6
Routing Protocol: OSPF, BGP
Remote Management Protocol: SNMP, HTTP, HTTPS, SSH, CLI, JSON, LDAP, RADIUS
Performance: Layer 4 throughput: 5 Gbps ¦ Layer 7 throughput: 4 Gbps ¦ Layer 4 throughput: 160000 connections per second ¦ Layer 4 HTTP throughput: 500000 requests per second ¦ Layer 7 throughput: 40000 connections per second ¦ SSL (1: 1) 2K keys: 1200 connections per second ¦ SSL bulk encryption throughput: 1.2 Gbps ¦ Compression throughput: 2 Gbps
Capacity: Concurrent Layer 4 connections: 6000000 ¦ Virtual domains: 10
Features: NAT support, VPN support, SNAT support, VLAN support, Syslog support, DDos attack prevention, Global Server Load Balancing (GSLB), anti-virus protection, Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE), Web Application Firewall (WAF), Hardware Security Module (HSM) support, Disaster Recovery technology, port trunking, Link Load Balancing (LLB), RESTful APIs, DNSSEC support
Encryption Algorithm: SSL, 256-bit AES, 256-bit SHA, TLS 1.3
Authentication Method: Kerberos, RADIUS, LDAP, NTLM, SAML 2.0
VoIP Protocols: SIP
Interfaces: 4 x 1000Base-T - RJ-45 ¦ 4 x 1000Base-X - SFP
Compliant Standards: CSA, UL, ULC, FCC Part 15 A, VCCI Class A, RCM
Power Device: Internal power supply
Installed Qty: 1
Voltage Required: AC 100-240 V (50/60 Hz)
Power Consumption Operational: 80 Watt
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 5 - 95% (non-condensing)
COO: UNITED STATES
TAA compliance: Yes
