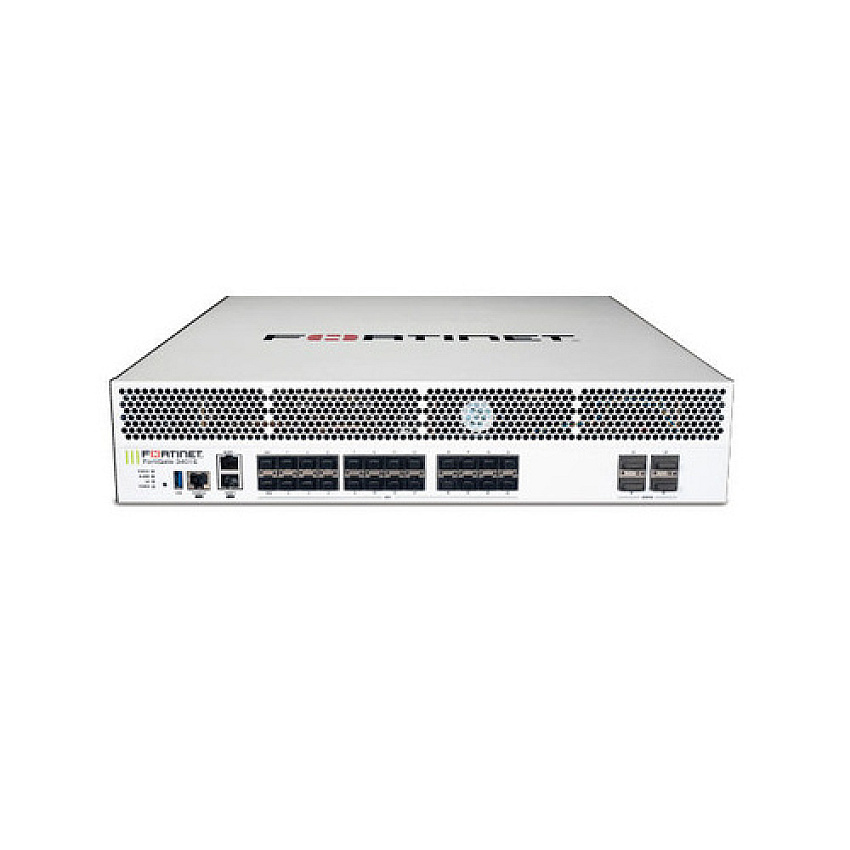

Fortinet Hw Fg-3401e (FG3401E)
Model: FG3401E
Fortinet Hw Fg-3401e (FG3401E)
Model: FG3401E
-
HW FG-3401E
-
Special order arrives within 3-7 weeks.
Product Description
4x 100 GE QSFP28 slots and 24x 25 GE SFP28 slots (including 22x ports, 2x HA ports), 2x GE RJ45 Management ports, SPU NP6 and CP9 hardware accelerated, 4 TB SSD onboard storage, and 2 AC power supplies
Product Specs
Manufacturer
FortinetCategories
Fortinet Computer AccessoriesFortinet Networking, Cables & AccessoriesFortinet Network DevicesManufacturer Stock No.
FG-3401EMPN
FTNFG3401EModel#
FG3401EUNSPSC Code
0Information
Product Description: Fortinet FortiGate 3401E - security applianceForm Factor: Rack-mountable - 2U
Dimensions (WxDxH): 17.4 in x 21.9 in x 3.5 in
Weight: 44.53 lbs
Processor: Fortinet FortiASIC CP9/NP6
Hard Drive: 2 TB x 2
Power: AC 120/230 V (50/60 Hz)
Device Type: Security appliance
Data Link Protocol: Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet
Capacity: Concurrent TCP sessions: 50000000 ¦ New TCP sessions per second: 460000 ¦ Firewall policies: 200000 ¦ Gateway to gateway IPSec VPN Tunnels: 40000 ¦ Client to gateway IPSec VPN tunnels: 200000 ¦ Concurrent SSL VPN users: 30000 ¦ SSL connections per second: 14000 ¦ Concurrent SSL connections: 4900000 ¦ Virtual domains: 10 ¦ Number of FortiSwitches: 256 ¦ Number of FortiAP devices: 1024 ¦ Number of FortiToken devices: 5000 ¦ Maximum number of registered endpoints: 50000
Included Accessories: 2 x 10Gb Ethernet SR SFP+ transceiver
Power Redundancy: Yes
Performance: IPS throughput: 44 Gbps ¦ NGFW throughput: 34 Gbps ¦ Threat protection throughput: 23 Gbps ¦ Firewall throughput (1518-byte UDP): 240 Gbps ¦ Firewall throughput (512-byte UDP): 238 Gbps ¦ Firewall throughput (64-byte UDP): 150 Gbps ¦ Firewall latency (64-byte UDP): 4 µs ¦ Firewall throughput: 225 Mpps ¦ VPN throughput (SSL): 11 Gbps ¦ SSL inspection throughput: 30 Gbps ¦ VPN throughput (512-bit IPSec): 140 Gbps ¦ Application control (AVC) throughput: 86 Gbps ¦ CAPWAP throughput: 15 Gbps
Width: 17.4 in
Depth: 21.9 in
Height: 3.5 in
Weight: 44.53 lbs
Device Type: Security appliance
Height (Rack Units): 2U
Interfaces: 4 x 40Gb Ethernet/100Gb Ethernet - QSFP28 ¦ 22 x 10Gb Ethernet - SFP+ ¦ 2 x 1000Base-T (management) - RJ-45 ¦ 1 x USB 3.0 - Type A ¦ 1 x console - RJ-45
Compliant Standards: UL, VCCI, C-Tick, ICSA IPSec certified, ICSA Firewall certified, cUL, ICSA Antivirus, CB, FCC Part 15 A, IPv6 Ready, USGv6, ICSA SSL-VPN, ICSA IPS
Included Accessories: 2 x 10Gb Ethernet SR SFP+ transceiver
Form Factor: Rack-mountable
Features: Firewall protection, switching, routing, VPN support, traffic shaping, IPv6 support, High Availability, Intrusion Prevention System (IPS), IPSec Virtual Private Network (VPN), anti-malware protection, IPv4 support, web threat protection, CAPWAP support, checksum offload support, IP tunnel acceleration, multicast traffic
Connectivity Technology: Wired
Data Link Protocol: Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet
Network / Transport Protocol: TCP/IP, UDP/IP, IPSec, SCTP
Status Indicators: Power, status, alarm, link/activity, HA
Remote Management Protocol: HTTP, HTTPS
Capacity: Concurrent TCP sessions: 50000000 ¦ New TCP sessions per second: 460000 ¦ Firewall policies: 200000 ¦ Gateway to gateway IPSec VPN Tunnels: 40000 ¦ Client to gateway IPSec VPN tunnels: 200000 ¦ Concurrent SSL VPN users: 30000 ¦ SSL connections per second: 14000 ¦ Concurrent SSL connections: 4900000 ¦ Virtual domains: 10 ¦ Number of FortiSwitches: 256 ¦ Number of FortiAP devices: 1024 ¦ Number of FortiToken devices: 5000 ¦ Maximum number of registered endpoints: 50000
Encryption Algorithm: SSL, 256-bit AES, 256-bit SHA
Performance: IPS throughput: 44 Gbps ¦ NGFW throughput: 34 Gbps ¦ Threat protection throughput: 23 Gbps ¦ Firewall throughput (1518-byte UDP): 240 Gbps ¦ Firewall throughput (512-byte UDP): 238 Gbps ¦ Firewall throughput (64-byte UDP): 150 Gbps ¦ Firewall latency (64-byte UDP): 4 µs ¦ Firewall throughput: 225 Mpps ¦ VPN throughput (SSL): 11 Gbps ¦ SSL inspection throughput: 30 Gbps ¦ VPN throughput (512-bit IPSec): 140 Gbps ¦ Application control (AVC) throughput: 86 Gbps ¦ CAPWAP throughput: 15 Gbps
Power Device: Internal power supply - hot-plug
Voltage Required: AC 120/230 V (50/60 Hz)
Power Consumption Operational: 516 Watt
Installed Qty: 2
Max Supported Qty: 2
Power Redundancy: Yes
OS Provided: FortiOS
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 10 - 90% (non-condensing)
Hard Drive: SSD hot-swap 2 TB x 2
Processors Installed: Fortinet FortiASIC CP9/NP6
COO: Inquire
TAA compliance: Inquire
