Fortinet Hw Fg-1101e (FG1101E)
Model: FG1101E
Fortinet Hw Fg-1101e (FG1101E)
Model: FG1101E
-
HW FG-1101E
-
Out Of Stock
Product Description
2x 40GE QSFP+ slots , 4x 25GE SFP28 slots, 4x 10GE SFP+ slots, 8x GE SFP slots, 18x GE RJ45 ports (including 16x ports, 2x management/HA ports) SPU NP6 and CP9 hardware accelerated, 960GB SSD onboard storage, and 2 AC power supplies
Product Specs
Manufacturer
FortinetCategories
Fortinet Computer AccessoriesFortinet Networking, Cables & AccessoriesFortinet Network DevicesManufacturer Stock No.
FG-1101EMPN
FTNFG1101EModel#
FG1101EUNSPSC Code
0Information

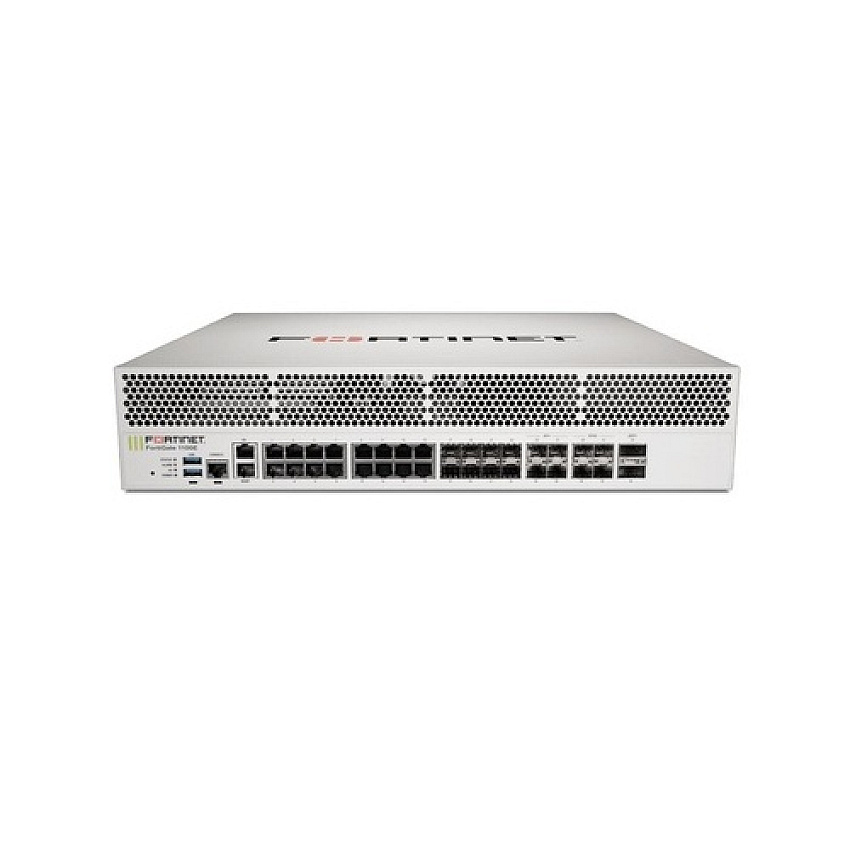

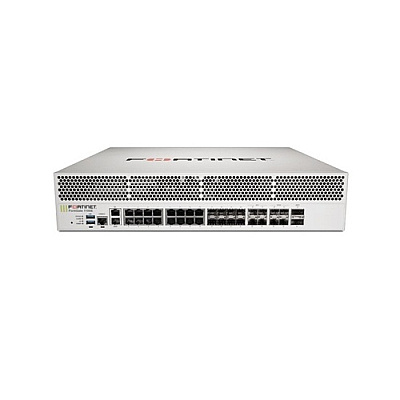

Product Description: Fortinet FortiGate 1101E - security applianceDevice Type: Security appliance
Form Factor: Rack-mountable - 2U
Processor: Fortinet FortiASIC CP9/NP6
Hard Drive: 480 GB x 2
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 25 Gigabit Ethernet
Performance: Firewall throughput (1518-byte packet size): 80 Gbps ¦ Firewall throughput (512-byte packet size): 80 Gbps ¦ Firewall throughput (64-byte packet size): 45 Gbps ¦ IPv6 firewall throughput (86-byte packet size): 45 Gbps ¦ Firewall latency (64-byte UDP): 3 µs ¦ Firewall throughput: 67.5 Mpps ¦ VPN throughput (512-bit IPSec): 48 Gbps ¦ VPN throughput (SSL): 8.4 Gbps ¦ SSL inspection throughput: 10 Gbps ¦ SSL inspection throughput: 6500 connections per second ¦ Application control (AVC) throughput: 26 Gbps ¦ CAPWAP throughput (1444 byte, UDP): 43 Gbps ¦ IPS throughput (enterprise traffic mix): 12.5 Gbps ¦ NGFW throughput: 9.8 Gbps ¦ Threat protection throughput: 7.1 Gbps
Capacity: Concurrent sessions: 8000000 ¦ New sessions per second: 500000 ¦ Firewall policies: 100000 ¦ Gateway to gateway IPSec VPN Tunnels: 20000 ¦ Client to gateway IPSec VPN tunnels: 100000 ¦ Concurrent SSL VPN users: 10000 ¦ SSL inspection concurrent sessions: 780000 ¦ Virtual domains: 10 (maximum 250) ¦ Number of FortiSwitches: 128 ¦ Number of FortiAP devices: 4096 ¦ Number of FortiToken devices: 20000 ¦ Number of registered FortiClients: 20000
Included Accessories: 2 SX SFP transceivers
Power: AC 120/230 V (50/60 Hz)
Power Redundancy: Yes
Dimensions (WxDxH): 17.4 in x 17.6 in x 3.5 in
Weight: 25.46 lbs
Device Type: Security appliance
Height (Rack Units): 2U
Width: 17.4 in
Depth: 17.6 in
Height: 3.5 in
Weight: 25.46 lbs
Processors Installed: Fortinet FortiASIC CP9/NP6
Hard Drive: SSD 480 GB x 2
Form Factor: Rack-mountable
Connectivity Technology: Wired
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 25 Gigabit Ethernet
Network / Transport Protocol: TCP/IP, UDP/IP, IPSec, SCTP, IPv4, IPv6
Remote Management Protocol: HTTP
Performance: Firewall throughput (1518-byte packet size): 80 Gbps ¦ Firewall throughput (512-byte packet size): 80 Gbps ¦ Firewall throughput (64-byte packet size): 45 Gbps ¦ IPv6 firewall throughput (86-byte packet size): 45 Gbps ¦ Firewall latency (64-byte UDP): 3 µs ¦ Firewall throughput: 67.5 Mpps ¦ VPN throughput (512-bit IPSec): 48 Gbps ¦ VPN throughput (SSL): 8.4 Gbps ¦ SSL inspection throughput: 10 Gbps ¦ SSL inspection throughput: 6500 connections per second ¦ Application control (AVC) throughput: 26 Gbps ¦ CAPWAP throughput (1444 byte, UDP): 43 Gbps ¦ IPS throughput (enterprise traffic mix): 12.5 Gbps ¦ NGFW throughput: 9.8 Gbps ¦ Threat protection throughput: 7.1 Gbps
Capacity: Concurrent sessions: 8000000 ¦ New sessions per second: 500000 ¦ Firewall policies: 100000 ¦ Gateway to gateway IPSec VPN Tunnels: 20000 ¦ Client to gateway IPSec VPN tunnels: 100000 ¦ Concurrent SSL VPN users: 10000 ¦ SSL inspection concurrent sessions: 780000 ¦ Virtual domains: 10 (maximum 250) ¦ Number of FortiSwitches: 128 ¦ Number of FortiAP devices: 4096 ¦ Number of FortiToken devices: 20000 ¦ Number of registered FortiClients: 20000
Status Indicators: Power, status, alarm, HA
Features: Firewall protection, VPN support, traffic shaping, content filtering, antivirus analysis, Intrusion Prevention System (IPS), anti-malware protection, web threat protection, CAPWAP support, Zero-touch provisioning (ZTP)
Encryption Algorithm: SSL, 256-bit AES, 256-bit SHA, TLS 1.3
Interfaces: 2 x 40Gb Ethernet - QSFP+ ¦ 4 x 10Gb Ethernet/25Gb Ethernet - SFP+/SFP28 ¦ 4 x 10Gb Ethernet - SFP+ ¦ 8 x 1000Base-X - SFP (mini-GBIC) ¦ 16 x 1000Base-T - RJ-45 ¦ 2 x 1000Base-T (management) - RJ-45 ¦ 1 x console - RJ-45 ¦ 2 x USB 3.0 - Type A
Included Accessories: 2 SX SFP transceivers
Compliant Standards: UL, VCCI, C-Tick, ICSA IPSec certified, ICSA Firewall certified, cUL, ICSA Antivirus, CB, FCC Part 15 A, IPv6 Ready, USGv6, ICSA SSL-VPN, ICSA IPS
Power Device: Internal power supply - hot-plug
Installed Qty: 2
Max Supported Qty: 2
Power Redundancy: Yes
Voltage Required: AC 120/230 V (50/60 Hz)
Power Consumption Operational: 222 Watt
OS Provided: FortiOS
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 10 - 90% (non-condensing)
COO: Inquire
TAA compliance: Inquire
