Eaton 9px 6k Ups (9PX6K)
Eaton 9px 6k Ups (9PX6K)
-

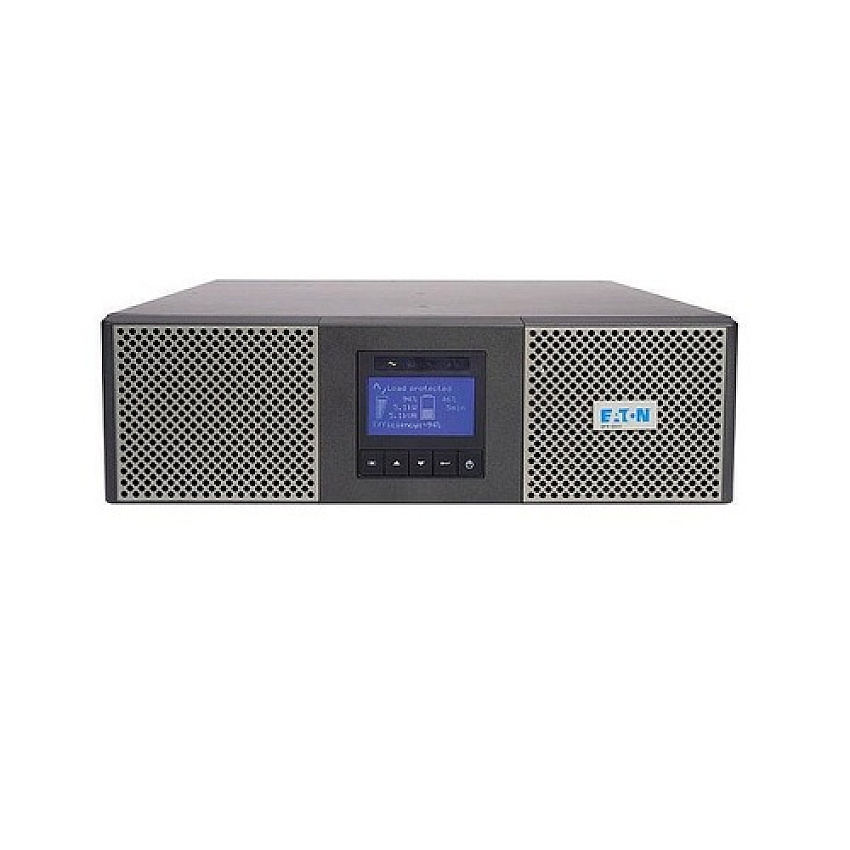

EATON 9PX 6K UPS
-
Out Of Stock
Product Description
9PX 6 kVA UPS 208V
Product Specs
Manufacturer
EatonManufacturer Stock No.
9PX6KMPN
EAT9PX6KModel#
9PX6KUPC Code
743172039248UNSPSC Code
0Information
Product Description: Eaton 9PX 9PX6K - UPS - 5.4 kW - 6000 VADevice Type: UPS - Power Factor Correction (PFC) - external
Rack Size: 19" - 3U
Weight: 106.04 lbs
Input Voltage: AC 200/208/220/230/240 V
Output Voltage: AC 208 V
Power Capacity: 5.4 kW / 6000 VA
Input Connectors: Power NEMA L6-30
Output connectors: 2 x power NEMA L6-30 ¦ 2 x power NEMA L6-20 ¦ 1 x hardwire
Battery: Expandable
Run Time (Up To): 11 min at half load
Networking: Ethernet 10/100, RS-232, USB
Remote Management Protocol: SNMP 1, Telnet, SNMP 3, HTTP, TFTP, SSH, CLI
Color: Black, silver
System Requirements: Linux, Apple MacOS X, Microsoft Windows Vista / XP / 7, Microsoft Windows Server 2008
Dimensions (WxDxH): 17.3 in x 28.4 in x 5.1 in
Manufacturer Warranty: 2-year warranty
Device Type: UPS - Power Factor Correction (PFC) - external
Height (Rack Units): 3U
Rack Size: 19"
Color: Black, silver
UPS Technology: On-line
Supported Power Modules Qty: 4
Input Voltage: AC 200/208/220/230/240 V
Input Voltage Range: AC 176 - 276 V
Frequency Provided: 50/60 Hz
Input Connectors: Power NEMA L6-30
Power Output Connectors Details: 2 x power NEMA L6-30 ¦ 2 x power NEMA L6-20 ¦ 1 x hardwire
Output Voltage: AC 208 V 50/60 Hz
Power Capacity: 5.4 kW / 6000 VA
Surge Suppression: Yes
Circuit Protection: Circuit breaker
Type: Expandable
Run Time (Up To): 11 min at half load ¦ 8 min at 70% load
Remote Management Interface: Ethernet 10/100, RS-232, USB
Remote Management Protocol: SNMP 1, Telnet, SNMP 3, HTTP, TFTP, SSH, CLI
Interfaces: 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x USB - 4 pin USB Type B ¦ 1 x EPO (emergency power off) ¦ 1 x management (Ethernet) - RJ-45
Expansion Slots: 1 (total) / 0 (free) x expansion slot
Cables Included: Serial cable - external ¦ USB cable - external ¦ Power cable
Rack Mounting Kit: Included
Equipment Protection Value: 150000 US Dollars
Features: Advance Battery Management (ABM), LCD display, LED indicators, deep discharge protection, automatic self-test
Compliant Standards: FCC Class A certified, UL, TUV, UL 1778, CB, IEC 62040-3, IEC 62040-1-1, IEC 62040-2, CSA 22.2, EN 62040-1-1, EN 62040-2
Software Included: Intelligent Power Software Suite
OS Required: Linux, Apple MacOS X, Microsoft Windows Vista / XP / 7, Microsoft Windows Server 2008
Service & Support: Limited warranty - 2 years
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Sound Emission: 45 dB
Width: 17.3 in
Depth: 28.4 in
Height: 5.1 in
Weight: 106.04 lbs
COO: PHILIPPINES
TAA compliance: No
