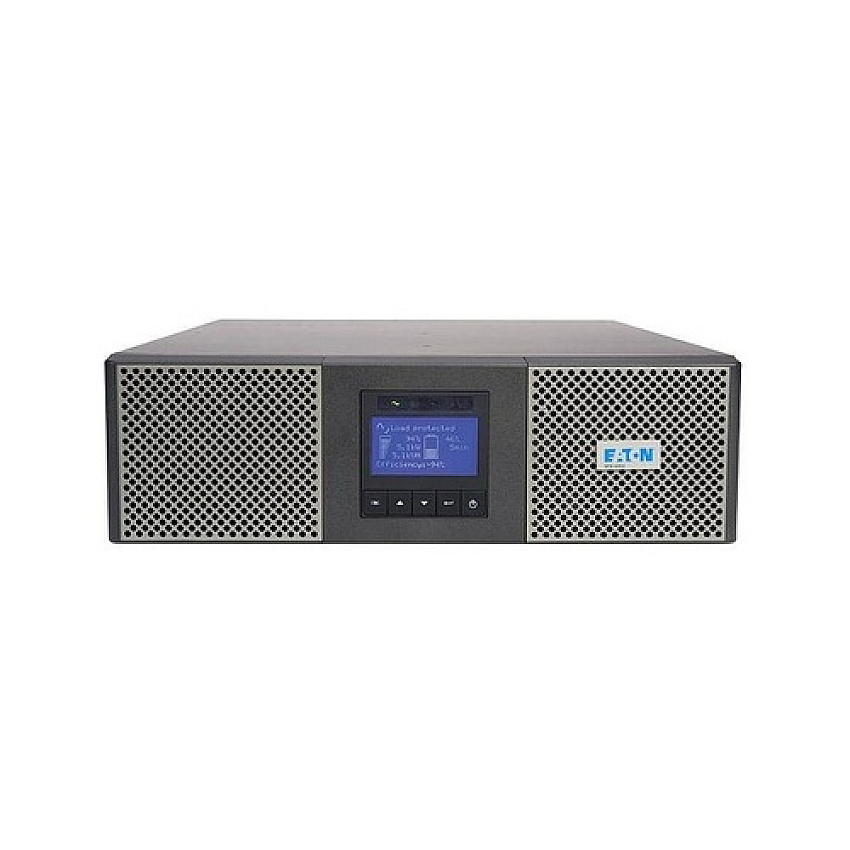

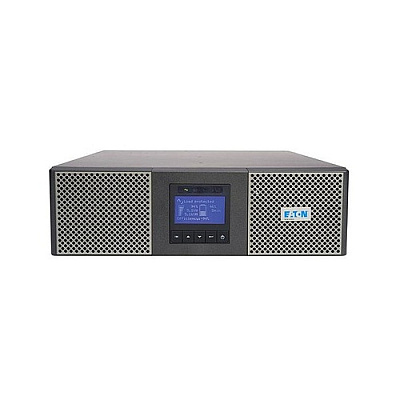

Eaton 9px 6k Sp 120/208 Ups (9PX6KSP)
Eaton 9px 6k Sp 120/208 Ups (9PX6KSP)
-
9PX 6K SP 120/208 UPS
-
In Stock
Product Description
9PX 6K SP 120/208 UPS
Product Specs
Manufacturer
EatonManufacturer Stock No.
9PX6KSPMPN
EAT9PX6KSPModel#
9PX6KSPUPC Code
743172040336UNSPSC Code
0Information
Product Description: Eaton 9PX 9PX6KSP - UPS - 4900 Watt - 5500 VADevice Type: UPS - rack-mountable / external
Rack Size: 19" - 4U
Weight: 157.41 lbs
Input Voltage: AC 120/208 V
Output Voltage: AC 120/208 V
Power Capacity: 4900 Watt / 5500 VA
Input Connectors: Power NEMA L14-30, terminal block
Output connectors: 1 x power NEMA L6-30 ¦ 1 x power NEMA L14-30 ¦ 6 x power NEMA 5-20
Battery: Lead acid - 9 Ah
Battery Form Factor: Plug-in module
Batteries Qty: 2
Run Time (Up To): 5.4 min at full load
Networking: Ethernet 10/100, RS-232, USB
Remote Management Protocol: SNMP, HTTP
Included Accessories: Tower stand, rack mounting rails
Color: Black, silver
Dimensions (WxDxH): 17.3 in x 27.6 in x 6.8 in
Manufacturer Warranty: 2-year warranty
Device Type: UPS - rack-mountable / external
Battery Enclosure Type: Plug-in module
Height (Rack Units): 4U
Rack Size: 19"
Color: Black, silver
UPS Technology: On-line
Input Voltage: AC 120/208 V
Frequency Provided: 50/60 Hz
Frequency Required: 50/60 Hz
Input Connectors: Power NEMA L14-30, terminal block
Power Output Connectors Details: 1 x power NEMA L6-30 ¦ 1 x power NEMA L14-30 ¦ 6 x power NEMA 5-20
Output Voltage: AC 120/208 V 50/60 Hz
Power Capacity: 4900 Watt / 5500 VA
Output Waveform: Sinewave
Surge Suppression: Yes
Quantity: 2
Technology: Lead acid
Voltage Provided: 12 V
Capacity: 9 Ah
Remote Management Interface: Ethernet 10/100, RS-232, USB
Remote Management Protocol: SNMP, HTTP
Interfaces: 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x management (RS-232) - RJ-45 ¦ 1 x management (Ethernet) - RJ-45
Expansion Slots: 1 (total) / 0 (free) x expansion slot
Included Accessories: Tower stand, rack mounting rails
Cables Included: USB cable - external - 6 ft
Rack Mounting Kit: Included
Features: Advance Battery Management (ABM), LCD display, LED indicators
Compliant Standards: NOM, cULus
Software Included: Intelligent Power Manager (up to 10 nodes), Intelligent Power Software Suite
Service & Support: Limited warranty - 2 years ¦ Limited warranty - batteries - 2 years
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Sound Emission: 45 dBA
Width: 17.3 in
Depth: 27.6 in
Height: 6.8 in
Weight: 157.41 lbs
COO: TAIWAN
TAA compliance: Yes
