Eaton 5px 2000h Rt2u G2 (5PX2200HRTG2)
Eaton 5px 2000h Rt2u G2 (5PX2200HRTG2)
-

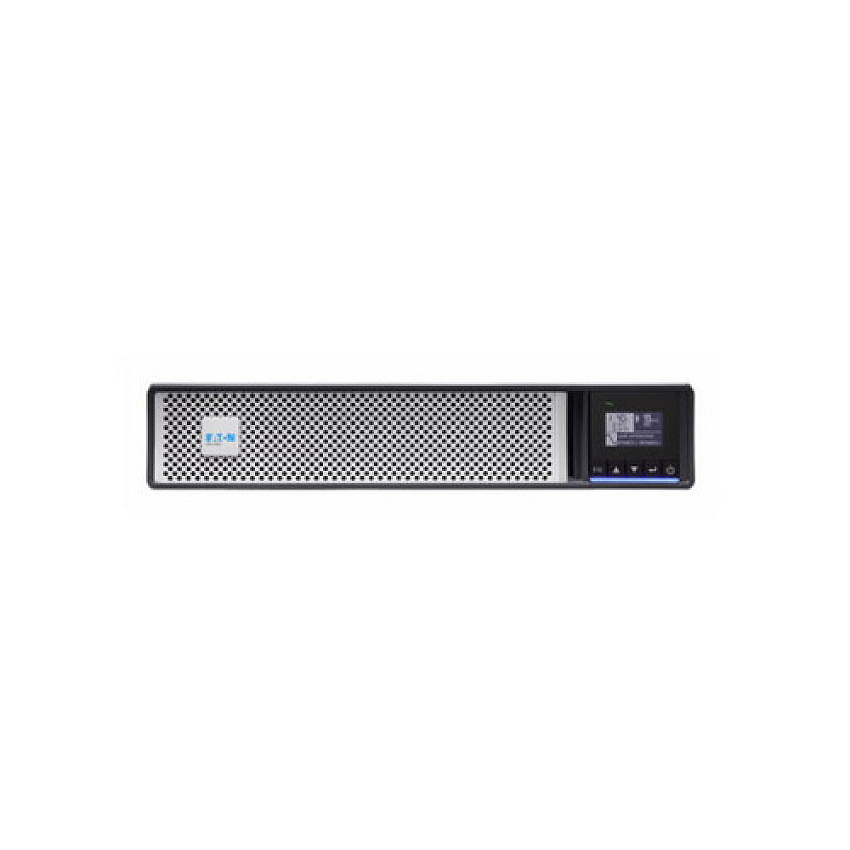

EATON 5PX 2000H RT2U G2
-
Out Of Stock
Product Description
EATON 5PX 2000H RT2U G2
Product Specs
Manufacturer
EatonManufacturer Stock No.
5PX2200HRTG2MPN
EAT5PX2200HRTG2Model#
5PX2200HRTG2UNSPSC Code
0Information
Product Description: Eaton 5PX G2 - UPS - 2200 Watt - 2200 VADevice Type: UPS - rack-mountable / external
Rack Size: 2U
Weight: 62.17 lbs
Input Voltage: AC 208/230 V
Output Voltage: AC 200/208/220/230/240 V + 6% / - 10%
Power Capacity: 2200 Watt / 2200 VA
Input Connectors: 1 x power NEMA L6-20P
Output connectors: 8 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19
Battery: Lead acid
Run Time (Up To): 3.5 min at full load
Networking: RS-232, USB
Included Accessories: Tower stand
Dimensions (WxDxH): 17.2 in x 23.7 in x 3.4 in
Environmental Standards: ENERGY STAR
Manufacturer Warranty: 3-year warranty
Device Type: UPS - rack-mountable / external
Height (Rack Units): 2U
UPS Technology: Line interactive
Input Voltage: AC 208/230 V
Input Voltage Range: AC 160 - 294 V
Input Voltage Range (Adjustable): AC 150 - 294 V
Frequency Provided: 50/60 Hz ± 0.1Hz
Frequency Required: 47 - 70 Hz
Input Connectors: 1 x power NEMA L6-20P
Power Output Connectors Details: 8 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19
Output Voltage: AC 200/208/220/230/240 V + 6% / - 10% - 50/60 Hz
Power Capacity: 2200 Watt / 2200 VA
Output Waveform: Sinewave
Efficiency: 96% AC mode, 82% Battery mode
Technology: Lead acid
Run Time (Up To): 3.5 min at full load ¦ 10 min at half load
Features: Maintenance free, sealed, valve-regulated
Remote Management Interface: RS-232, USB
Interfaces: 1 x management (RS-232) - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type B
Expansion Slots: 1 (total) / 1 (free) x expansion slot
Included Accessories: Tower stand
Cables Included: USB cable - external ¦ RS-232 cable - external ¦ Power cable - external - 6 ft ¦ 2 x power cable (C13-C14) - external
Rack Mounting Kit: Included
Features: Advance Battery Management (ABM), LCD display, Automatic Voltage Regulation (AVR), hot-swappable batteries
Compliant Standards: IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, NOM, IEC 62040-3, FCC, FCC CFR47 Part 15 B, cTUVus, CSA 22.2, EN 62040-3, EN 62040-2: 2006, EN 55011 class B, CISPR 11 class B, FCC Part 15 Class B, EN 62040-1: 2008+A1: 2013, CISPR 32 Class B, UL 1778 5th edition, IEC 62040-2: 2016, IEC 62040-1: 2008+A1: 2013, EN/IEC 62040-2: 2018, IEC 62040-1: 2017 Second Edition
ENERGY STAR: Yes
Service & Support: Limited warranty - 3 years
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 20 - 90% (non-condensing)
Width: 17.2 in
Depth: 23.7 in
Height: 3.4 in
Weight: 62.17 lbs
COO: PHILIPPINES
TAA compliance: No
