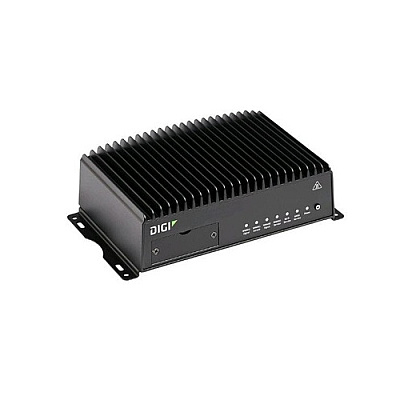

Digi International Digi Tx54 Firstnet Single Lte, Wi-fi, Us (TX54A146)
Model: TX54A146
Digi International Digi Tx54 Firstnet Single Lte, Wi-fi, Us (TX54A146)
Model: TX54A146
-
DIGI TX54 FIRSTNET SINGLE LTE, WI-FI, US
-
Special order arrives within 3-7 weeks.
Product Description
Digi TX54 FirstNet Single LTE, Wi-Fi, US, does not include accessories (pwr supply or antennas), purchase accessory kit (76002084) if power and antennas are needed.
Product Specs
Manufacturer
Digi InternationalCategories
Digi International Computer AccessoriesDigi International Networking, Cables & AccessoriesDigi International RoutersManufacturer Stock No.
TX54-A146MPN
DGITX54A146Model#
TX54A146UNSPSC Code
0Information
Product Description: Digi TX54 - Single LTE-Advanced Pro Cat 12 - wireless router - WWAN - Wi-Fi 5 - Bluetooth, Wi-Fi 5 - desktopDevice Type: Wireless router - wireless cellular modem - 4-port switch (integrated)
Enclosure Type: Desktop
Service Provider: Sprint
Cellular Protocol: FDD LTE, TDD LTE, LTE Advanced Pro
Cellular Band: LTE B13, LTE B2, LTE B4, LTE B12, LTE B3, LTE B7, LTE B20, LTE B1, LTE B26, LTE B5, LTE B29, LTE B8, LTE B66, LTE B30, LTE B41, LTE B18, LTE B19, LTE B46, LTE B9, LTE B14, LTE B32, LTE B42, LTE B43, LTE B48, HSPA B1, HSPA B2, HSPA B4, HSPA B5, HSPA B6, HSPA B8, HSPA B9, HSPA B19
WAN Ports Qty: 1
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Frequency Band: 2.4 GHz / 5 GHz
Data Transfer Rate: 867 Mbps
Network / Transport Protocol: IPSec, FTP, DHCP, DDNS
Routing Protocol: OSPF, RIP-1, RIP-2, BGP, VRRP, GRE, IPv4-to-IPv6 Multicast
Remote Management Protocol: SNMP 2, SNMP 3, HTTP, HTTPS, SSH, SCP, SFTP, SMTP
Features: NAT support, NAPT support, VLAN support, Syslog support, content filtering, MAC address filtering, IP address filtering, Access Point operational mode, web server, DNS server, NTP server, Captive Portal, FTP client, Type of Service (ToS), Hotspot Access Point Capability, IP forwarding support, dynamic DNS client, bridge mode, 2x2 MIMO technology, OpenVPN client, OpenVPN server, mDNS, GRE VPN tunnels
Compliant Standards: IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Power: DC 9 - 36 V
Dimensions (WxDxH): 8.2 in x 5.8 in x 2.5 in
Weight: 3.31 lbs
Localization: North America
Manufacturer Warranty: 3-year warranty
Device Type: Wireless router - 4-port switch (integrated)
Service Provider: Sprint
Enclosure Type: Desktop
Connectivity Technology: Wireless, wired
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Frequency Band: 2.4 GHz / 5 GHz
Data Transfer Rate: 867 Mbps
Network / Transport Protocol: IPSec, FTP, DHCP, DDNS
Routing Protocol: OSPF, RIP-1, RIP-2, BGP, VRRP, GRE, IPv4-to-IPv6 Multicast
Remote Management Protocol: SNMP 2, SNMP 3, HTTP, HTTPS, SSH, SCP, SFTP, SMTP
Encryption Algorithm: Triple DES, RSA, MD5, AES, SSL, SHA-1, SSL 3.0, SSL 2.0, WPA, WPA2, 256-bit AES, WPA-Enterprise, WPA2-Enterprise, IKEv2, 256-bit SHA, TLS 1.2, 512-bit SHA, 384-bit SHA, IKEv1
Authentication Method: RADIUS, X.509 certificates, TACACS+
Features: NAT support, NAPT support, VLAN support, Syslog support, content filtering, MAC address filtering, IP address filtering, Access Point operational mode, web server, DNS server, NTP server, Captive Portal, FTP client, Type of Service (ToS), Hotspot Access Point Capability, IP forwarding support, dynamic DNS client, bridge mode, 2x2 MIMO technology, OpenVPN client, OpenVPN server, mDNS, GRE VPN tunnels
Compliant Standards: IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, EN 60950, EN55024, FCC Part 15 B, MIL-STD 810G, E Mark, AS/NZS CISPR 22, EN 50121-3-2, EN 45545-2, EN 50155, EN 55032, EN 62368, SAE J1113, ISO 7637-2/3, ISO 16750-2
Processor: MIPS 880 MHz
Built-in Devices: GPS, GLONASS, Beidou, Galileo
Status Indicators: Power, signal strength, service, Wi-Fi
Type: Wireless cellular modem
Cellular Protocol: FDD LTE, TDD LTE, LTE Advanced Pro
Cellular Band: LTE B13, LTE B2, LTE B4, LTE B12, LTE B3, LTE B7, LTE B20, LTE B1, LTE B26, LTE B5, LTE B29, LTE B8, LTE B66, LTE B30, LTE B41, LTE B18, LTE B19, LTE B46, LTE B9, LTE B14, LTE B32, LTE B42, LTE B43, LTE B48, HSPA B1, HSPA B2, HSPA B4, HSPA B5, HSPA B6, HSPA B8, HSPA B9, HSPA B19
Max Transfer Rate: 600 Mbps
Interfaces: WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB 3.0: 1 x 9 pin USB Type A ¦ Serial: 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ Antenna: 2 x SMA - LTE ¦ Antenna: 2 x RP-SMA - Wi-Fi ¦ Antenna: 1 x SMA - GPS ¦ Antenna: 1 x - Bluetooth
Expansion Slots: 2 (total) / 2 (free) x Mini-SIM
Antenna: External detachable
Antenna Qty: 6
Power Device: External power adapter
Voltage Required: DC 9 - 36 V
Power Consumption Operational: 20 Watt
Localization: North America
Width: 8.2 in
Depth: 5.8 in
Height: 2.5 in
Weight: 3.31 lbs
Service & Support: Limited warranty - 3 years
Min Operating Temperature: -29.2 °F
Max Operating Temperature: 165.2 °F
Humidity Range Operating: 5 - 95% (non-condensing)
COO: TAIWAN
TAA compliance: Yes
