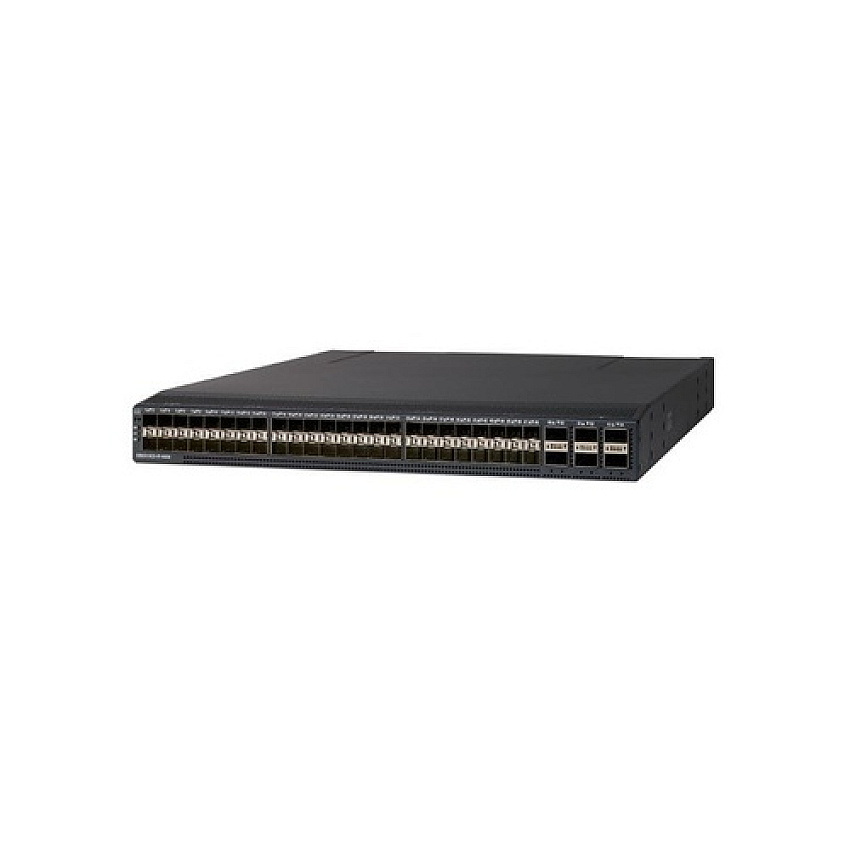

Cisco Ucs Fabric Interconnect 6454 (HXFI6454)
Model: HXFI6454
Cisco Ucs Fabric Interconnect 6454 (HXFI6454)
Model: HXFI6454
-
UCS Fabric Interconnect 6454
-
Special order arrives within 3-7 weeks.
Product Description
DISTRIBUIDOR DE CONEXOES PARA REDES UCS Fabric Interconnect 6454
Product Specs
Manufacturer
CiscoManufacturer Stock No.
HX-FI-6454MPN
CSCHXFI6454Model#
HXFI6454UPC Code
889728193474UNSPSC Code
0Information
Product Description: Cisco UCS 6454 Fabric Interconnect - switch - 54 ports - managed - rack-mountableDevice Type: Switch - 54 ports - managed
Enclosure Type: Front to back airflow rack-mountable 1U
Subtype: 100 Gigabit Ethernet
Ports: 36 x 10/25 Gigabit SFP28 + 4 x 1/10/25 Gigabit SFP28 + 6 x 40/100 Gigabit QSFP28 (uplink) + 8 x 10/25 Gigabit Ethernet or 8/16/32 Gigabit Fibre Channel
Performance: Switching capacity: 3.82 Tbps ¦ Bandwidth: 320 Gbps ¦ Layer 2 hardware forwarding: 3.82 Tbps ¦ Layer 2 hardware forwarding: 4.2 billion bpps
Capacity: VLANs supported: 4000 ¦ Queues per port: 16
MAC Address Table Size: 32000 entries
Jumbo Frame Support: 9216 bytes
Routing Protocol: IGMPv2, IGMP, IGMPv3
Remote Management Protocol: RMON
Features: DCBX support, QoS, Rapid PVST+, LACP support, FET, FCoE support, PFC, WRR, 4 fan modules
Compliant Standards: IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.3bm, IEEE 802.3by, IEEE 802.3bg
Power Redundancy: Optional
Dimensions (WxDxH): 17.3 in x 22.5 in x 1.7 in
Manufacturer Warranty: 3-year warranty
Device Type: Switch - 54 ports - managed
Enclosure Type: Front to back airflow rack-mountable 1U
Subtype: 100 Gigabit Ethernet
Ports: 36 x 10/25 Gigabit SFP28 + 4 x 1/10/25 Gigabit SFP28 + 6 x 40/100 Gigabit QSFP28 (uplink) + 8 x 10/25 Gigabit Ethernet or 8/16/32 Gigabit Fibre Channel
Performance: Switching capacity: 3.82 Tbps ¦ Bandwidth: 320 Gbps ¦ Layer 2 hardware forwarding: 3.82 Tbps ¦ Layer 2 hardware forwarding: 4.2 billion bpps
Capacity: VLANs supported: 4000 ¦ Queues per port: 16
MAC Address Table Size: 32000 entries
Jumbo Frame Support: 9216 bytes
Routing Protocol: IGMPv2, IGMP, IGMPv3
Remote Management Protocol: RMON
Features: DCBX support, QoS, Rapid PVST+, LACP support, FET, FCoE support, PFC, WRR, 4 fan modules
Compliant Standards: IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.3bm, IEEE 802.3by, IEEE 802.3bg
RAM: 64 GB
Interfaces: 36 x 10/25Gbit LAN SFP28 FCOE ¦ 4 x 1/10/25Gbit LAN SFP28 FCOE ¦ 6 x 100Gbit/40Gbit LAN QSFP28 FCOE / uplink ¦ 8 x 10/25Gbit LAN or 8/16/32Gb Fibre Channel SFP28 FCOE / unified port ¦ 1 x 10/100/1000 Base-T RJ-45 management ¦ 1 x USB
Power Device: Internal power supply (not installed) - hot-plug
Max Supported Qty: 2
Power Redundancy: Optional
Power Redundancy Scheme: 1+1 (with optional power supply)
Included Accessories: Chassis accessory kit
Compliant Standards: CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, GB 4943, Directive 2004/108/EC, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2006/95/EC, VCCI Class A, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, KN 61000-4, CAN/CSA-C22.2 No. 60950-1, AS/NZS CISPR22 Class A
Width: 17.3 in
Depth: 22.5 in
Height: 1.7 in
Service & Support: Limited warranty - replacement - 3 years - response time: next business day
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 5 - 95% (non-condensing)
Min Storage Temperature: -40 °F
Max Storage Temperature: 158 °F
Humidity Range Storage: 5 - 95% (non-condensing)
COO: UNITED STATES
TAA compliance: Yes
Unit of Measure
Item Weight
34.85Ships via UPS
