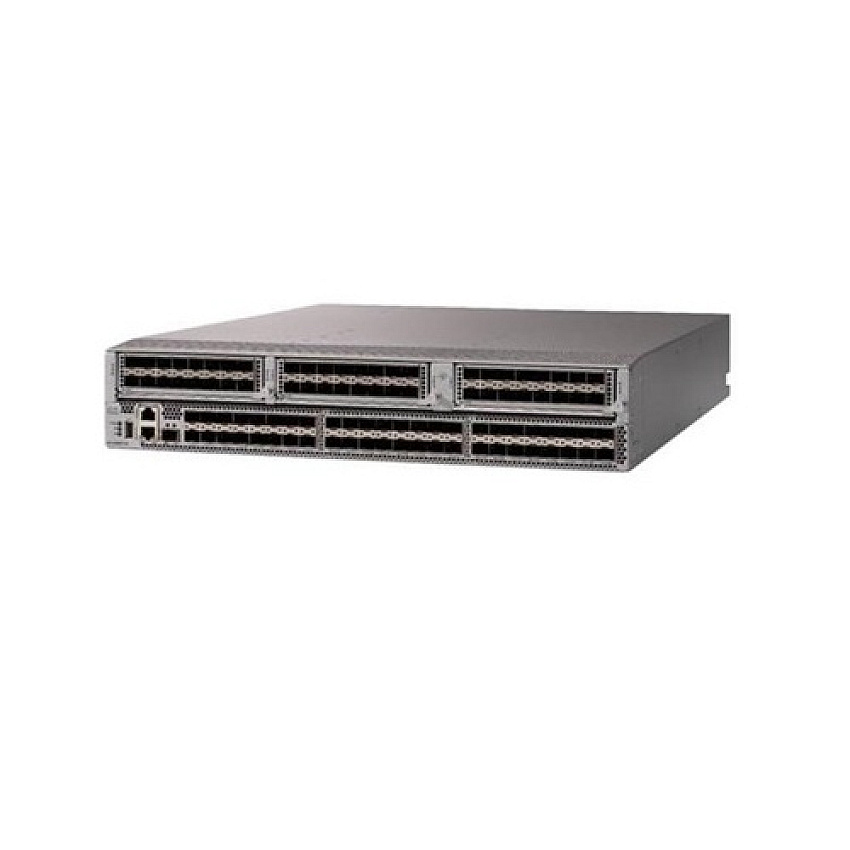

Cisco Mds 9396t, W/ 96 Active Ports + 32g Sfps (DSC9396T96ETK9)
Model: DSC9396T96ETK9
Cisco Mds 9396t, W/ 96 Active Ports + 32g Sfps (DSC9396T96ETK9)
Model: DSC9396T96ETK9
-
MDS 9396T, w/ 96 active ports + 32G SFPs
-
Special order arrives within 3-7 weeks.
Product Description
MDS 9396T, W/ 96 ACTIVE PORTS + 32G SFPS (PORT-SIDE EXHAUST)
Product Specs
Manufacturer
CiscoManufacturer Stock No.
DS-C9396T-96ETK9MPN
CSCDSC9396T96ETK9Model#
DSC9396T96ETK9UPC Code
889728168540UNSPSC Code
0Information
Product Description: Cisco MDS 9396T - switch - 96 ports - managed - rack-mountableDevice Type: Switch - 96 ports - managed
Enclosure Type: Rack-mountable 2U
Subtype: Fibre Channel
Ports: 96 x 32Gb Fibre Channel SFP+
Performance: Aggregate bandwidth: 3 Tbps
Routing Protocol: Address Resolution Protocol (ARP) over Fibre Channel
Remote Management Protocol: RMON, SNMP 3, HTTPS, SMI-S, SSH-2, CLI, SFTP
Features: Syslog support, VRRP support, ACL support, QoS, SNMP trap, FEC, Transparent (N_Port ID Virtualization - NPIV) mode support, RSCN support, port exhaust, Automated Attendant (IVR), Loopback, ISSU, built-in ASIC, FCS, Cisco ISL, NPV Gateway mode, RBAC, TrustSec support, POST, LCB, 2 fan trays, AAA, RDP, VMID support, secure boot, SPAN, event management, broadcast mode, OHMS, zone-based QoS, flow-based QoS
Power: AC 90 - 305 V (50 - 60 Hz)
Power Redundancy: Yes
Dimensions (WxDxH): 17.4 in x 22.3 in x 3.4 in
Weight: 41.62 lbs
Manufacturer Warranty: 1-year warranty
Device Type: Switch - 96 ports - managed
Enclosure Type: Rack-mountable 2U
Subtype: Fibre Channel
Ports: 96 x 32Gb Fibre Channel SFP+
Performance: Aggregate bandwidth: 3 Tbps
Fibre Channel: FC-DA, FC-FLA, FC-FS, FC-GS-3, FC-GS-4, FC-MI, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PLDA, FC-SB-2, FC-SB-3, FC-SW-2, FC-SW-3, FC-Tape, FC-VI, FC-SP, FCP-4, FC-BB-2, FCP, FCP-2, FC-PI-2, FC-BB-5, FC-BB-3, FC-FS-2, FC-GS-5, FC-SW-4, FCP-3, FC-LS, FC-MI-2, FC-PI-4, FC-FS-3, FC-GS-6, FC-PI-3, FC-SW-5, FC-BB-4, FC-IFR, FAIS, FAIS-2, FC-PI-5, FC-LS-2, FC-SP-2, FC-SB-4, FC-DA-2, FC-MI-3, FC-MSQS, FC-BB-6, FC-SB-5, FC-FS-4, FC-SW-6, FC-GS-7, FC-PI-6, FC-LS-3, FC-NVMe
Routing Protocol: Address Resolution Protocol (ARP) over Fibre Channel
Remote Management Protocol: RMON, SNMP 3, HTTPS, SMI-S, SSH-2, CLI, SFTP
Encryption Algorithm: AES
Authentication Method: RADIUS, TACACS+, LDAP
Features: Syslog support, VRRP support, ACL support, QoS, SNMP trap, FEC, Transparent (N_Port ID Virtualization - NPIV) mode support, RSCN support, port exhaust, Automated Attendant (IVR), Loopback, ISSU, built-in ASIC, FCS, Cisco ISL, NPV Gateway mode, RBAC, TrustSec support, POST, LCB, 2 fan trays, AAA, RDP, VMID support, secure boot, SPAN, event management, broadcast mode, OHMS, zone-based QoS, flow-based QoS
Status Indicators: System
Interfaces: 96 x 32Gb Fibre Channel SFP+ LC ¦ 1 x 10/100/1000 Base-T RJ-45 management ¦ 1 x 1000Base-X/10GBase-X SFP+ management ¦ 1 x serial (RS-232) console ¦ 1 x USB
Power Device: Internal power supply - hot-plug
Installed Qty: 2
Max Supported Qty: 2
Power Redundancy: Yes
Power Redundancy Scheme: 1+1
Power Provided: 1200 Watt
Voltage Required: AC 90 - 305 V (50 - 60 Hz)
Power Consumption Operational: 555 Watt
Features: 80 PLUS Platinum efficiency, bidirectional airflow
Compliant Standards: CISPR 22 Class A, EN 60950, EN 61000-3-2, IEC 60950, EN 61000-3-3, EN55024, UL 60950, EN50082-1, EN 61000-6-1, AS/NZS 3260, EMC, ICES-003 Class A, EN 60825, AS/NZS 3548 Class A, IEC 60825, CAN/CSA C22.2 No. 60950, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, 21 CFR 1040, TS001
Software Included: 3 x MDS 9396T 32G FC switch 16-port upgrade license, MDS 9396T Supervisor/Fabric, NX-OS SW Release 8.3.1
Width: 17.4 in
Depth: 22.3 in
Height: 3.4 in
Weight: 41.62 lbs
Service & Support: Limited warranty - advance parts replacement - 1 year - response time: 10 days ¦ Technical support - software application support - 90 days
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 10 - 90% (non-condensing)
Min Storage Temperature: -40 °F
Max Storage Temperature: 158 °F
Humidity Range Storage: 10 - 95% (non-condensing)
COO: MEXICO / MALAYSIA
