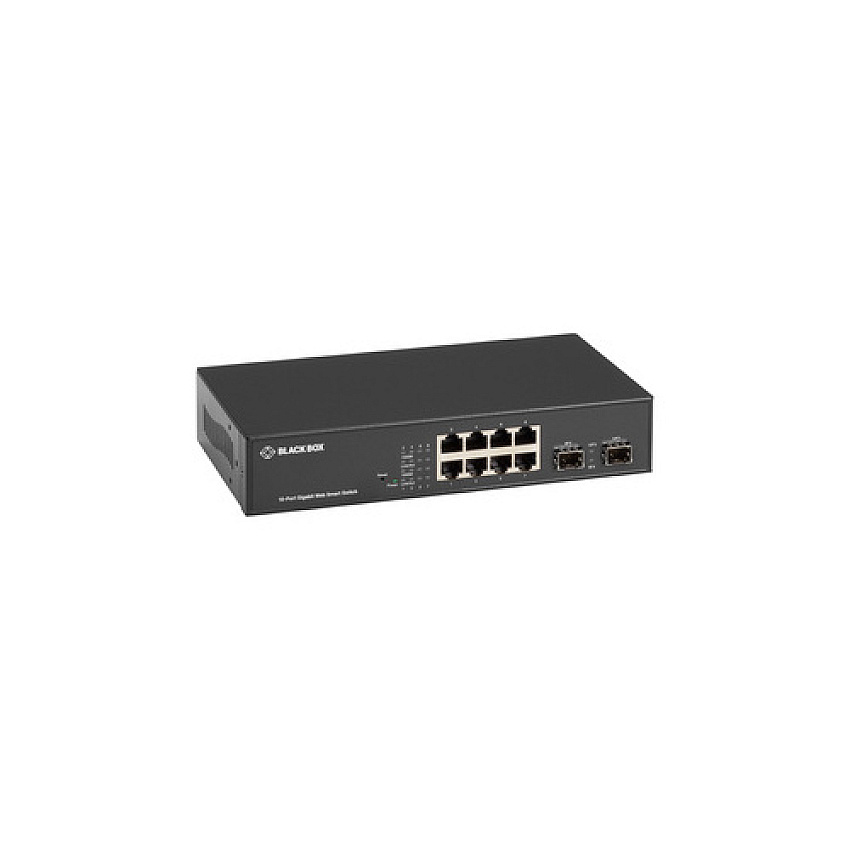

Black Box Gigabit Ethernet (1000-mbps) Web Smart Switch - (8) 10/100/1000-mbps Copper Rj45, (2) 100/1000-mbps Sfp, Gsa, Taa (LGB710A)
Black Box Gigabit Ethernet (1000-mbps) Web Smart Switch - (8) 10/100/1000-mbps Copper Rj45, (2) 100/1000-mbps Sfp, Gsa, Taa (LGB710A)
-
Gigabit Ethernet (1000-Mbps) Web Smart Switch - (8) 10/100/1000-Mbps Copper RJ45, (2) 100/1000-Mbps SFP, GSA, TAA
-
In Stock
Product Description
Gigabit Ethernet (1000-Mbps) Web Smart Switch - (8) 10/100/1000-Mbps Copper RJ45, (2) 100/1000-Mbps SFP, GSA, TAA
Product Specs
Manufacturer
Black BoxCategories
Black Box Computer AccessoriesBlack Box Networking, Cables & AccessoriesBlack Box Network SwitchesManufacturer Stock No.
LGB710AMPN
BBXLGB710AModel#
LGB710AUPC Code
822088135166UNSPSC Code
0Information
Product Description: Black Box LGB700 Series Web Smart Gigabit Ethernet Switch - switch - 10 ports - smart - TAA CompliantDevice Type: Switch - 10 ports - smart
Subtype: Gigabit Ethernet
Ports: 8 x 10/100/1000 + 2 x 100/1000 SFP
Performance: Forwarding rate: 1.488 Mpps ¦ Switching capacity: 20 Gbps
Capacity: Packet buffer size: 512 KB
MAC Address Table Size: 8K entries
Jumbo Frame Support: 9.6KB
Routing Protocol: IGMPv2, IGMP
Remote Management Protocol: SNMP 1, SNMP 2c, HTTP
Features: Flow control, auto-sensing per device, auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, half duplex mode, full duplex mode, QoS, fanless, tagged VLAN, VoIP support, EEE, loopback detection, port-based VLAN
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3az
Power: AC 120/230 V (50/60 Hz)
Dimensions (WxDxH): 9.1 in x 4.9 in x 1.7 in
Weight: 31.74 oz
TAA Compliant: Yes
Device Type: Switch - 10 ports - smart
Enclosure Type: Desktop
Subtype: Gigabit Ethernet
Ports: 8 x 10/100/1000 + 2 x 100/1000 SFP
Performance: Forwarding rate: 1.488 Mpps ¦ Switching capacity: 20 Gbps
Capacity: Packet buffer size: 512 KB
MAC Address Table Size: 8K entries
Jumbo Frame Support: 9.6KB
Routing Protocol: IGMPv2, IGMP
Remote Management Protocol: SNMP 1, SNMP 2c, HTTP
Features: Flow control, auto-sensing per device, auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, half duplex mode, full duplex mode, QoS, fanless, tagged VLAN, VoIP support, EEE, loopback detection, port-based VLAN
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3az
Status Indicators: Power, 1000M device connected, link/activity
Interfaces: 8 x 1000Base-T RJ-45 ¦ 2 x Gigabit LAN SFP
Power Device: Internal power supply
Voltage Required: AC 120/230 V (50/60 Hz)
Power Consumption Operational: 15 Watt
Compliant Standards: CISPR 22 Class A, FCC Part 15 B, FCC Part 15 C, RoHS, IEC 61000-3-3: 2008, Directive 2006/95/EC, Directive 2011/65/EU, IEC 61000-3-2: 2005, EN 55022: 2010 Class A
TAA Compliant: Yes
Width: 9.1 in
Depth: 4.9 in
Height: 1.7 in
Weight: 31.74 oz
Min Operating Temperature: 32 °F
Max Operating Temperature: 113 °F
Humidity Range Operating: 5 - 90% (non-condensing)
Min Storage Temperature: -4 °F
Max Storage Temperature: 158 °F
COO: TAIWAN
TAA compliance: Yes
