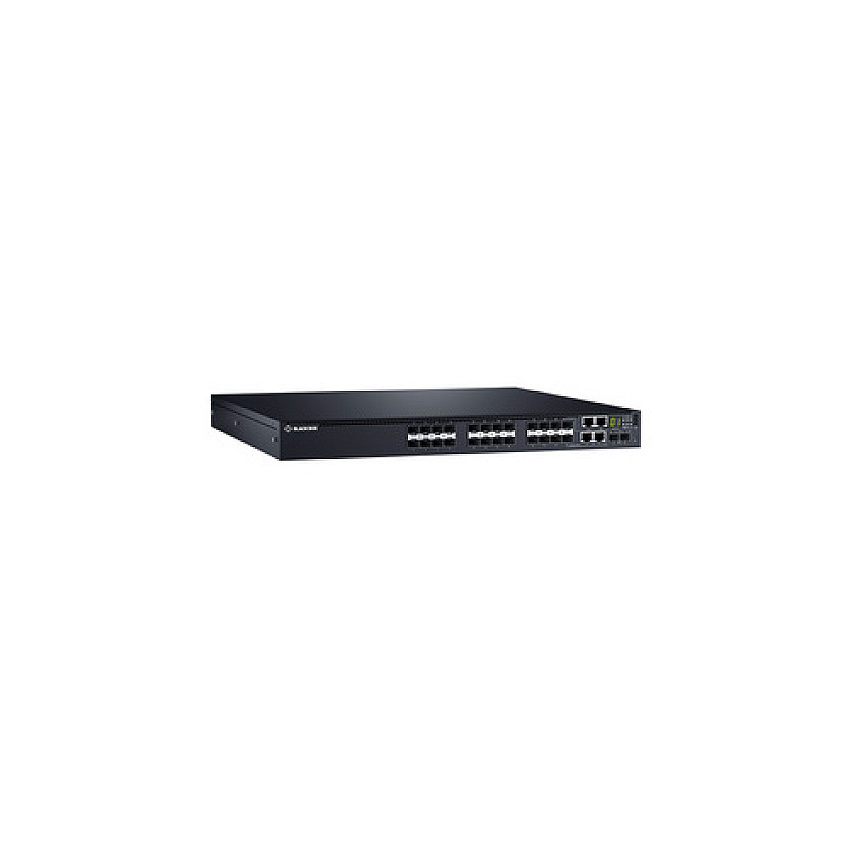

Black Box Fiber Network Switch - 1g, 24-port (EMS1G24F)
Model: EMS1G24F
Black Box Fiber Network Switch - 1g, 24-port (EMS1G24F)
Model: EMS1G24F
-
Fiber Network Switch - 1G, 24-Port
-
Out Of Stock
Product Description
Emerald 1G 24-Port Fiber Network Switch
Product Specs
Manufacturer
Black BoxManufacturer Stock No.
EMS1G24FMPN
BBXEMS1G24FModel#
EMS1G24FUPC Code
822088133810UNSPSC Code
0Information
Product Description: Black Box Emerald Fiber Network Switch - switch - 24 ports - managed - rack-mountableDevice Type: Switch - 24 ports - managed
Enclosure Type: Rack-mountable 1U
Subtype: 10 Gigabit Ethernet
Ports: 24 x Gigabit SFP + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink) + 2 x combo Gigabit Ethernet/Gigabit SFP
Performance: Switching capacity (full duplex): 212 Gbps ¦ Forwarding capacity: 158 Gbps ¦ Stacking bandwidth (full-duplex): 84 Gbps ¦ Latency (SFP+): 1.8 µs ¦ Latency (1 Gbps): 3.7 µs
Capacity: IPv4 routes: 16000 ¦ IPv6 routes: 8000 ¦ Links per group: 16 ¦ Groups per stack: 128 ¦ Queues per port: 8 ¦ VLANs supported: 4000 ¦ MSTP instances: 64 ¦ VRF-lite instances: 511 ¦ IPv4 host table capacity: 22000 ¦ IPv6 host table capacity: 16000 ¦ Multicast table entries (IPv4): 8000 ¦ Packet buffer size: 4 MB ¦ MTU: 12000 bytes
MAC Address Table Size: 80K entries
Jumbo Frame Support: 9416 bytes
Remote Management Protocol: SNMP 1, SNMP 2, SNMP 3, TFTP, SSH-2, SCP
Features: Flow control, routing, VLAN support, Syslog support, port mirroring, IPv6 support, sFlow, STP support, RSTP support, MSTP support, QoS, Jumbo Frames support, PVST+, reset button, IPv4 support, LLDP support, LACP, redundant hot swappable fans, 12MB packet buffer, SP, GVRP, 802.1x authentication, 4 fans, DRR, VLAN Double Tagging (Q-in-Q), LLDP-MED, IPSec support, WRR, VLAN Tagging, bridge mode, stack number LCD
Compliant Standards: IEEE 802.1x
Power: AC 100 - 240 V (50/60 Hz)
Power Redundancy: Optional
Dimensions (WxDxH): 17.1 in x 16 in x 1.7 in
Weight: 13.23 lbs
Device Type: Switch - 24 ports - managed
Enclosure Type: Rack-mountable 1U
Subtype: 10 Gigabit Ethernet
Ports: 24 x Gigabit SFP + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink) + 2 x combo Gigabit Ethernet/Gigabit SFP
Performance: Switching capacity (full duplex): 212 Gbps ¦ Forwarding capacity: 158 Gbps ¦ Stacking bandwidth (full-duplex): 84 Gbps ¦ Latency (SFP+): 1.8 µs ¦ Latency (1 Gbps): 3.7 µs
Capacity: IPv4 routes: 16000 ¦ IPv6 routes: 8000 ¦ Links per group: 16 ¦ Groups per stack: 128 ¦ Queues per port: 8 ¦ VLANs supported: 4000 ¦ MSTP instances: 64 ¦ VRF-lite instances: 511 ¦ IPv4 host table capacity: 22000 ¦ IPv6 host table capacity: 16000 ¦ Multicast table entries (IPv4): 8000 ¦ Packet buffer size: 4 MB ¦ MTU: 12000 bytes
MAC Address Table Size: 80K entries
Jumbo Frame Support: 9416 bytes
Remote Management Protocol: SNMP 1, SNMP 2, SNMP 3, TFTP, SSH-2, SCP
Authentication Method: RADIUS, Secure Shell v.2 (SSH2)
Features: Flow control, routing, VLAN support, Syslog support, port mirroring, IPv6 support, sFlow, STP support, RSTP support, MSTP support, QoS, Jumbo Frames support, PVST+, reset button, IPv4 support, LLDP support, LACP, redundant hot swappable fans, 12MB packet buffer, SP, GVRP, 802.1x authentication, 4 fans, DRR, VLAN Double Tagging (Q-in-Q), LLDP-MED, IPSec support, WRR, VLAN Tagging, bridge mode, stack number LCD
Compliant Standards: IEEE 802.1x
Flash Memory: 1 GB
Status Indicators: Power, temperature, 100M device connected, system, 1000M device connected, SFP, link/activity/speed, PSU, data
Interfaces: 24 x Gigabit LAN SFP ¦ 2 x 10Gbit LAN SFP+ ¦ 1 x management (RS-232) RJ-45 console ¦ 2 x Gigabit LAN ¦ 1 x USB Type A storage ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 2 x mini-SAS stacking ¦ 1 x management (micro-USB) console
Expansion Slots: 1 (total) / 1 (free) x expansion slot
Power Device: Internal power supply - hot-plug
Installed Qty: 1
Max Supported Qty: 2
Power Redundancy: Optional
Power Redundancy Scheme: 1+1 (with optional power supply)
Voltage Required: AC 100 - 240 V (50/60 Hz)
Power Consumption Operational: 200 Watt
80 PLUS Certification: 80 PLUS
Included Accessories: 4 foot pads, 2 mounting brackets, 2 x fan modules, bolts, cage nuts
Cables Included: 1 x RJ-45 to DB-9 cable
Rack Mounting Kit: Included
Compliant Standards: EN 61000-3-2, EN 61000-3-3, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, RoHS, UL 60950-1 Second Edition, EN 60825-1, EN 60825-2, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, EN 300 386 V1.4.1, FDA 21CFR1040.10, FCC CFR47 Part 15 B Class A, FDA 21CFR1040.11, CISPR 32, UL/CSA60950-1 (2nd Edition), EN 55032: 2015+A1: 2007, EN 55024: 1998+A1: 2001+A2: 2003
Width: 17.1 in
Depth: 16 in
Height: 1.7 in
Weight: 13.23 lbs
Min Operating Temperature: 32 °F
Max Operating Temperature: 113 °F
Humidity Range Operating: 8 - 85% (non-condensing)
Min Storage Temperature: -40 °F
Max Storage Temperature: 158 °F
Humidity Range Storage: 5 - 90% (non-condensing)
COO: CHINA
TAA compliance: No
