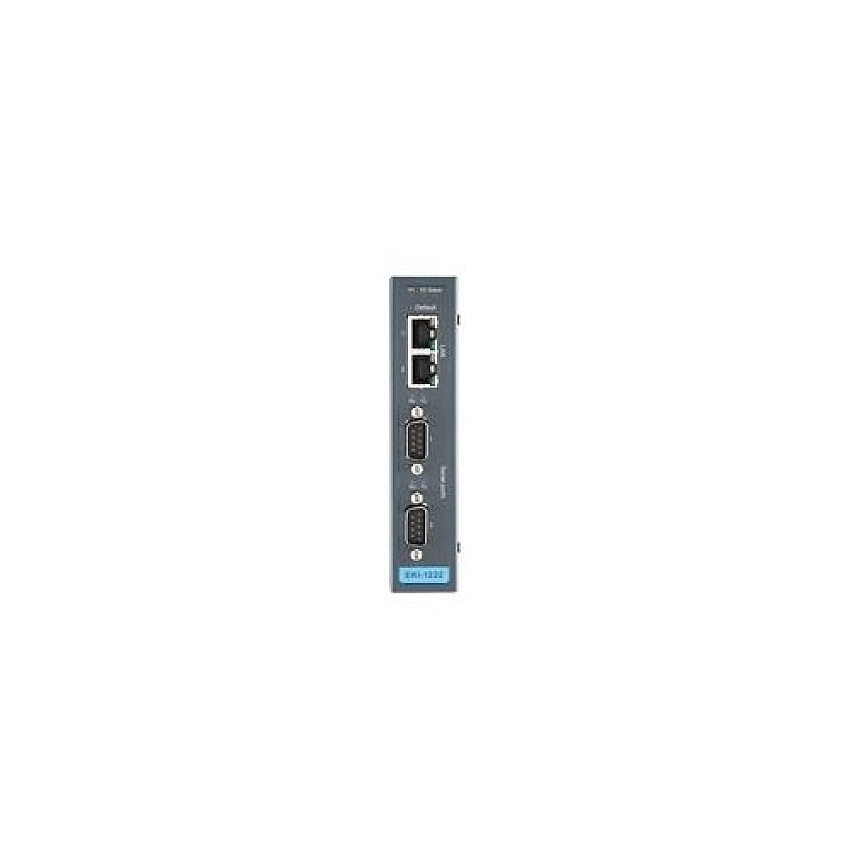

B+B Smartworx 2-port Modbus Gateway With Wide Temp & Iso (EKI1222CICE)
B+B Smartworx 2-port Modbus Gateway With Wide Temp & Iso (EKI1222CICE)
-
2-port Modbus Gateway with Wide Temp & iso
-
Out Of Stock
Product Description
2-port Modbus Gateway with Wide Temp & iso
Product Specs
Manufacturer
B+B SmartworxCategories
B+B Smartworx Computer AccessoriesB+B Smartworx Networking, Cables & AccessoriesB+B Smartworx Network DevicesManufacturer Stock No.
EKI-1222CI-CEMPN
BBEEKI1222CICEModel#
EKI1222CICEUNSPSC Code
0Information
Product Description: Advantech EKI-1222CI - gatewayDevice Type: Gateway
Form Factor: Wall / DIN rail mountable
Ports Qty: 2
Data Link Protocol: Ethernet, Fast Ethernet, RS-232, RS-485, Modbus, RS-442
OS Required: Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10
Power: DC 12 - 48 V
Dimensions (WxDxH): 1.4 in x 3.7 in x 5.5 in
Weight: 16.93 oz
Manufacturer Warranty: 5-year warranty
Device Type: Gateway
Width: 1.4 in
Depth: 3.7 in
Height: 5.5 in
Weight: 16.93 oz
Form Factor: Wall / DIN rail mountable
Ports Qty: 2
Connectivity Technology: Wired
Data Link Protocol: Ethernet, Fast Ethernet, RS-232, RS-485, Modbus, RS-442
Status Indicators: Power, system, status, link/activity
Features: 15KV ESD Protector
Interfaces: 2 x RS-232/422/485 - DB-9 ¦ 2 x 100Base-TX - RJ-45
Compliant Standards: UL, cUL, EMC, FCC Part 15 B Class A, ATEX Zone 2
Voltage Required: DC 12 - 48 V
Power Consumption Operational: 3.2 Watt
OS Required: Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10
Service & Support: Limited warranty - 5 years
Min Operating Temperature: 14 °F
Max Operating Temperature: 140 °F
Humidity Range Operating: 5 - 95%
COO: TAIWAN
TAA compliance: Yes
