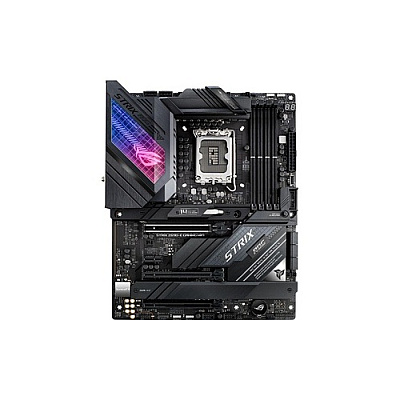

ASUS Rog Strix Z690-e Gaming Wifi (ROG STRIX Z690E GAMING WIFI)
ASUS Rog Strix Z690-e Gaming Wifi (ROG STRIX Z690E GAMING WIFI)
-
ROG STRIX Z690-E GAMING WIFI
-
Out Of Stock
Product Description
ROG STRIX Z690-E GAMING WIFI
Product Specs
Manufacturer
AsusManufacturer Stock No.
ROG STRIX Z690-E GAMING WIFIMPN
ASUROGSTRIXZ690EGAMINGWIFIModel#
ROG STRIX Z690E GAMING WIFIUPC Code
195553494632UNSPSC Code
0Information
Model: ROG STRIX Z690-E GAMING WIFIWidth: 12 Inch
Depth: 9.6 Inch
Mainboard Form Factor: ATX
Mainboard / Chipset Type: Intel Z690
Compatible Processors: 12th Gen Intel Core, Pentium Gold and Celeron Processors*
Audio Output: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
Networking Type: 1 x Intel I225-V 2.5Gb Ethernet
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.2 hardware ready**
* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.
** Bluetooth v5.2 function will be ready in in Windows 11 or later.
Multi GPU Supported: Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
Processor / Socket Type: Socket LGA1700
RAM / Technology: DDR5
Data Integrity Check: Non-ECC
RAM / Max Supported Size: 128 GB
Interfaces & Connections: Back Panel I/O Ports :
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C )
4 x USB 3.2 Gen 1 ports (4 x Type-A)
4 x USB 2.0 ports (2 x Type-A)
1 x HDMI port
1 x DisplayPort
1 x Wi-Fi Module
1 x Intel I225-V 2.5Gb Ethernet
5 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Internal I/O Connectors :
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt header
Service & Support Type: 3-Years Warranty
COO: CHINA
TAA compliance: No
Unit of Measure
Item Weight
7.69Ships via UPS
NBrand
Asus
