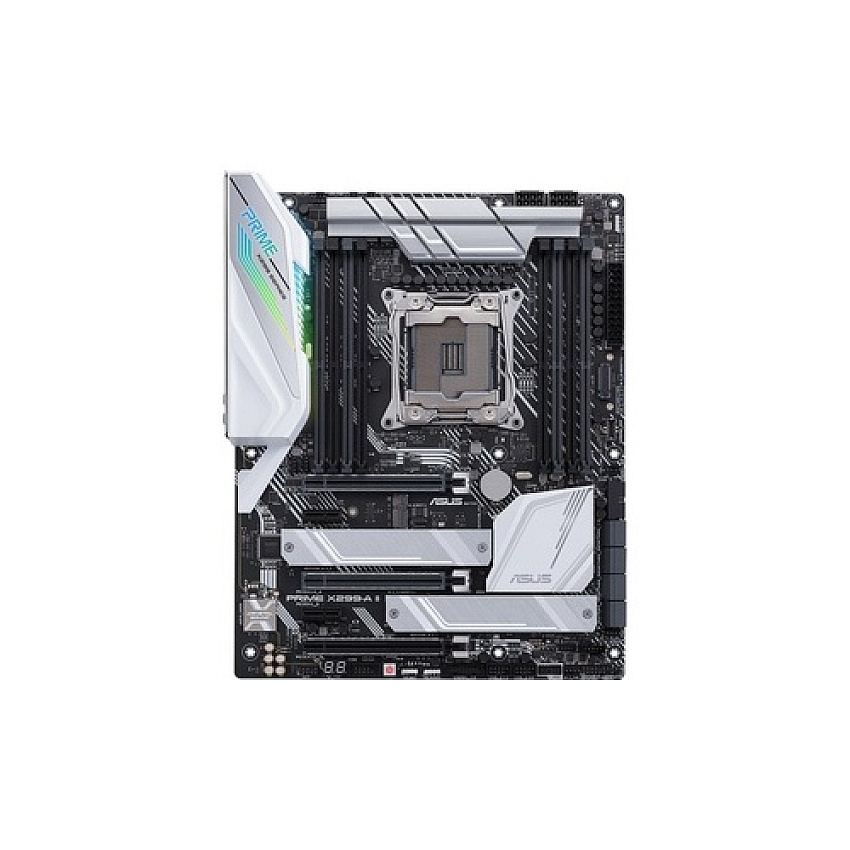

ASUS Prime X299-a Ii (RIME X299A II)
Model: RIME X299A II
ASUS Prime X299-a Ii (RIME X299A II)
Model: RIME X299A II
-
PRIME X299-A II
-
Out Of Stock
Product Description
PRIME X299-A II
Product Specs
Manufacturer
AsusManufacturer Stock No.
PRIME X299-A IIMPN
ASURIMEX299AIIModel#
RIME X299A IIUPC Code
192876488591UNSPSC Code
0Information
Model: PRIME X299-A IIWidth: 12 Inch
Depth: 9.6 Inch
Mainboard Form Factor: ATX
Mainboard / Chipset Type: Intel X299
Compatible Processors: Core X-Series Processors
Audio Output: Realtek S1220A 8-Channel High Definition Audio CODEC
Networking Type: Intel I219V, 1 x Gigabit LAN
ASUS Turbo LAN Utility
ASUS LAN Guard
Multi GPU Supported: Supports NVIDIA Quad-GPU SLI Technology
Supports NVIDIA 3-Way SLI Technology
Supports NVIDIA 2-Way SLI Technology
Supports AMD Quad-GPU CrossFireX Technology
Supports AMD 3-Way CrossFireX Technology
Processor / Socket Type: LGA2066
RAM / Technology: DDR4
Data Integrity Check: Non-ECC
RAM / Max Supported Size: 256 GB
Expansion Slots Total (Free): 48-Lane CPU-
3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8)
2 x PCIe 3.0/2.0 x1 *1
44-Lane CPU-
3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8)
2 x PCIe 3.0/2.0 x1 *1
28-Lane CPU-
2 x PCIe 3.0/2.0 x16 (x16, x16/x8) *2
2 x PCIe 3.0/2.0 x1 *1
1 x M.2 Socket 1 with E key, type 2230 for WIFI/BT devices support PCIE/USB mode*
* The Wi-Fi E key shares bandwidth with PCIEX1_1.
* The Wi-Fi/BT module is purchased separately
Interfaces & Connections: Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x LAN (RJ45) port(s)
4 x USB 3.2 Gen 1
2 x USB 2.0 (one port can be switched to USB BIOS FlashBack)
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x USB BIOS FlashBack Button(s)
2 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-CTM)
Internal I/O Ports
1 x AAFP connector
2 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1 front panel TypeC connector
2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x COM port(s) connector(s)
8 x SATA 6Gb/s connector(s)
1 x M.2_FAN connector
1 x VROC_HW_Key
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x W_PUMP+ connector
1 x AIO_PUMP connector
1 x Thunderbolt header (5-pin) for ASUS ThunderboltEX series support
1 x 24-pin EATX Power connector(s)
2 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector) (Chassis intrusion header is inbuilt)
1 x Thermal sensor connector(s)
1 x Power-on button(s)
1 x Clear CMOS jumper(s)
1 x Node Connector(s)
1 x CPU_OV jumper
1 x Q-Code
Service & Support Type: 3-Years Warranty
COO: Inquire
TAA compliance: Inquire
Unit of Measure
Item Weight
4.57Ships via UPS
YBrand
Asus
$276.17
$279.00
$248.68
$249.99
