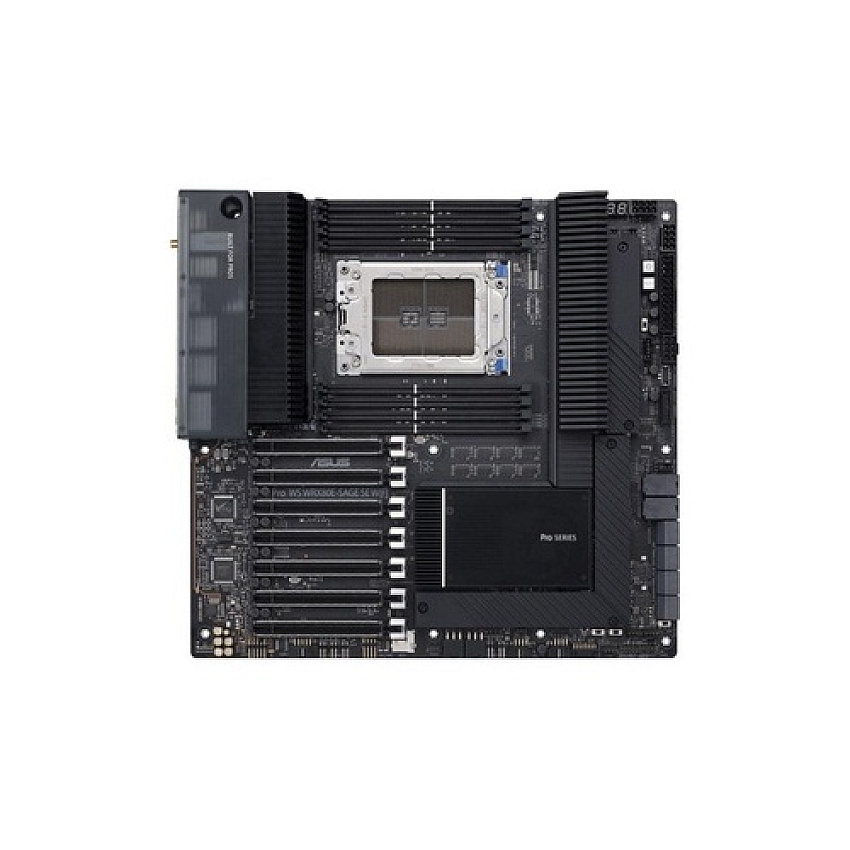

ASUS Amd Wrx80 Ryzen Threadripper Pro Extended-atx Workstation Motherboard (PROWSWRX80ESW)
ASUS Amd Wrx80 Ryzen Threadripper Pro Extended-atx Workstation Motherboard (PROWSWRX80ESW)
-
AMD WRX80 RYZEN THREADRIPPER PRO EXTENDED-ATX WORKSTATION MOTHERBOARD
-
Out Of Stock
Product Description
AMD WRX80 Ryzen Threadripper PRO extended-ATX workstation motherboard with Intel dual 10 G LAN, USB 3.2 Gen 2x2 Type-C port, 7 x PCIe 4.0 x16 slots, 3 x M.2 PCIe 4.0, ASMB9-iKVM, 2 x U.2 and 16 power stages
Product Specs
Manufacturer
AsusManufacturer Stock No.
PROWSWRX80E-SAGESEWIFIMPN
ASUPROWSWRX80ESWModel#
PROWSWRX80ESWUPC Code
195553066259UNSPSC Code
0Information
Model: PRO WS WRX80E-SAGE SE WIFIMainboard Form Factor: EATX
Mainboard / Chipset Type: AMD WRX80 Chipset
Multi GPU Supported: Supports NVIDIA 4-Way/3-Way/2-Way SLI Technology
Features: Socket Type: Socket sWRX8
RAM / Technology: DDR4
Data Integrity Check: ECC; Non-ECC
RAM / Max Supported Size: 2048 GB
Expansion Slots Total (Free): AMD Ryzen Threadripper PRO Series Processors
7 x PCIe 4.0/3.0 x16 slot(s)*
* Support PCIe bandwidth bifurcation for RAID on CPU function.
Interfaces & Connections: Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C)
9 x USB 3.2 Gen 2 port(s) (8 x Type-A+ 1 x USB Type-C)
1 x ASUS Wi-Fi Module
2 x Intel X550-AT2 dual 10Gb Ethernet ports
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
6 x 4-pin Chassis Fan header(s)
1 x VRM heatsink Fan header
1 x Chipset Fan header
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
2 x 6-pin PCIe Graphics Card connector
1 x 8-pin PCIe Power connector
Storage related
3 x M.2 slots (Key M)
8 x SATA 6Gb/s ports
2 x U.2 slots
USB
1 x USB 3.2 Gen 2 connector (support(s) USB Type-C)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
BMC Related
1 x BMC switch
1 x IPMI switch
1 x Messange LED header
1 x Micro SD card socket
2 x LAN LED header(s)
1 x Location LED header
1 x Location button header
1 x PSU_SMB header
1 x SMART_PSU switch
1 x VGA switch
1 x VGA header
1 x VPP_I2C header
Miscellaneous
1 x COM Port header
1 x FlexKey button
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x Start button
1 x 20-3 pin System Panel header with Chassis intrude function
1 x RTC Battery header
1 x Thermal Sensor header
COO: CHINA
TAA compliance: No
Unit of Measure
Item Weight
11.3Ships via UPS
YBrand
Asus
