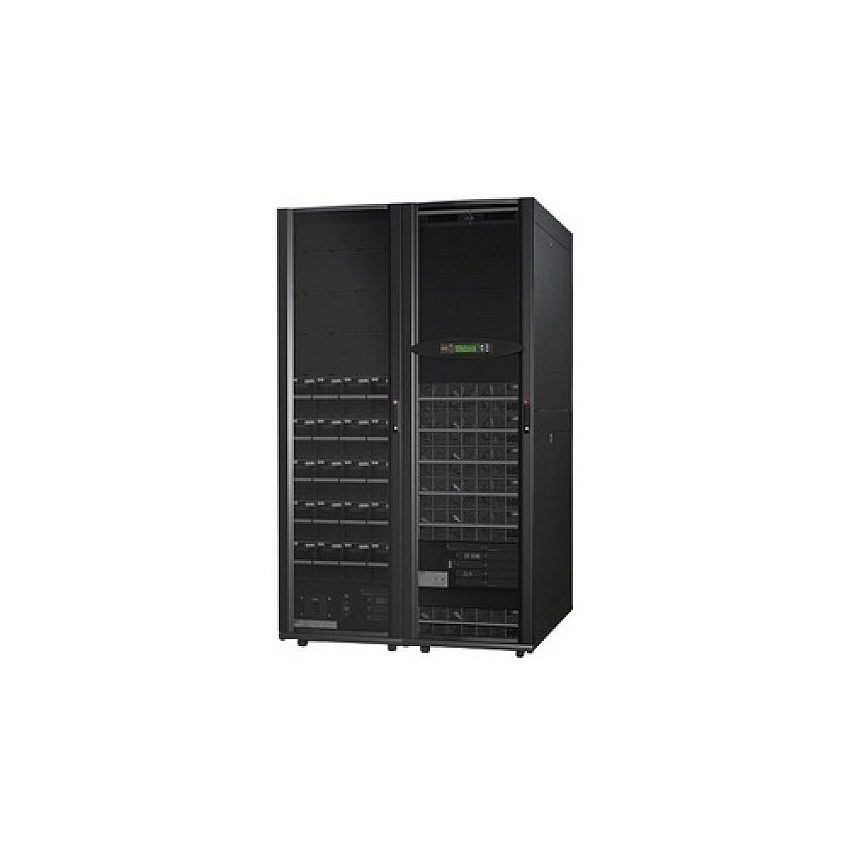

APC Symmetra Px 50kw Scalable (SY50K100F)
APC Symmetra Px 50kw Scalable (SY50K100F)
-
APC Symmetra PX 50kW Scalable
-
Special order arrives within 3-7 weeks.
Product Description
APC Symmetra PX 50kW Scalable to 100kW, 208V with Startup
Product Specs
Manufacturer
APCManufacturer Stock No.
SY50K100FMPN
APCSY50K100FModel#
SY50K100FUPC Code
731304282624UNSPSC Code
0Information
Product Description: APC Symmetra PX 50kW Scalable to 100kW - power array - 50 kW - 50000 VADevice Type: Power array - external
Weight: 2832.91 lbs
Input Wiring: 3-phase
Input Voltage: AC 208 V
Output Voltage: AC 120/208 V ± 2%
Power Capacity: 50 kW / 50000 VA
Battery: Lead acid expandable
Battery Form Factor: Plug-in module
Batteries Qty: 5 (installed) / 9 (supported)
Run Time (Up To): 6.4 min at full load
Networking: Ethernet
Remote Management Protocol: SNMP, HTTP
Color: Black
Dimensions (WxDxH): 47.2 in x 42.1 in x 79.1 in
Manufacturer Warranty: 1-year warranty
Device Type: Power array - external
Battery Enclosure Type: Plug-in module
Color: Black
UPS Technology: On-line
Input Voltage: AC 208 V
Input Voltage Range: AC 177 - 239 V
Frequency Provided: 57 - 63 Hz
Input Voltage Margin: ± 5%
Input Wiring: 3-phase
Frequency Required: 40 - 70 Hz
Output Voltage: AC 120/208 V ± 2% - 57 - 63 Hz
Power Capacity: 50 kW / 50000 VA
Output Waveform: Sinewave
Type: Expandable
Quantity: 5 (installed) / 9 (supported)
Technology: Lead acid
Voltage Provided: 192 V
Run Time (Up To): 6.4 min at full load ¦ 18.2 min at half load
Recharge Time: 2 hours
Remote Management Interface: Ethernet
Remote Management Protocol: SNMP, HTTP
Expansion Slots: 2 (total) / 1 (free) x SmartSlot
Features: Audible alarm, LCD display, built-in static bypass
Compliant Standards: ISO 9001, UL 1778, ISO 14001, IEC 62040-3, NEMA Type 1, FCC Part 15 A
Service & Support: Limited warranty - parts and labor - 1 year - on-site ¦ Installation
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 0 - 95%
Sound Emission: 67 dBA
Width: 47.2 in
Depth: 42.1 in
Height: 79.1 in
Weight: 2832.91 lbs
Shipping Width: 66.9 in
Shipping Depth: 47.6 in
Shipping Height: 84.3 in
Shipping Weight: 3119.51 lbs
