APC Servicebypasspanel200/208/230/240v (SBP20KP)
Model: SBP20KP
APC Servicebypasspanel200/208/230/240v (SBP20KP)
Model: SBP20KP
-
ServiceBypassPanel200/208/230/240V
-
Out Of Stock
Product Description

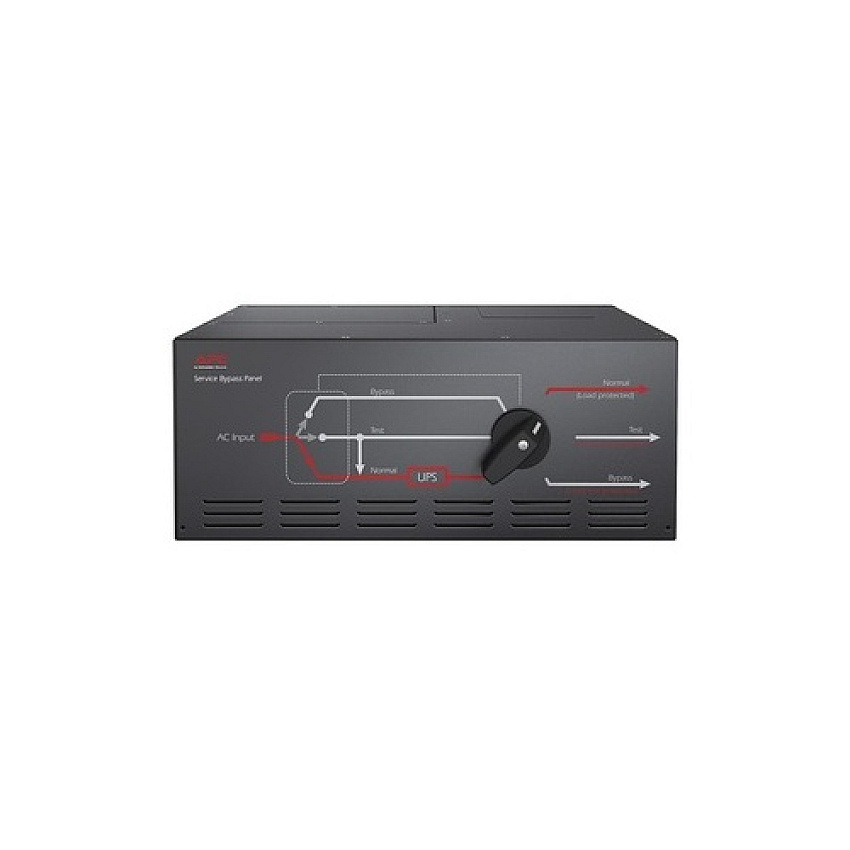

APC Service Bypass Panel 200/208/230/240V 125A HW Input/Output
Product Specs
Manufacturer
APCCategories
APC Computer AccessoriesManufacturer Stock No.
SBP20KPMPN
APCSBP20KPModel#
SBP20KPUPC Code
731304266952UNSPSC Code
0Information
Product Description: APC Service Bypass Panel - bypass switch - 20000 VADevice Type: Bypass switch - rack-mountable
Weight: 42.55 lbs
Input Voltage: AC 200/208/220/230/240/380/400 V
Output Voltage: AC 200/208/220/230/240 V
Power Capacity: 20000 VA
Input Connectors: 3 x hardwire 5-wire (3PH + N + G), hardwire 3-wire (2PH + G), hardwire 3-wire (1PH + N + G)
Output connectors: 1 x hardwire 3-wire (2PH + G) ¦ 1 x hardwire 3-wire (HN + G)
Color: Black
Dimensions (WxDxH): 17 in x 21.8 in x 7 in
Manufacturer Warranty: 2-year warranty
Designed For: P/N: SURT10000XLT-1TF, SURT10000XLT-2TF3-3, SURT10000XLT-2TF3-D, SURT10000XLT-2TF3-TU, SURT10000XLTQ, SURT14KRMXLJ, SURT15KRMXLT, SURT15KRMXLT-1TF10K, SURT15KRMXLT-TF5, SURT18KRMXLJ, SURT20KRMXLT, SURT20KRMXLT-1TF10K, SURT20KRMXLT-TF5, SURT20KUXICH, SURT20KUXI-IN, SURT8000RMXLICH, SYA12K16PXRK
Device Type: Bypass switch - rack-mountable
Color: Black
Input Voltage: AC 200/208/220/230/240/380/400 V
Input Voltage Range: AC 200 - 240 V
Frequency Required: 50/60 Hz
Input Connectors: 3 x hardwire 5-wire (3PH + N + G), hardwire 3-wire (2PH + G), hardwire 3-wire (1PH + N + G)
Power Output Connectors Details: 1 x hardwire 3-wire (2PH + G) ¦ 1 x hardwire 3-wire (HN + G)
Output Voltage: AC 200/208/220/230/240 V
Max Electric Current: 125 A
Power Capacity: 20000 VA
Cables Included: Power cable
Rack Mounting Kit: Included
Features: Overload protection
Compliant Standards: CSA, GOST, EN 60950, UL 1778, IEC 60950, RoHS, REACH
Service & Support: Limited warranty - parts - 2 years
Min Operating Temperature: -4 °F
Max Operating Temperature: 122 °F
Humidity Range Operating: 0 - 95%
Width: 17 in
Depth: 21.8 in
Height: 7 in
Weight: 42.55 lbs
Shipping Width: 24 in
Shipping Depth: 33.3 in
Shipping Height: 12 in
Shipping Weight: 69.22 lbs
Designed For: P/N: SURT10000XLT, SURT10000XLT-1TF, SURT10000XLT-1TF10K, SURT10000XLT-1TF3, SURT10000XLT-2TF3, SURT10000XLT-2TF3-3, SURT10000XLT-2TF3-BN, SURT10000XLT-2TF3-D, SURT10000XLT2TF3-T, SURT10000XLT-2TF3-TU, SURT10000XLT-2T-TU, SURT10000XLTQ, SURT10000XLT-TU, SURT14KRMXLJ, SURT15KRMXLI, SURT15KRMXLT, SURT15KRMXLT-1TF10K, SURT15KRMXLT-TF5, SURT18KRMXLJ, SURT20KRMXLI, SURT20KRMXLT, SURT20KRMXLT-1TF10K, SURT20KRMXLT-TF5, SURT20KUXICH, SURT20KUXI-IN, SURT8000RMXLI-270504, SURT8000RMXLI-CC, SURT8000RMXLICH, SURT8000XLT-1TF5, SURT8000XLTW, SYA12K16P, SYA12K16P-TU, SYA12K16PXR, SYA12K16PXRK, SYA12K16PXR-TU, SYA12K16PXR-TU2, SYA8K16PXR, SYA8K16PXR-TU, SYA8K8P, SYA8K8P-TRADEUPS, SYA8K8P-TU
COO: CHINA
TAA compliance: No
