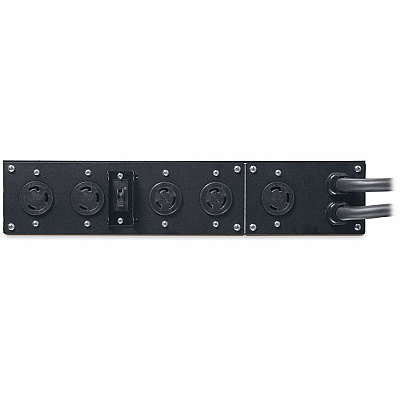

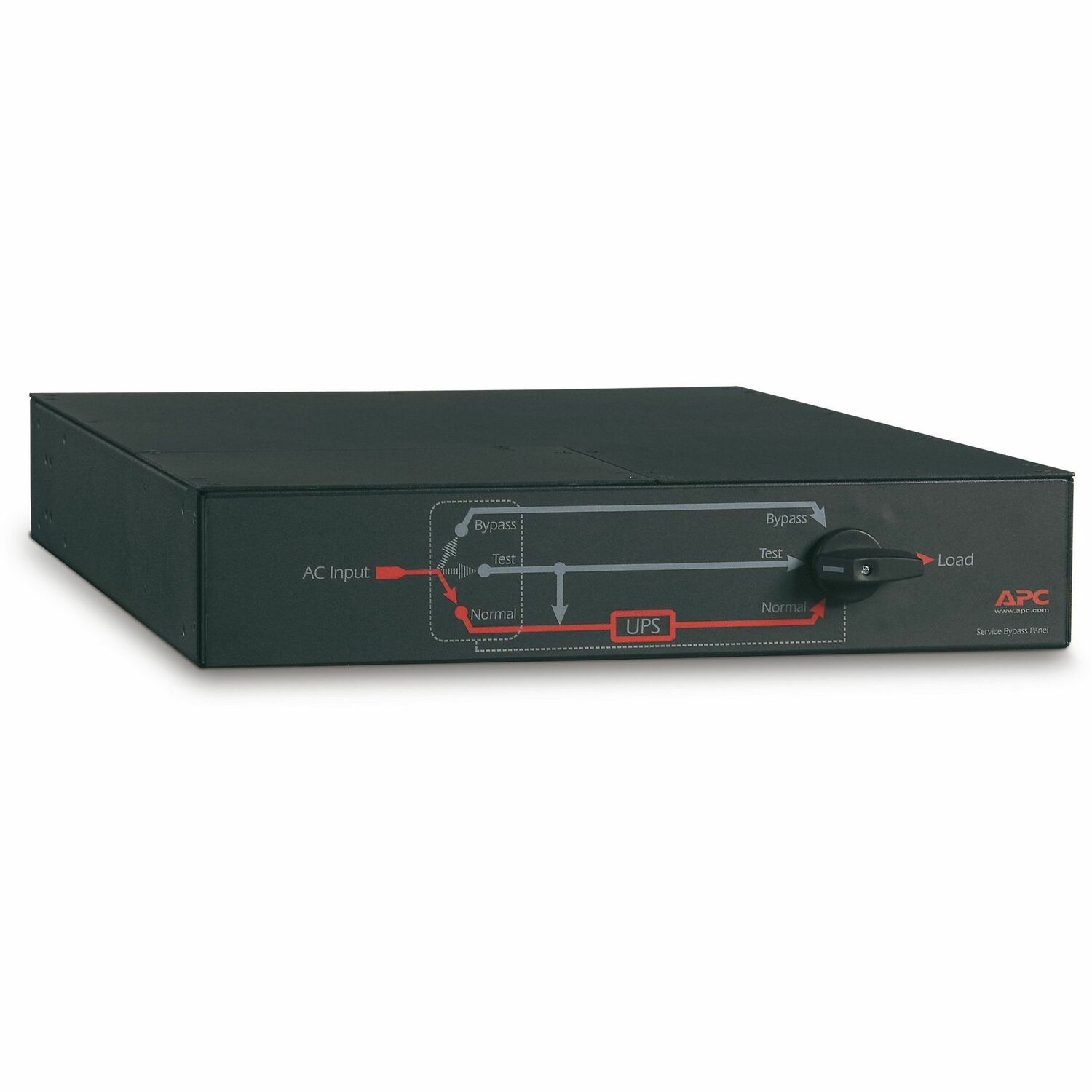

APC Service Bypass Panel- 200/208/240v (SBP5000RMT2U)
APC Service Bypass Panel- 200/208/240v (SBP5000RMT2U)
-
APC Service Bypass Panel- 200/208/240V
-
Out Of Stock
Product Description

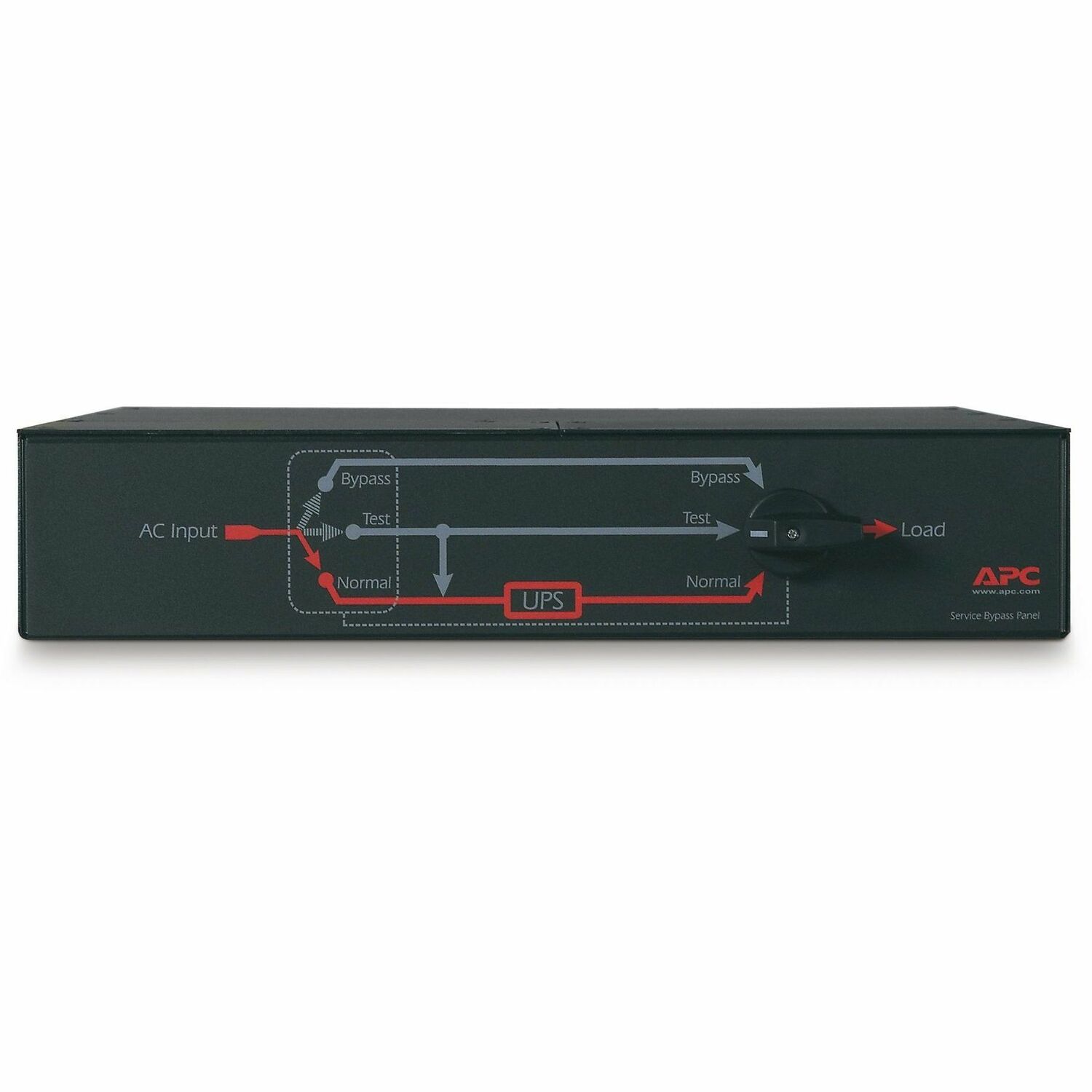

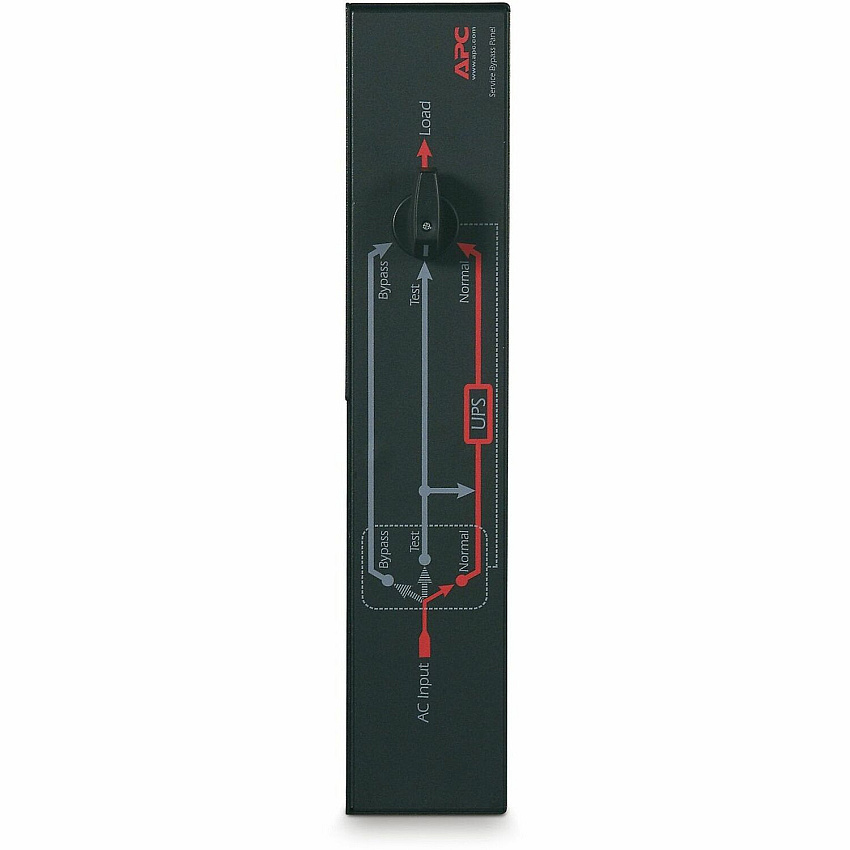

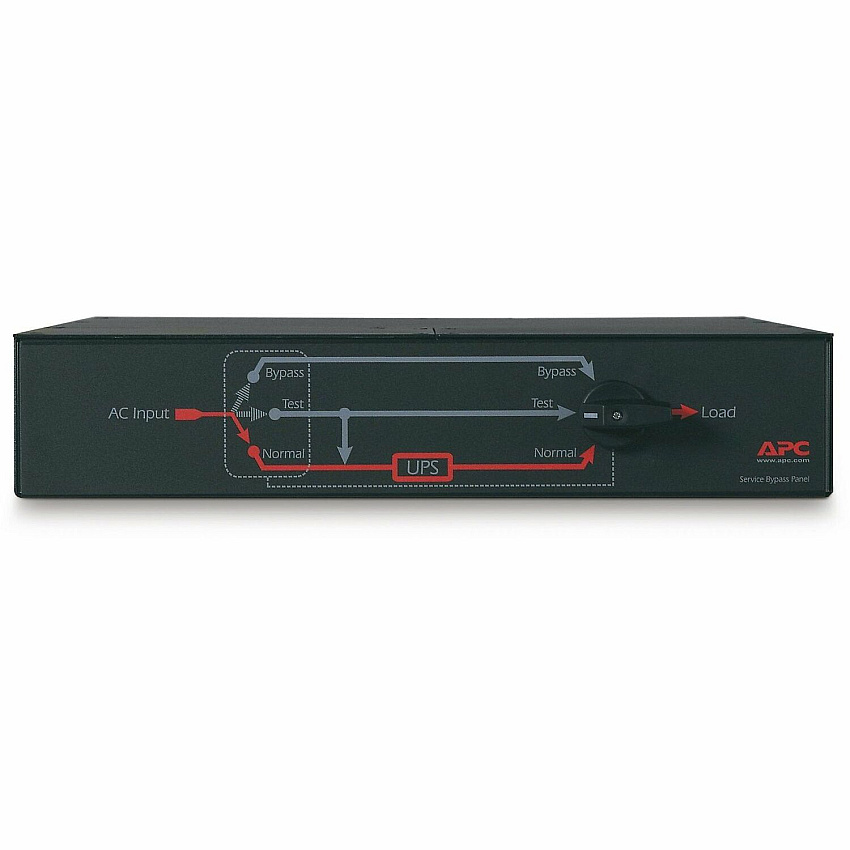

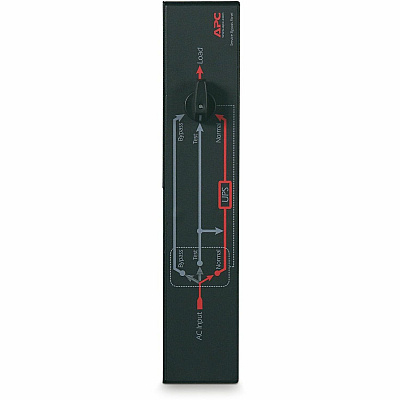

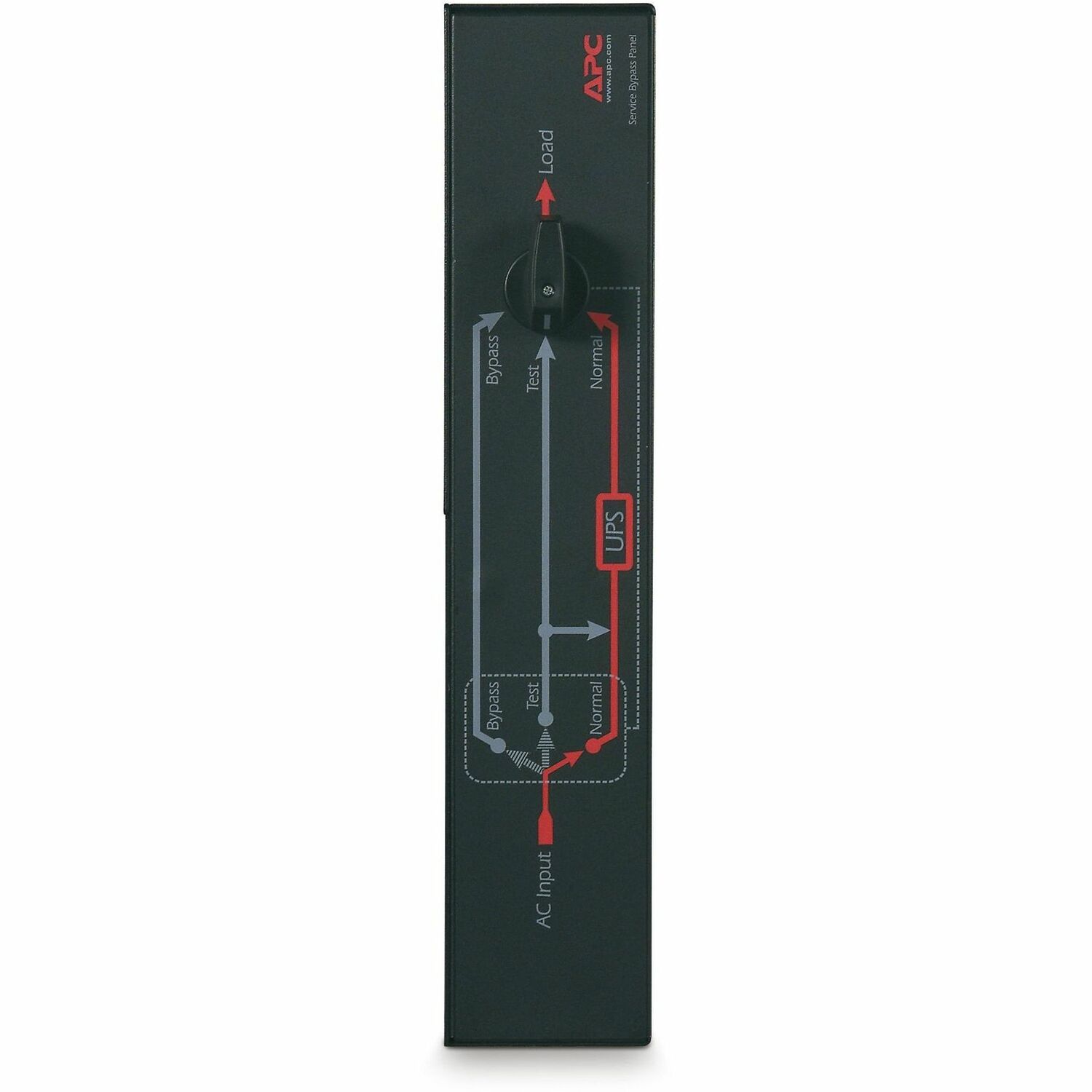

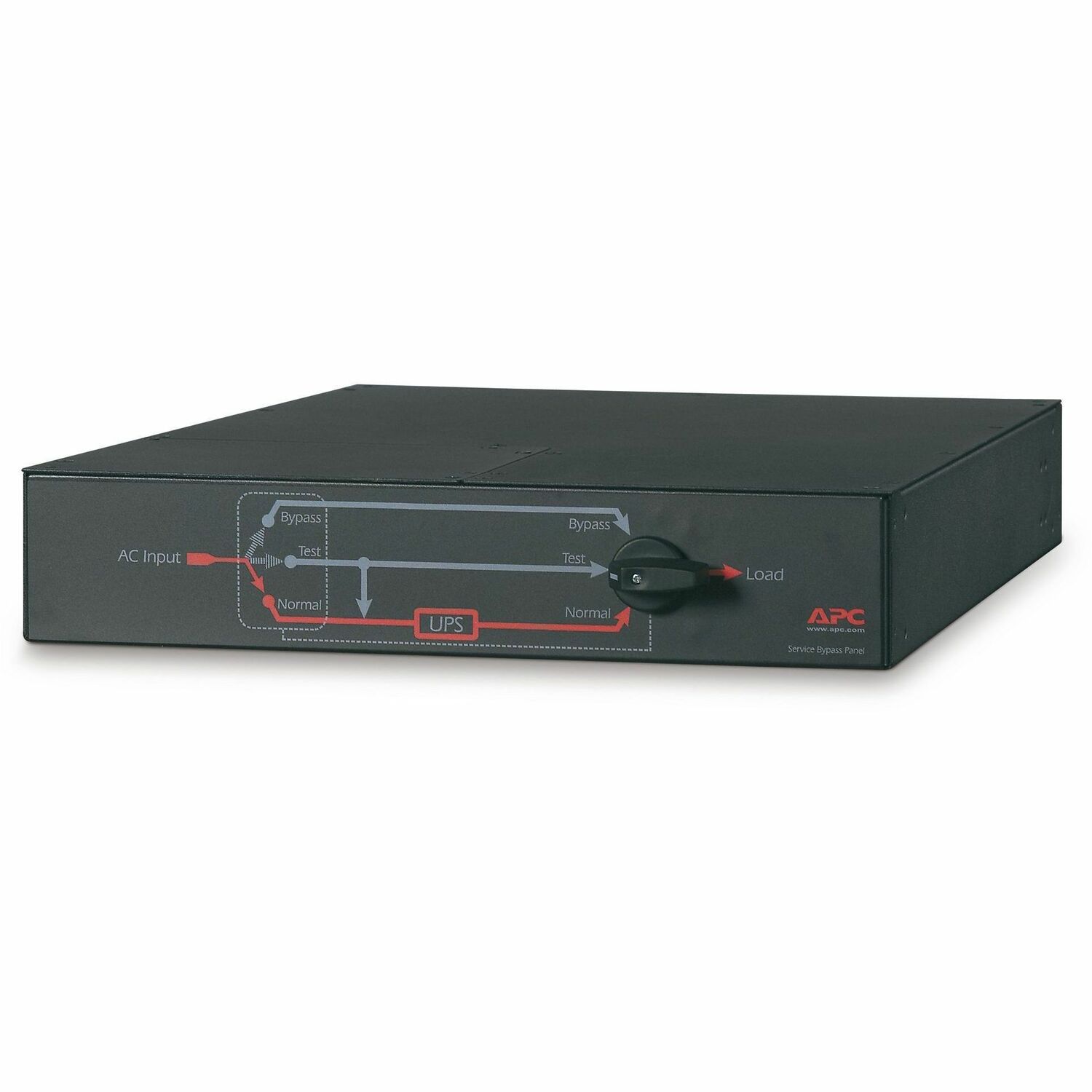

APC Service Bypass Panel Bypass switch ( rack-mountable ) - AC 200/208/240 V - 4 output connector(s) - 2 U - 19 inch
Product Specs
Manufacturer
APCManufacturer Stock No.
SBP5000RMT2UMPN
APCSBP5000RMT2UModel#
SBP5000RMT2UUPC Code
731304212584UNSPSC Code
0Information
Product Description: APC Service Bypass Panel - bypass switchDevice Type: Bypass switch - rack-mountable
Rack Size: 19" - 2U
Weight: 29.98 lbs
Input Voltage: AC 200/208/240 V
Output Voltage: AC 200/208/240 V
Input Connectors: Power NEMA L6-30

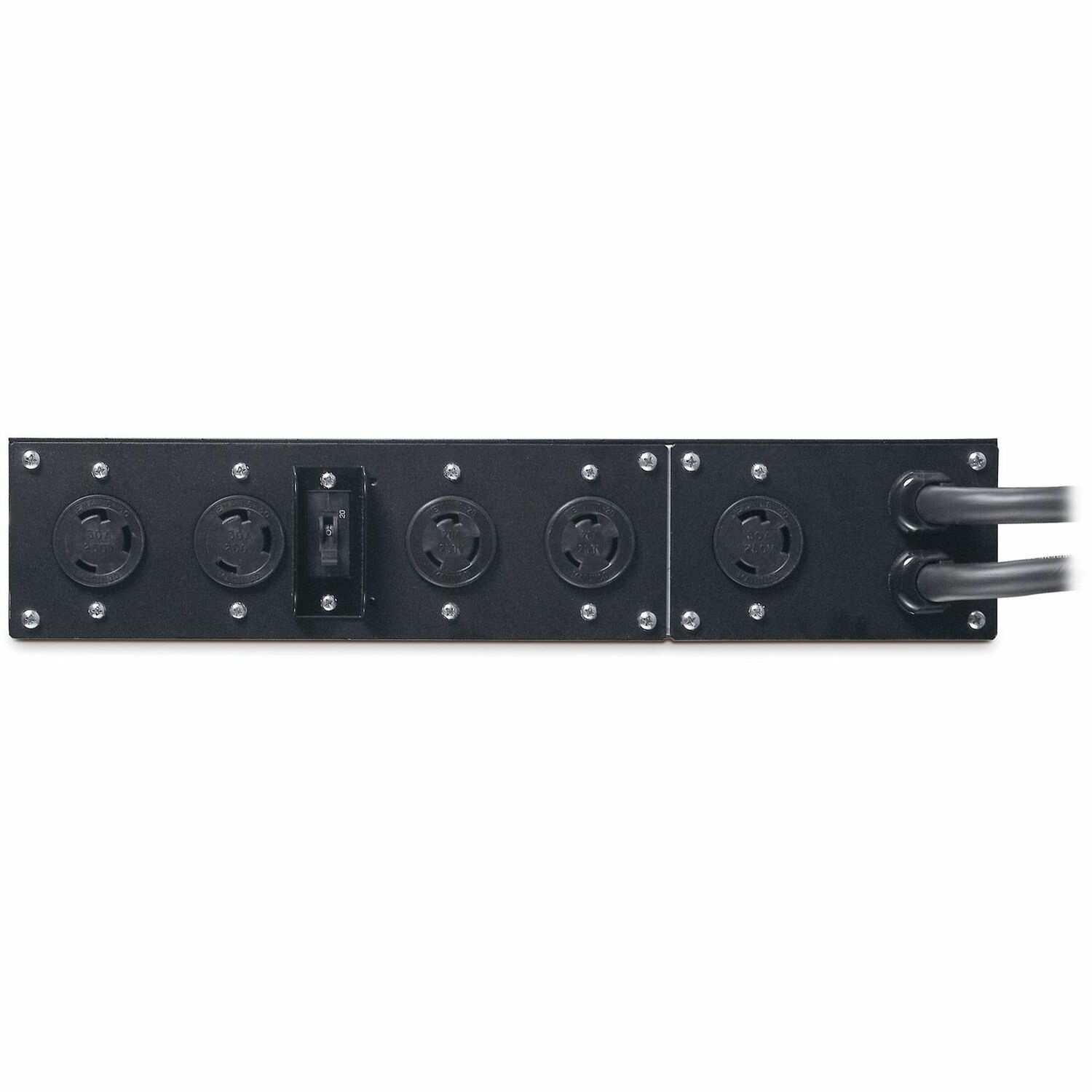

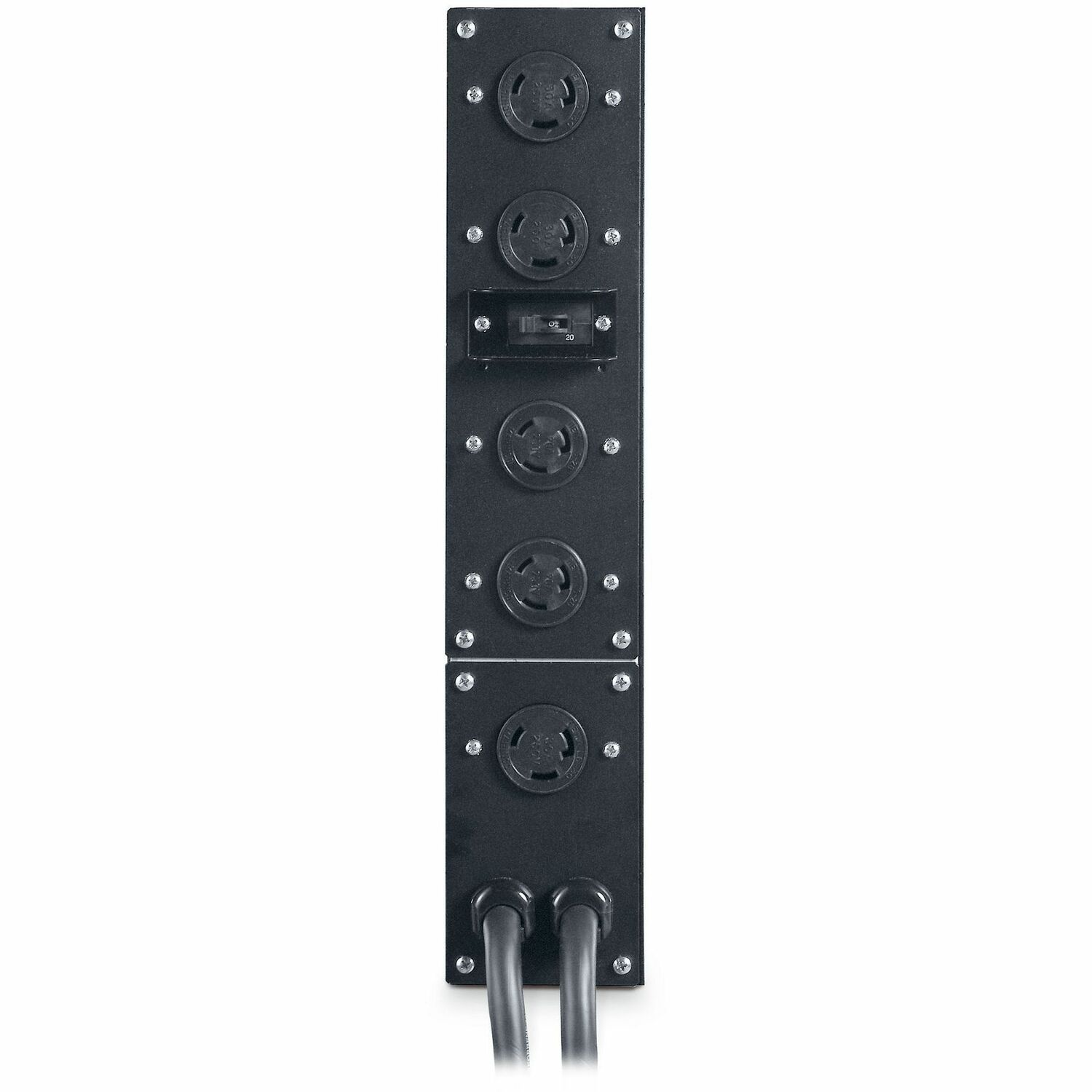

Output connectors: 2 x power NEMA L6-20 ¦ 2 x power NEMA L6-30
Color: Black
Dimensions (WxDxH): 17 in x 26 in x 3.5 in
Manufacturer Warranty: 2-year warranty
Designed For: Smart-UPS 3000VA, 3000VA USB & Serial, 3000VA XL, 5000VA, 5000VA XL
Device Type: Bypass switch - rack-mountable
Height (Rack Units): 2U
Rack Size: 19"
Color: Black
Input Voltage: AC 200/208/240 V
Frequency Required: 50/60 Hz
Input Connectors: Power NEMA L6-30
Power Output Connectors Details: 2 x power NEMA L6-20 ¦ 2 x power NEMA L6-30
Output Voltage: AC 200/208/240 V
Cables Included: Power cable 10 ft
Rack Mounting Kit: Included
Compliant Standards: CSA, UL, GOST, EN 60950, UL 1778, IEC 60950
Service & Support: Limited warranty - parts - 2 years
Min Operating Temperature: -4 °F
Max Operating Temperature: 122 °F
Min Storage Temperature: -13 °F
Max Storage Temperature: 149 °F
Humidity Range Operating: 0 - 95%
Humidity Range Storage: 0 - 95%
Width: 17 in
Depth: 26 in
Height: 3.5 in
Weight: 29.98 lbs
Designed For: APC Smart-UPS 3000VA, 3000VA USB & Serial, 3000VA XL, 5000VA, 5000VA XL
COO: CHINA
TAA compliance: No
