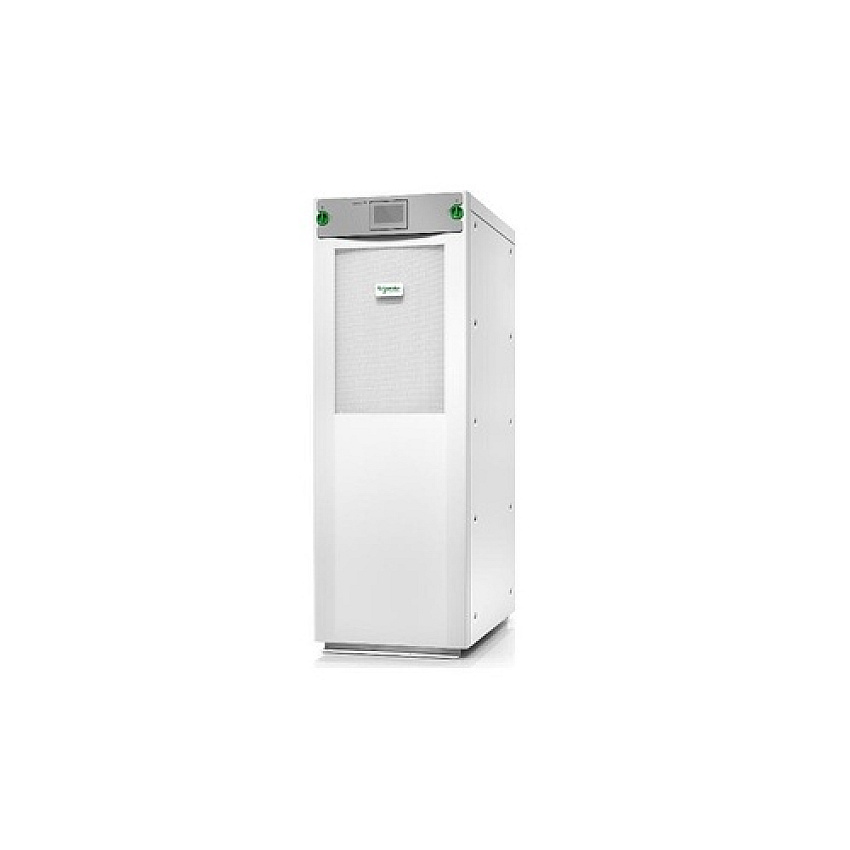

APC Galaxy Vs Ups 25kw 208v, 2 Internal 9ah (GVSUPS20KB4FS)
APC Galaxy Vs Ups 25kw 208v, 2 Internal 9ah (GVSUPS20KB4FS)
-
Galaxy VS UPS 25kW 208V, 2 internal 9Ah
-
Special order arrives within 3-7 weeks.
Product Description
Galaxy VS UPS 20kW 208V, 2 internal 9Ah smart modular battery strings, expandable to 4, Start-up 5x8
Product Specs
Manufacturer
APCManufacturer Stock No.
GVSUPS20KB4FSMPN
APCGVSUPS20KB4FSModel#
GVSUPS20KB4FSUPC Code
731304367543UNSPSC Code
0Information
Product Description: Schneider Electric Galaxy VS GVSUPS20KB4FS - UPS - 20 kW - 20000 VADevice Type: UPS - external
Bundled Services: Start-Up Service 5X8
Weight: 1014.12 lbs
Input Wiring: 3-phase
Input Voltage: AC 200/208/220 V
Output Voltage: AC 200/208/220 V ± 5%
Power Capacity: 20 kW / 20000 VA
Battery: Lead acid expandable - 9 Ah
Batteries Qty: 2 battery strings (installed) / 4 (supported)
Networking: Ethernet
Included Accessories: Dust filter
Color: White, RAL 9003
Dimensions (WxDxH): 20.5 in x 33.3 in x 58.5 in
Manufacturer Warranty: 1-year warranty
Device Type: UPS - external
Bundled Services: Start-Up Service 5X8
Color: White, RAL 9003
UPS Technology: On-line
Input Voltage: AC 200/208/220 V
Input Voltage Range: AC 177 - 239 V
Frequency Provided: 50/60 Hz
Input Wiring: 3-phase
Frequency Required: 40 - 70 Hz
Output Voltage: AC 200/208/220 V ± 5% - 50/60 Hz
Power Capacity: 20 kW / 20000 VA
Output Waveform: Sinewave
Power Factor (PF): 0.99
Type: Expandable
Quantity: 2 battery strings (installed) / 4 (supported)
Technology: Lead acid
Voltage Provided: 480 V
Capacity: 9 Ah
Features: Valve-regulated
Remote Management Interface: Ethernet
Expansion Slots: 1 SmartSlot
Included Accessories: Dust filter
Features: Audible alarm, touch screen LCD display, visible alarm
Compliant Standards: IEC 62040-3, IEC 62040-2, FCC Part 15 A, EN 62040-2, CSA C22.2 No. 107.3, IP20, EN 62040-3, IEC 62040-1, EN 62040-1, IEC 60721-4-2, UL 1778 5th edition
Service & Support: Limited warranty - 1 year - on-site
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 0 - 95% (non-condensing)
Sound Emission: 61 dB
Width: 20.5 in
Depth: 33.3 in
Height: 58.5 in
Weight: 1014.12 lbs
Shipping Width: 25.2 in
Shipping Depth: 39 in
Shipping Height: 66.1 in
Shipping Weight: 1080.25 lbs
COO: PHILIPPINES
TAA compliance: No
