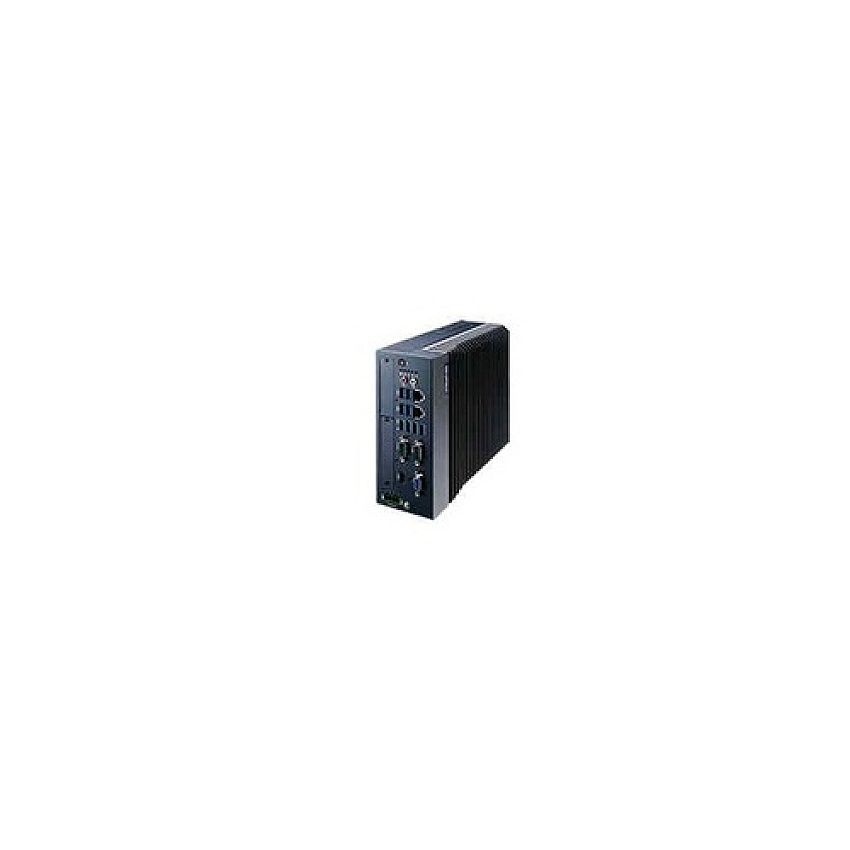

Advantech Q370, Modular Ipc (MIC770Q00A1)
Advantech Q370, Modular Ipc (MIC770Q00A1)
-
Q370, Modular IPC
-
Out Of Stock
Product Description
Q370, Modular IPC
Product Specs
Manufacturer
AdvantechManufacturer Stock No.
MIC-770Q-00A1MPN
ADVMIC770Q00A1Model#
MIC770Q00A1UNSPSC Code
0Information
Product Description: Advantech MIC-770 - compact PC - no CPU - 0 GB - no HDDType: PC barebone - compact PC
Processor: No CPU
Processor Socket: LGA1151 Socket
RAM: 0 GB (installed) / 32 GB (max) - DDR4 SDRAM - non-ECC
Storage Controller: SATA
Hard Drive: No HDD
Card Reader: Yes
Graphics Controller: Intel HD Graphics
Networking: 1GbE
Power: DC 9 - 36 V
OS Provided: No operating system
Dimensions (WxDxH): 3.1 in x 9.1 in x 7.6 in
Weight: 6.17 lbs
Type: PC barebone
Product Form Factor: Compact PC
Built-in Devices: Power on/off switch
CPU: No CPU
Max CPU Qty: 1
CPU Upgradability: Upgradable
CPU Socket: LGA1151 Socket
Chipset Type: Intel Q370
Installed Size: 0 GB / 32 GB (max)
Technology: DDR4 SDRAM - non-ECC
Form Factor: SO-DIMM 260-pin
Slots: 2 (total) / 2 (empty)
Type: No HDD
Type: SATA
Type: Card reader
Supported Flash Memory Cards: CFast Card
Monitor Type: None.
Graphics Processor: Intel HD Graphics
Video Interfaces: VGA, DVI
Ethernet Ports: 2 x Gigabit Ethernet
Ethernet Controller: Intel I219-V / I210-IT
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Bays: 1 (total) / 1 (free) x internal 2.5" ¦ 1 (total) / 1 (free) x internal mSATA
Slots: 1 (total) / 1 (free) x Mini PCIe/mSATA ¦ 1 (total) / 1 (free) x Mini PCIe
Interfaces: 1 x VGA ¦ 4 x serial ¦ 6 x USB 3.0 ¦ 1 x audio line-in ¦ 1 x audio line-out ¦ 2 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x DVI ¦ USB 2.0
Compliant Standards: FCC Class A certified, UL, BSMI, CCC
Voltage Required: DC 9 - 36 V
OS Provided: No operating system
Width: 3.1 in
Depth: 9.1 in
Height: 7.6 in
Weight: 6.17 lbs
Min Operating Temperature: 14 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 0 - 95% (non-condensing)
COO: Inquire
TAA compliance: Inquire
Unit of Measure
Item Weight
9.93Ships via UPS
NBrand
Advantech
$838.02
$855.00
$691.43
$829.72
