Manufacturer | Philips |
| Manufacturer Part # | 107E66/27 |
CRT | Type | Real Flat - aperture grille |
| Surface | Light Transmission 57%, Anti-Reflection, Anti-Static, Anti-glare Polarizer |
| Phosphor | P22 |
Display Area | Horizontal: 12"
Vertical: 9"
Diagonal: 16" |
Pixel Pitch | 0.27 mm |
| Resolution | 1280 x 1024 @ 60 Hz (Maximum)
1024 x 768 @ 85 Hz (Recommended) |
| Cabinet Color | Black |
| Cabinet Depth | 16.5" |
Signal Input | Input Video
Signal | Analog RGB |
| Frequency | Horizontal: 30 - 71 KHz
Vertical: 50 - 160 Hz |
Sync Type | Separate Sync |
| Bandwidth | 75 MHz |
Input Connectors | 1 x VGA - 15 pin HD D-Sub (HD-15) |
Power
Requirements | Consumption | 62 W (Typical) |
Operating
Conditions | Temperature | 32 °F - 95 °F |
| Humidity | 5 - 95% |
| Misc. Features | Emissions
Standard | MPR-II |
Dimensions
(H x W x D) | Unit | 15.1" x 15.6" x 16.5" |
Weight | Unit | 29.5 lbs |
| System Requirements | PC | All Windows OS |
Mac | All Mac OS |
Warranty | 3 year warranty includes parts and labor. |

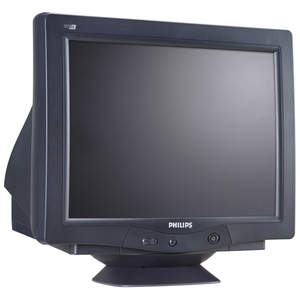

| Includes in the Box | Philips 107E66 Black 17" CRT Monitor
Power Cord
D-Sub Video Cable
User's Manual |
