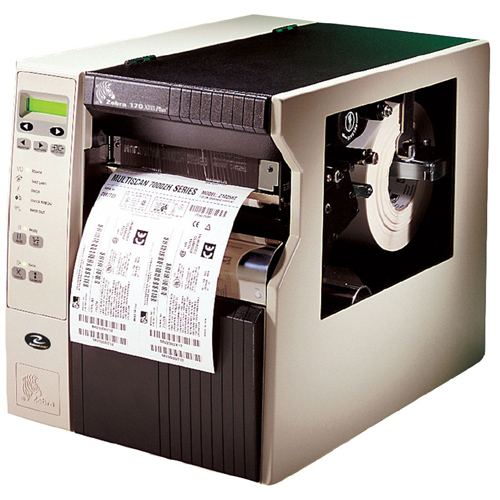

The Zebra 170XiIIIPlus Label Printer - 172-7A5-00000 offers superior-performance, mission-critical printers that deliver a labeling solution to fulfill any need, from 600 dpi resolution for small label printing to an 8.5-inch print width for wide labels and forms. Exciting, new features include a 32-bit processor; increased memory for label formats, graphics, fonts and ZBI programs; and an early warning notification for printhead maintenance support. XiIIIPlus printers also offer more connectivity choices than their competitors, including ZebraLink, ZebraNet Wireless Card Socket, and USB 2.0, serial, and parallel ports. iSeries (AS/400) network users may select from a wide range of twinax/coax and IPDS connectivity options. Add up all the bells and whistles, and it's easy to see why XiIIIPlus printers take high performance to an all-new level! The industrial-strength 170XiIIIPlus has a 12-gauge steel frame, 300-dpi print resolution, and the ability to print labels up to 6.6 inches wide at 8 inches per second. Tough compliance labeling applications are no match for the 170XiIIIPlus, since it can easily print large numbers of AIAG, ODETTE, UCC/EAN-128 and other compliance labels on demand or in batches.
Features
Product Description: Zebra Xi Series 170XiIIIPlus, label printer, B/W, direct thermal / thermal transfer
Printer Type: Label printer, direct thermal / thermal transfer, monochrome
Dimensions (WxDxH): 13.1 in x 19.5 in x 15.5 in
Weight: 67.2 lbs
Localization: Argentina
Max Media Size (Standard): Roll (7.1 in)
Max Media Size (Custom): 7.1 in
Print Speed: Up to 720.5 inch/min, B/W
Max Resolution ( B&W ): 203 dpi
Interface: Serial, USB, Ethernet 10/100Base-TX
Processor: 133 MHz
RAM Installed ( Max ): 16 MB SDRAM
Flash Memory Installed (Max): 4 MB
Language Simulation: ZPL , ZPL II
Barcodes: Code 93, Industrial 2 of 5, Code 39, Code 49, CODABLOCK, ISBT 128, GS1 DataBar, QR code, MaxiCode, LOGMARS, EAN/JAN-8 , EAN/JAN-13 , UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Code 2 of 5, Interleaved 2 of 5, Postnet , PDF417, MSI-Plessey, Data Matrix, PLANET, TLC39
Media Type: Labels, continuous forms
Networking: Print server, Ethernet, Fast Ethernet
Power: AC 120/230 V
System Requirements: Microsoft Windows NT 4.0, Microsoft Windows 95/98/ME/2000/XP
1 x Hi-Speed USB , 1 x serial, RS-232 , 1 x network, Ethernet 10Base-T/100Base-TX, RJ-45
Miscellaneous
Features:
Power Factor Correction (PFC)
Works with Windows Vista:
Software and devices that carry the Works with Windows Vista logo have been tested for baseline compatibility with PC's running.
Compliant Standards:
FCC Class B certified, UL, VCCI, C-Tick, BSMI, GOST, cUL, EN 60950, EN 61000-3-2, ICES-003, IEC950, NOM, EN 61000-3-3, EN55024, CSA 22.2 No. 950, EN55022 Class B, CCC
Power
Power Device:
Power supply, internal
Voltage Required:
AC 120/230 V
Frequency Required:
50/60 Hz
Software / System Requirements
Software Included:
Drivers & Utilities, ZebraLink
OS Required:
Microsoft Windows NT 4.0, Microsoft Windows 95/98/ME/2000/XP
Environmental Parameters
Min Operating Temperature:
41 °F
Max Operating Temperature:
104 °F
Humidity Range Operating:
20, 85%
Zebra 170XiIIIPlus Label Printer - 172-7A5-00000 Features
Internal ZebraNet 10/100 Print Server
Clear Media Side Door & Media Hanger
Zebra 170XiIIIPlus Label Printer - 172-7A5-00000 Included Items
170XiIIIPlus Label Printer
North America Power Cord
User's Guide
ZebraNet Connectivity CD
Zebra 170XiIIIPlus Label Printer - 172-7A5-00000 Warranty Information
Warranty Length: 1 Year Limited
Details: Zebra’s sole obligation under the above warranty shall be to repair or replace products and parts during the warranty period. Zebra does not assume responsibility for delays in replacement or repair of products or parts. Products and parts repaired or replaced by Zebra under warranty shall be warranted for the balance of the original warranty period or ninety (90) days, whichever is longer. This warranty gives end users specific legal rights, and particular end users may also have other rights which may vary from jurisdiction to jurisdiction.
Provider: Zebra
Contact: 1-866-230-9494
