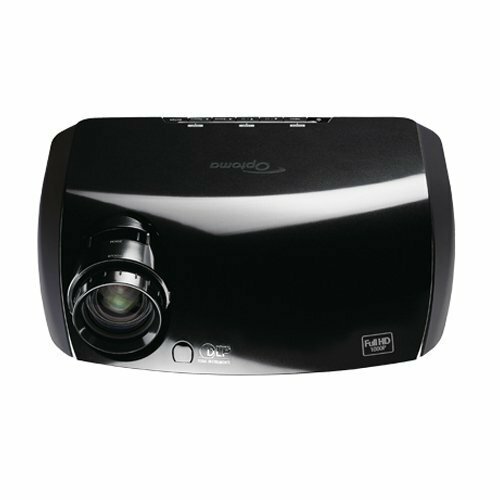

Exhibiting a powerful combination of vibrant, accurate color and resolution the Optoma TX1080 DLP Projector is a top quality digital data projector. With a wide range of compatibility and connectivity options, the TX1080 also features native pixel matching with any PC resolution and is one of the brightest HD projectors for any corporate environment. Network management functionality, native 1080p (1920 x 1080) resolution and a DLP chipset plus BrilliantColor technology from Texas Instruments, make the TX1080 is the consummate projector for demanding business or home theater use.
Features
Product Description: Optoma TX1080, DLP projector
Device Type: DLP projector, High Definition 1080p
Built-in Devices: Stereo speakers
Dimensions (WxDxH): 16.2 in x 12.2 in x 4.6 in
Weight: 10.4 lbs
Image Brightness: 3600 ANSI lumens
Image Contrast Ratio: 2200:1
Resolution: 1920 x 1080
Native Aspect Ratio: Widescreen
Color Support: 10-bit GigaColor (1 billion)
Lamp Type: UHP 300 Watt
Lamp Life Cycle: 2000 hour(s) / 3000 hour(s) (economic mode)
Video Input: RGB, S-Video, composite video ( NTSC, SECAM, PAL ) , LAN
Digital Video Standard: Digital Visual Interface (DVI), High-Definition Multimedia Interface (HDMI)
Digital Television Video Formats: 480p, 720p, 1080i, 1080p, 480i
Optoma TX1080 DLP Projector Specifications
Part # TX1080
General
Device Type:
DLP projector, High Definition 1080p
Built-in Devices:
Stereo speakers
Width:
16.2 in
Depth:
12.2 in
Height:
4.6 in
Weight:
10.4 lbs
Projector / Panel
Image Brightness:
3600 ANSI lumens
Image Contrast Ratio:
2200:1
Image Size:
2 ft, 24 ft
Projection Distance:
4 ft, 39 ft
Throw Ratio:
1.85, 2.22:1
Uniformity:
85 %
Resolution:
1920 x 1080 (native) / 1920 x 1200 (resized)
Native Aspect Ratio:
Widescreen
Color Support:
10-bit GigaColor (1 billion)
Max Sync Rate (V x H):
100 Hz x 100 kHz
Lamp Type:
UHP 300 Watt
Lamp Life Cycle:
2000 hour(s) / 3000 hour(s) (economic mode)
Features:
High-bandwidth Digital Content Protection System (HDCP)
Projector Lens System
Focus Type:
Manual
Lens Aperture:
F/2.6-2.89
Zoom Type:
Manual
Zoom Factor:
1.2x
Keystone Correction Direction:
Vertical
Vertical Keystone Correction:
-10 / +10
Video Input
Analog Video Format:
NTSC, SECAM, PAL
Analog Video Signal:
RGB, S-Video, composite video
Digital Video Standard:
Digital Visual Interface (DVI), High-Definition Multimedia Interface (HDMI)
Digital Television Video Formats:
480p, 720p, 1080i, 1080p, 480i
LAN and Wireless Image Transferring Protocols:
Wired LAN
Video Output
Analog Video Format:
NTSC, SECAM, PAL
Audio Output
Type:
Speaker(s), integrated
Output Power / Channel:
2 Watt
Speaker(s):
2 x right / left channel
Input Device
Type:
Remote control, external, wireless
Movement Detection Technology:
Infrared
Expansion / Connectivity
Interfaces:
1 x DVI-D, 24 pin digital DVI , 2 x VGA input, 15 pin HD D-Sub (HD-15) , 1 x VGA output, 15 pin HD D-Sub (HD-15) , 1 x S-video input , 1 x composite video input, RCA , 3 x audio line-in, mini-pho
Miscellaneous
Included Accessories:
Lens cover
Cables Included:
1 x VGA cable , 1 x serial cable , USB cable
Power
Power Device:
Power supply, internal
Voltage Required:
AC 120/230 V ( 50/60 Hz )
Power Consumption Operational:
400 Watt
Power Consumption Operational ( Standby ):
14 Watt
Manufacturer Warranty
Service & Support:
3 years warranty
Environmental Parameters
Min Operating Temperature:
41 °F
Max Operating Temperature:
95 °F
Sound Emission:
30 dB
Sound Emission (Economic Mode):
28 dB
Optoma TX1080 DLP Projector Features
Native HD (1920 x 1080) resolution
Presentation friendly IR remote with USB mouse function and laser pointer
Features Texas Instruments 1080p DLP chipset and BrilliantColor technology
Extensive connectivity such as HDMI, DVI, VGA, s-video, composite, RS-232, USB and RJ45
Control projector remotely via network connection or serial commands
Optoma TX1080 DLP Projector Included Items
Optoma TX1080 DLP Projector
AC Power Cord
VGA to VGA Cable
USB Cable
RS-232 Cable
Remote Control
Batteries for Remote
Lens Cap
CD-ROM User’s Manual
Quick Start Card
Warranty Card
Optoma TX1080 DLP Projector Warranty Information
Warranty Length: Three Year Limited, One Year on Lamp
Covers: Parts and Labor
Provider: Optoma
Contact: Optoma Technical Support @ 1.888.289.6786
1.800.814.5410
858.764.8900 Mon-Fri 6AM-4PM PT
