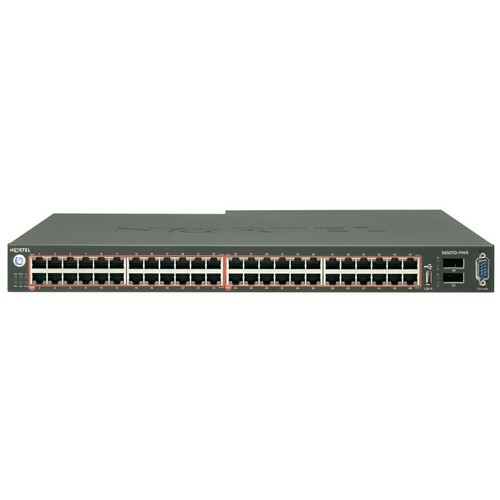

Nortel 5650TD-PWR Ethernet Routing Switch

Nortel al1001e13 e5   Nortel
Save money with a Superwarehouse Gift Card!
SKU # AL1001E13-E5
Availability: No Stock



    Imageicon

    The Nortel Ethernet Routing Switch 5650TD-PWR provides 48 ports 10/100/1000Base-T with 802.3af Power over Ethernet plus 2 XFP uplink ports. The switch includes two built-in FAST stacking ports in a compact 1RU high design incorporating redundant power supplies. It further provides non-blocking wire-speed performance on all ports. The ERS 5650TD-PWR is ideal for wiring closet applications providing desktop connectivity and support for IP-telephony.

    • Product Description: Nortel Ethernet Routing Switch 5650TD-PWR, switch, 48 ports
    • Device Type: Switch, stackable
    • Form Factor: External, 1U
    • Dimensions (WxDxH): 19.2 in x 14.5 in x 1.7 in
    • Ports Qty: 48 x Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
    • Data Transfer Rate: 1 Gbps
    • Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
    • Empty Slots: 2 x XFP
    • Remote Management Protocol: SNMP 2, SNMP, RMON, Telnet, SNMP 3, HTTP, HTTPS
    • Features: Flow control, layer 3 switching, DHCP support, power over Ethernet (PoE), auto-negotiation, BOOTP support, ARP support, trunking, VLAN support, DiffServ support, SNTP support, DHCP snooping, Quality of Service (QoS)
    • Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1v
    • Power Over Ethernet (PoE): Yes
    • Power Redundancy: Yes

    General
    Device Type: Switch, stackable
    Enclosure Type: External, 1U
    Width: 19.2 in
    Depth: 14.5 in
    Height: 1.7 in
    Networking
    Ports Qty: 48 x Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
    Max Units In A Stack: 8
    Data Transfer Rate: 1 Gbps
    Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
    Routing Protocol: RIP-1, RIP-2, IGMP, VRRP, OSPFv2, PIM-SM, IGMPv3
    Remote Management Protocol: SNMP 2, SNMP, RMON, Telnet, SNMP 3, HTTP, HTTPS
    Connectivity Technology: Wired
    Switching Protocol: Ethernet
    MAC Address Table Size: 16K entries
    Features: Flow control, layer 3 switching, DHCP support, power over Ethernet (PoE), auto-negotiation, BOOTP support, ARP support, trunking, VLAN support, DiffServ support, SNTP support, DHCP snooping, Quality o
    Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802
    Expansion / Connectivity
    Expansion Slots Total (Free): 2 ( 2 ) x XFP
    Interfaces: 48 x network / power, Ethernet 10Base-T/100Base-TX/1000Base-T, RJ-45 , 1 x USB, 4 pin USB Type A , 1 x management, console, 9 pin D-Sub (DB-9) , 2 x network stack device
    Miscellaneous
    Encryption Algorithm: AES
    Authentication Method: Secure Shell (SSH), RADIUS, TACACS+, Extensible Authentication Protocol (EAP)
    Compliant Standards: RoHS
    Power
    Power Over Ethernet (PoE): Yes
    Power Device: Power supply, redundant , plug-in module
    Power Redundancy: Yes
    Power Redundancy Scheme: N+1
    Environmental Parameters
    Min Operating Temperature: 32 °F
    Max Operating Temperature: 122 °F
    Humidity Range Operating: 5, 85%
