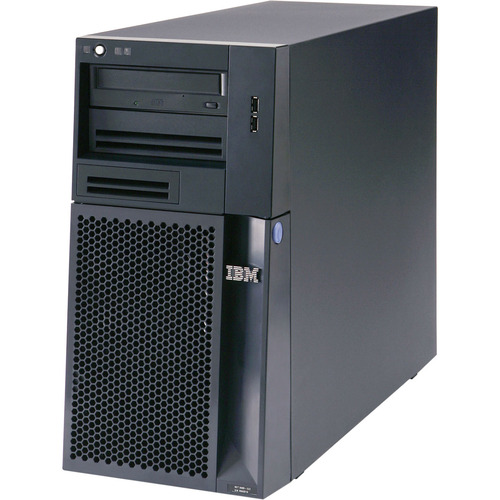

IBM xSeries 206m 8485 3.2 GHz SATA-150 Server

10802435   IBM
Free Shipping on Orders over $99!
SKU # 848520U
Please Call! 1-800-814-5410



Imageicon


The IBM eServer xSeries 206 is the perfect server for small businesses and workgroups. The x206 features the powerful Intel Pentium processor along with the Intel Extended Memory 64 Technology, which offers you a 64-bit computing migration path giving you investment protection and superb performance.
  • Processor: Intel Pentium 4 3.2 GHz
  • Memory: 512 MB (8 GB Maximum), PC-4200 DDR ECC SDRAM, 533 MHz Bus Speed
  • Storage Interface: Serial ATA (Serial ATA-150)
  • Storage: 80 GB SATA Hard Drive
  • Form Factor: Tower Server, 5 U
  • Graphics Controller: ATI ES1000, 16 MB
  • Networking: Gigabit Ethernet Controller (10/100/1000)
  • Warranty: 1 year warranty

Key SpecificationsIBM xSeries 206 8485 3.0 GHz SATA-150 Server
Manufacturer
IBM
Manufacturer Part #848520U
Form Factor Mini Tower, 5 U
ProcessorType1 x Intel Pentium 4 640 3.2 GHz
Data Bus Speed 800 MHz
Cache MemoryTypeL2 Cache
Installed Size 2 MB
Storage Controller
Type1 x Serial ATA, integrated

Controller Interface Type

Serial ATA-150

Channel Quanity

2

RAID Level

RAID 0, RAID 1
Storage Controller (2nd)
Type1 x IDE, integrated
Controller Interface TypeIDE/ATA
RAM
Installed Size512 MB / 8 GB (max)
TechnologyDDR2 SDRAM, ECC
Memory Speed 533 Mhz
Form FactorDIMM 240-pin
Graphics Controller
Graphics Processor / VendorATI ES1000
Video Memory16 MB
HardwareHard Drive80 GB Serial ATA-150 7200 RPM Hard Drive
Floppy Drive None
Optical Drive CD-ROM, IDE
Read Speed48x
MonitorNone
Networking
NetworkingNetwork adapter, integrated

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet
Expansion
Expansion Bays Total (Free)2 ( 1 ) x front accessible, 5.25" x 1/2H
1 ( 1 ) x front accessible, 3.5" x 1/3H
4 ( 3 ) x internal, 3.5" x 1/3H
Expansion Slots Total (Free)4 ( 3 ) x memory, DIMM 184-pin
1 ( 0 ) x processor, Socket 478
2 ( 2 ) x PCI-X / 66 MHz, full-length
2 ( 2 ) x PCI, full-length
Interface Ports

1 x network, Ethernet 10Base-T/100Base-TX/1000Base-T, RJ-45
2 x serial, RS-232, 9 pin D-Sub (DB-9)
1 x parallel, IEEE 1284 (EPP/ECP), 25 pin D-Sub (DB-25)
4 x Hi-Speed USB, 4 pin USB Type A
1 x keyboard, generic, 6 pin mini-DIN (PS/2 style)
1 x mouse, generic, 6 pin mini-DIN (PS/2 style)
1 x display / video, VGA, 15 pin HD D-Sub (HD-15)
Miscellaneous
Features Power-on password, boot without keyboard or mouse, U-Bolt anchoring, boot sequence control, wake on LAN, automatic server restart (ASR)
Compliant Standards ACPI
Operating System Certified
SuSE Linux Enterprise Server, IBM 4690, Microsoft Windows Server 2003 Enterprise Edition, Microsoft Windows Server 2003 Standard Edition, Novell NetWare 6.5, Microsoft Windows Small Business Server 2003, Red Hat Enterprise Linux
Included Software
IBM ServerGuide, IBM Director, ThinkVantage Remote Deployment Manager
Power
Device Type Power Supply
Voltage Required AC 110/230 V ( 50/60 Hz )
Power Provided 400 Watt
Installed Qty 1
Environmental Parameters Min Operating Temperature 50° F
Max Operating Temperature 95° F
Humidity Range Operating 8 - 80%
Sound Emission 51 dB
Dimensions
( W x D x H )
Unit
6.5 in x 19 in x 17.6 in
Weight
Unit

45.9 lbs.

Warranty
1 year Limited Warranty, on parts and labor
