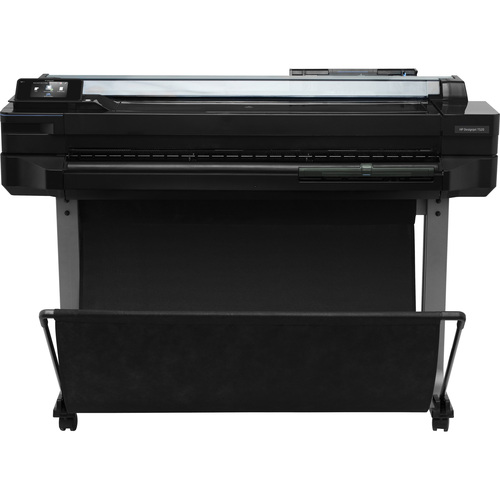

HP DesignJet T520 (36") Plotter

1023383371   HP
Free Shipping on Orders over $99!
SKU # CQ893A#B1K
$2850.00
Add to Cart for Lowest Price

Quantity:

QTY 2 to 5
$2713.09

QTY 6 to 10
$2703.68

QTY 11+
$2694.27

Availability: In-Stock



Imageicon


The HP CQ893A#B1K DesignJet T520 (36") Plotter is HP's most affordable standalone printer for small studios. Print large format CAD drawings in-house with the HP DesignJet T520 Plotter. Achieve high-impact results quickly and easily with fine line and excellent image quality. Process complex files at high speeds, D prints in 35 seconds, thanks to 1 GB RAM and HP-GL/2 technology. Deliver architectural designs, maps, photos, and presentations with consistent, high-quality results.

  • Product Description: HP DesignJet T520 ePrinter, large-format printer, color, ink-jet
  • Printer Type: 36" large-format printer, ink-jet, color
  • Dimensions (WxDxH): 50.9 in x 20.9 in x 36.7 in
  • Weight: 86.4 lbs
  • Inkjet Technology: HP Thermal Inkjet
  • Ink Palette Supported (Colors): 4-ink - cyan, magenta, yellow, pigment black
  • Max Media Size (Standard): A0, ANSI D, Roll (36 in x 150 ft)
  • Max Media Size (Custom): 36 in x 18 in
  • Print Speed: Up to 0.6 min/page, black draft, ANSI D (22 in x 34 in), Up to 0.6 min/page, color draft, ANSI D (22 in x 34 in)
  • Max Resolution ( B&W ): 2400 dpi x 1200 dpi
  • Max Resolution ( Color ): 2400 dpi x 1200 dpi
  • Interface: USB, 802.11, Ethernet 10/100Base-TX
  • Preview Screen Size: 4.3"
  • RAM Installed ( Max ): 1 GB ( 1 GB )
  • Language Simulation: PCL 3, HP RTL, CALS G4, HP GL/2
  • Media Type: Plain paper, glossy paper, coated paper, heavy-weight coated paper, photo paper, semi-gloss photo paper, matte film, glossy photo paper, vellum paper, bond paper, recycled paper, satin photo paper, film
  • Networking: Print server, Ethernet, Fast Ethernet, IEEE 802.11
  • Printer Features: HP ePrint
  • Power: AC 120/230 V
  • Manufacturer Warranty: 1 year warranty

General
Printer Type: 36" large-format printer, ink-jet, color
Width: 50.9 in
Depth: 20.9 in
Height: 36.7 in
Weight: 86.4 lbs
Printer
Inkjet Technology: HP Thermal Inkjet
Ink Palette Supported (Colors): 4-ink, cyan, magenta, yellow, pigment black
Minimum Ink Droplet Size: 12 pl (black), 5.5 pl (color)
Ink Cartridge Configuration: 4 cartridges (1 each: cyan, magenta, yellow, black)
Print Speed: Up to 0.6 min/page, black draft, ANSI D (22 in x 34 in)
Up to 0.6 min/page, color draft, ANSI D (22 in x 34 in)
Built-in Devices: Touch screen, cutter
Preview Screen Size: 4.3"
Connectivity Technology: Wireless, wired
Interface: USB, 802.11, Ethernet 10/100Base-TX
Max Resolution ( B&W ): 2400 dpi x 1200 dpi
Max Resolution ( Color ): 2400 dpi x 1200 dpi
Language Simulation: PCL 3, HP RTL, CALS G4, HP GL/2
Printer Features: HP ePrint
RAM
RAM Installed ( Max ): 1 GB / 1 GB (max)
Media Handling
Media Type: Plain paper, glossy paper, coated paper, heavy-weight coated paper, photo paper, semi-gloss photo paper, matte film, glossy photo paper, vellum paper, bond paper, recycled paper, satin photo paper, film
Min Media Size (Custom): 8.25 in
Max Media Size (Custom): 36 in x 18 in
Media Sizes: A2 (16.5 in x 23.4 in), A1 (23.4 in x 33.1 in), A0 (33.1 in x 46.8 in), ANSI D (22 in x 34 in), Roll (36 in x 150 ft)
Media Thickness Range: Up to 0.0012 in
Media Weight: 60 g/m2 - 280 g/m2
Networking
Networking: Print server
Connectivity Technology: Wireless, wired
Data Link Protocol: Ethernet, Fast Ethernet, IEEE 802.11
Compliant Standards: Wi-Fi CERTIFIED
Expansion / Connectivity
Connections: 1 x Hi-Speed USB, 4 pin USB Type B
1 x network, Ethernet 10Base-T/100Base-TX - RJ-45
Miscellaneous
Included Accessories: Stand
Compliant Standards: FCC Class B certified, CSA, VCCI Class B ITE, GOST, PSB, R&TTE, RoHS, EN 60950-1, ICES Class B, CCC Class B, WEEE, REACH, KCC Class A, LVD, EuP, EMC Class B
Power
Power Device: Power supply, internal
Voltage Required: AC 120/230 V
Frequency Required: 50/60 Hz
Power Consumption Operational: 35 Watt
Power Consumption Stand by / Sleep: 0.3 Watt
Software / System Requirements
Software Included: Drivers & Utilities
OS Required: Linux, Microsoft Windows Server 2008 R2, Apple MacOS X 10.6, Microsoft Windows 7 Home Premium (32/64 bits), Microsoft Windows Vista Business (32/64 bits), Microsoft Windows Vista Home Premium (32/64 bits), Microsoft Windows Vista Ultimate (32/64 bits), Microsoft Windows 7 Professional (32/64 bits), Microsoft Windows 7 Ultimate (32/64 bits), Microsoft Windows XP Professional 64-bit Edition SP3, Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Apple MacOS X 10.7 Lion, Microsoft Windows XP Home Edition x64 Edition SP3, Citrix XenServer, Citrix XenApp, Apple MacOS X 10.8
System Requirements Details: Windows 7/Vista, 1 GHz, RAM 1 GB, HD 1 GB
Windows XP SP3, Pentium, 1 GHz, RAM 512 MB, HD 1 GB
MacOS X 10.6, RAM 1 GB, HD 2 GB
Environmental Standards
ENERGY STAR Qualified: Yes
Manufacturer Warranty
Service & Support: 1 year warranty
Service & Support Details: Limited warranty, 1 year
Environmental Parameters
Min Operating Temperature: 41 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 20, 80%
Sound Emission (Operating): 48 dBA
