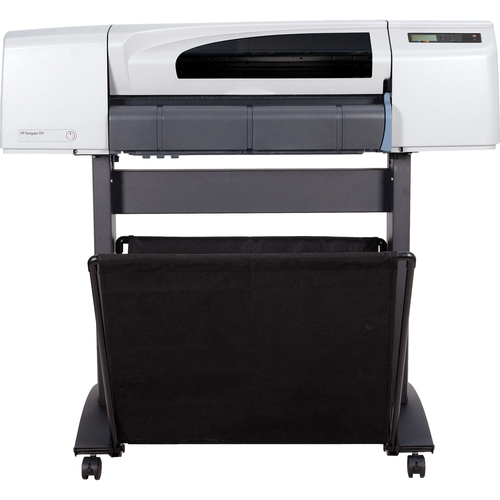

HP DesignJet 510 (24") Plotter

1012510891   HP
Free Shipping on Orders over $99!
SKU # CH336A#B1K
Please Call! 1-800-814-5410



Imageicon


The HP CH336A#B1K DesignJet 510 (24") Plotter is HP's most affordable standalone printer for small studios. Print large format CAD drawings in-house with the HP CH336A#B1K Plotter. Achieve high-impact results quickly and easily with fine line and excellent image quality. An ideal choice for technical users (including AEC, MCAD, GIS, and GPP) in workgroups of up to 3 people who need a professional printing solution to produce high quality, large format technical CAD drawings. Save the expense, hassle, and time it takes to outsource large-format prints and start doing it yourself.

  • Product Description: HP DesignJet 510, large-format printer, color, ink-jet
  • Printer Type: 24" large-format printer, ink-jet, color
  • Form Factor: Stationary
  • Dimensions (WxDxH): 49.3 in x 18.5 in x 13.7 in
  • Weight: 85.3 lbs
  • Inkjet Technology: HP Thermal Inkjet
  • Ink Palette Supported (Colors): 4-ink, cyan, magenta, yellow, black
  • Max Media Size (Standard): Roll A1 (24 in x 150 ft), 24 in x 74.7 in
  • Max Media Size (Custom): 24 in x 74.7 in
  • Print Speed: Up to 3.5 min/page
  • Max Resolution ( B&W ): 2400 dpi x 1200 dpi
  • Max Resolution ( Color ): 2400 dpi x 1200 dpi
  • Interface: Parallel, USB
  • RAM Installed ( Max ): 160 MB ( 416 MB )
  • Language Simulation: PCL 3, HP RTL, HP GL/2
  • Media Type: Plain paper, coated paper, heavy-weight coated paper, semi-gloss photo paper, tracing paper, vinyl, high-gloss photo paper, translucent paper, satin paper, banners, vellum paper, canvas paper, bond paper, film, adhesive vinyl
  • Power: AC 120/230 V
  • System Requirements: Microsoft Windows 2000, Microsoft Windows XP, Microsoft Windows Server 2003, Apple MacOS X 10.3, Apple MacOS X 10.4, Microsoft Windows Vista, Apple MacOS X 10.5
  • Environmental Standards: EPA Energy Star
  • Manufacturer Warranty: 1 year warranty

General
Printer Type: 24" large-format printer, ink-jet, color
Form Factor: Stationary
Width: 49.3 in
Depth: 18.5 in
Height: 13.7 in
Weight: 85.3 lbs
Printer
Inkjet Technology: HP Thermal Inkjet
Ink Palette Supported (Colors): 4-ink, cyan, magenta, yellow, black
Minimum Ink Droplet Size: 18 pl (black), 4 pl (color)
Ink Cartridge Configuration: 4 cartridges (1 each: cyan, magenta, yellow, black)
Print Speed: Up to 3.5 min/page
Built-in Devices: Cutter
Connectivity Technology: Wired
Interface: Parallel, USB
Max Resolution ( B&W ): 2400 dpi x 1200 dpi
Max Resolution ( Color ): 2400 dpi x 1200 dpi
Language Simulation: PCL 3, HP RTL, HP GL/2
RAM
RAM Installed ( Max ): 160 MB / 416 MB (max)
Media Handling
Media Type: Plain paper, coated paper, heavy-weight coated paper, semi-gloss photo paper, tracing paper, vinyl, high-gloss photo paper, translucent paper, satin paper, banners, vellum paper, canvas paper, bond pa
Max Media Size (Custom): 24 in x 74.7 in
Media Sizes: A2 (16.5 in x 23.4 in), A1 (23.4 in x 33.1 in), Roll A1 (24 in x 150 ft), 24 in x 74.7 in, A1 Plus (24 in x 36 in)
Media Feeder(s): Manual load, 1 rolls, Roll A1 (24 in x 150 ft)
Expansion / Connectivity
Expansion Slots Total (Free): 1 ( 1 ) x EIO , Memory
Connections: 1 x parallel, IEEE 1284 (EPP/ECP), 36 pin Centronics , 1 x USB, 4 pin USB Type B
Miscellaneous
Included Accessories: Spindle
Consumables Included: 4 x printhead ( yellow/cyan/magenta/black ) , 4 x ink cartridge ( yellow/cyan/magenta/black )
Compliant Standards: CSA, BSMI, GOST, CCIB, NOM, PCBC, VCCI Class A ITE, CCEE, EMC, DOC, PSB, MIC, MOC, FCC, RoHS
Power
Power Device: Power supply, internal
Voltage Required: AC 120/230 V
Frequency Required: 50/60 Hz
Power Consumption Operational: 150 Watt
Power Consumption Stand by / Sleep: 17 Watt
Software / System Requirements
Software Included: Drivers & Utilities, HP Instant Printing Utility
OS Required: Microsoft Windows 2000, Microsoft Windows XP, Microsoft Windows Server 2003, Apple MacOS X 10.3, Apple MacOS X 10.4, Microsoft Windows Vista, Apple MacOS X 10.5
Environmental Standards
EPA Energy Star Compliant: Yes
Manufacturer Warranty
Service & Support: 1 year warranty
Service & Support Details: Limited warranty, 1 year, on-site, response time: next business day
Environmental Parameters
Min Operating Temperature: 41 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 20, 80%
Sound Emission (Operating): 65 dBA
