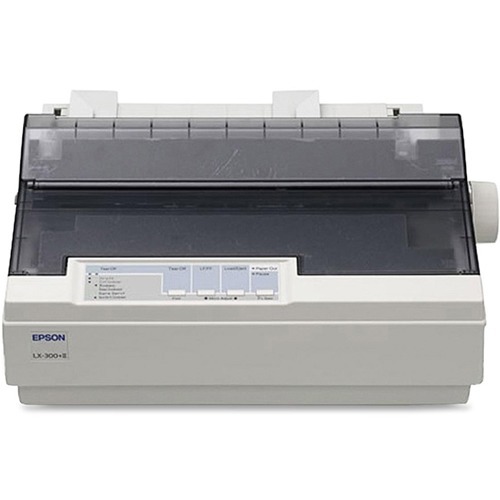

The EPSON LX-300+ prints up to 330 characters per second (12 characters per inch) in high-speed draft mode and handles up to 5-part forms with ease. With its narrow format and powerful 9-pin technology, this printer handles your inventory reports, spreadsheets, receipts, invoices, packing slips, check runs and customer shipping labels. Plus, its compact size makes it optimal for that busy workroom with limited counter space. At 49 dB(A), this compact, userfriendly unit is also quieter than most impact printers.
Features
Print Speed: 330 cps
Paper Handling: Up to 11.7" Single Sheet Page Width, 10" Continuous Page Width
Features: 9 Pin Print Head, Narrow Carriage, Bottom Paper Loading
Epson LX-300+ Dot Matrix Printer Specifications
Part # C294001
Key Specifications
C294001
Manufacturer
Epson
Manufacturer Part #
C294001
Device Type
Dot Matrix
Printhead
9-pin
Print Speed
High Speed Draft
300 cps
Utility Speed
225 cps
Near Letter Quality Speed
56 cps
Resolution
240 dpi x 216 dpi
Connectivity
Ports
Serial and Parallel
Optional Network Ports
EpsonNet - Print server 10Base-T, 100Base-TX (Part #: C823781)
Emulations
EPSON ESC/P 2, IBM 2380 Plus
Fonts and Bar Codes
3 x bitmapped 8 x barcode
Memory
8 KB
Paper Handling
Input
Friction feed (rear), Push tractor feed (rear), Push & pull tractor feed (rear), Pull tractor feed (rear, bottom), Manual insertion (rear in, top out), Cut sheet feeder (rear in, top out), Push tractor (rear in, top out), Pull tractor (rear or bottom in, top out)
Feed Rate
88 milliseconds per 1/6", 3"/sec continuous feed
Number of Copies
1 original + 4 copies
Thickness
Maximum thickness single sheets .0055" Maximum thickness multipart forms .015"
Paper Size
Cut Sheets: Width 3.9" to 10.1", Length 3.9" to 14.3" Continuous Paper: Width 4" to 10", Length 22" maximum one page Envelopes: No. 6, No. 10 Labels: Width 4" to 10", Length 4" to 22" Roll Paper: Width 8.5"
Monthly Duty Cycle
6,000 Sheets The duty cycle is the maximum recommended number of printed pages per month to ensure long printer life.
Misc. Features
Power Requirements
AC 110 V ( 50/60 Hz )
Noise Levels
49 dB(A)
Temperature
41 °F - 95 °F
Humidity
30 - 80%
Supplies
Ribbon
This ribbon are designed specifically for the 300LX: Ribbon (Part #:8750 )
Other Supplies
Epson Color Ribbon (Part #: S015073)
Dimensions (H X W X D)
Unit
6.3" x 14.4" x 10.8"
Weight
Unit
9.7 lbs
System Requirements
PC
Microsoft DOS, Microsoft Windows 3.x/95/98, Microsoft Windows NT 3.51 or later, Microsoft Windows 2000
Warranty
Two year limited warranty in the U.S. and Canada. Automated Technical Support 800-922-8911. This warranty does not include replacement of consumables such as toner. Super Warehouse offers a wide array of extended warranties which can add 2 to 4 years of coverage.
Includes in the Box
LX-300+ Printer Ribbon User Guide Drivers (CD)
**Cable Not Included
Epson LX-300+ Dot Matrix Printer Features
Prints up to 330 characters per second (12 characters per inch) in high-speed draft mode and handles up to 5-part forms with ease.
Narrow format and powerful 9-pin technology,
At 49 dB(A), this compact, userfriendly unit is also quieter than most impact printers.
Optional EPSONNet external print server with 10Base-T and 100Base-Tx connectivity for fully networked operation.
Multiple paper paths for application versatility.
Epson LX-300+ Dot Matrix Printer Included Items
Epson LX-300+ Dot Matrix Printer
Ribbon
User Guide
Drivers CD
Epson LX-300+ Dot Matrix Printer Warranty Information
Warranty Length: Manufacturer Two Year Limited Warranty
Details: Covers parts and labor. This warranty does not include replacement of consumables such as toner
Contact: Epson Technical Support at 1-800-922-8911 or 1-562-276-4322
